SSANGYONG KYRON 2010.01 Manual page 521

09-10
7810-01

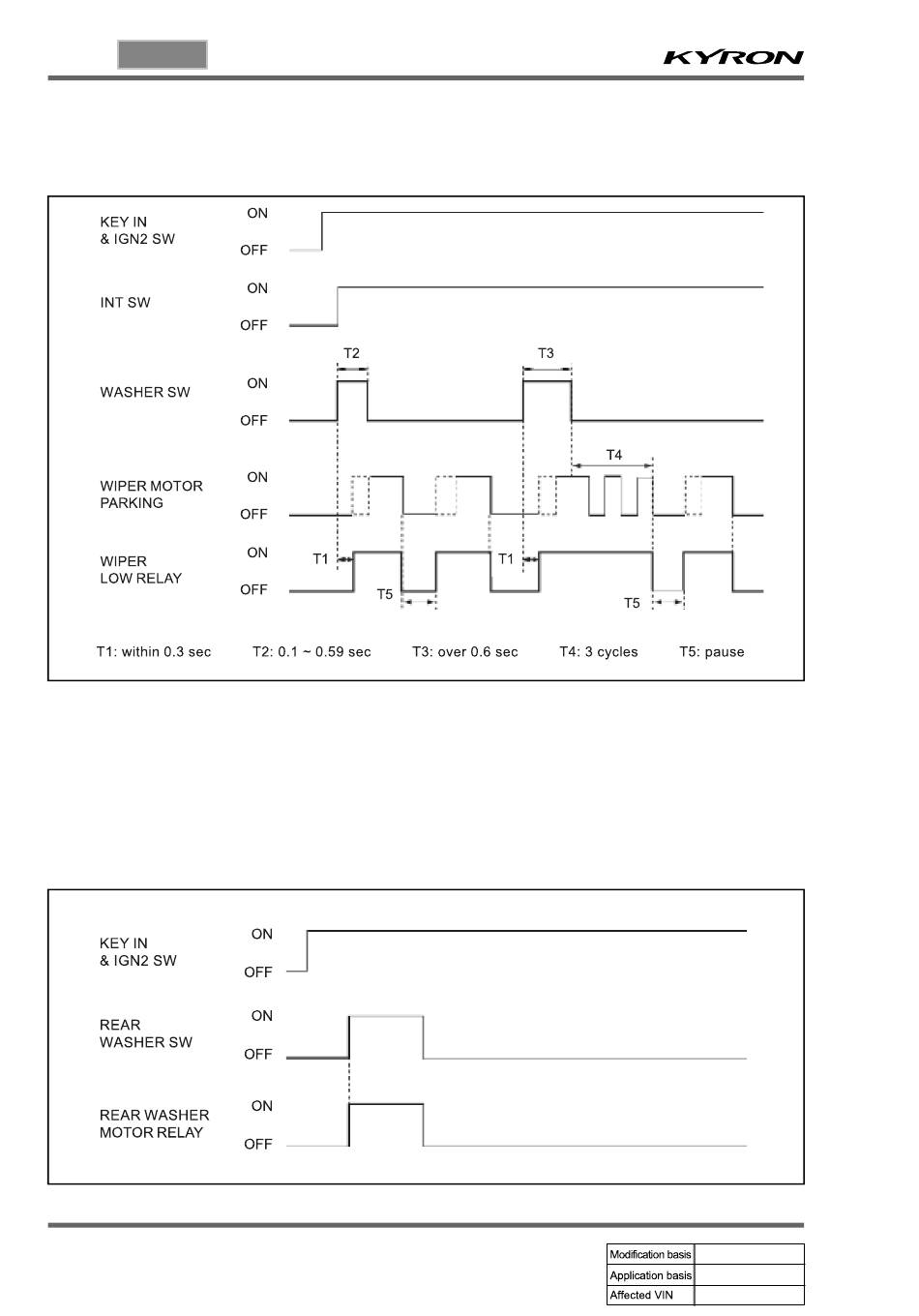

- When the washer switch is ON for more than 0.6 seconds during the wiper operation by
the INT switch, the operation in step (2) is performed. When it is ON for a certain period of
time (0.1 to 0.59 seconds), the operation in step (1) is performed.
(2) Rear Washer Motor Control
- When the rear washer switch is turn on with the ignition switch "ON", the rear washer motor
relay output is activated from the time when the rear washer switch is turned on, and it is
deactivated when the rear washer switch is turned off.
- It cannot be activated while the front washer switch or the auto washer and wiper (AFW:
Advanced Fast Washer) is in operation.
WIPER
KYRON 2010.01
