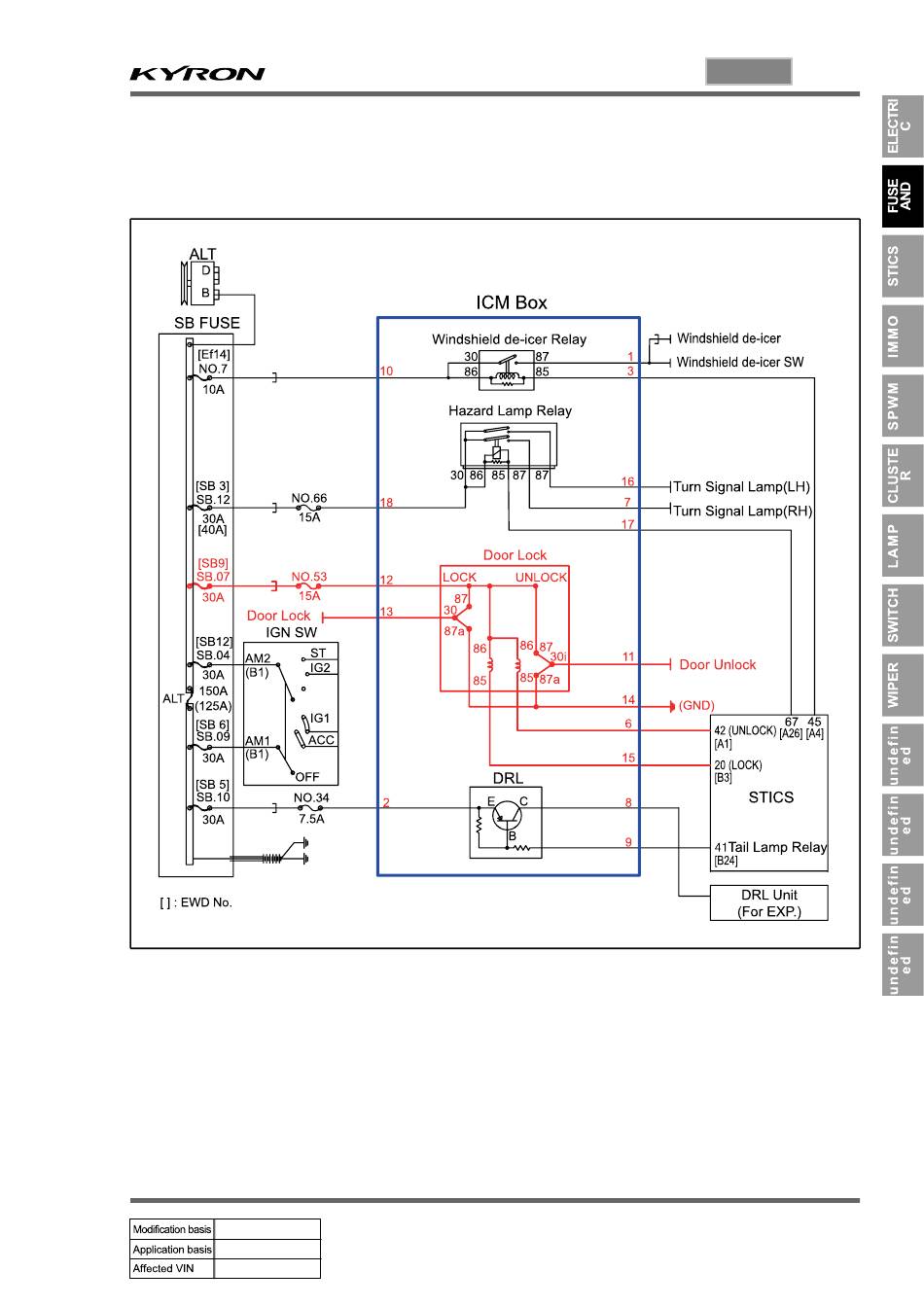

3) Operating Process by Power Supply of ICM Box
(1) Door lock relay
As the ICM box is supplied with power from the fuse (12-pin) and STICS (6-pin, 15-pin), it
operates the door actuator (11-pin, 13-pin) through its door lock relay to lock/unlock the door.
In order to check the operation of the relay, measure the voltage at the connector of the ICM
box and check the output through the ICM box after operating the corresponding door.
Of course, the components for the corresponding system should be checked in advance.
