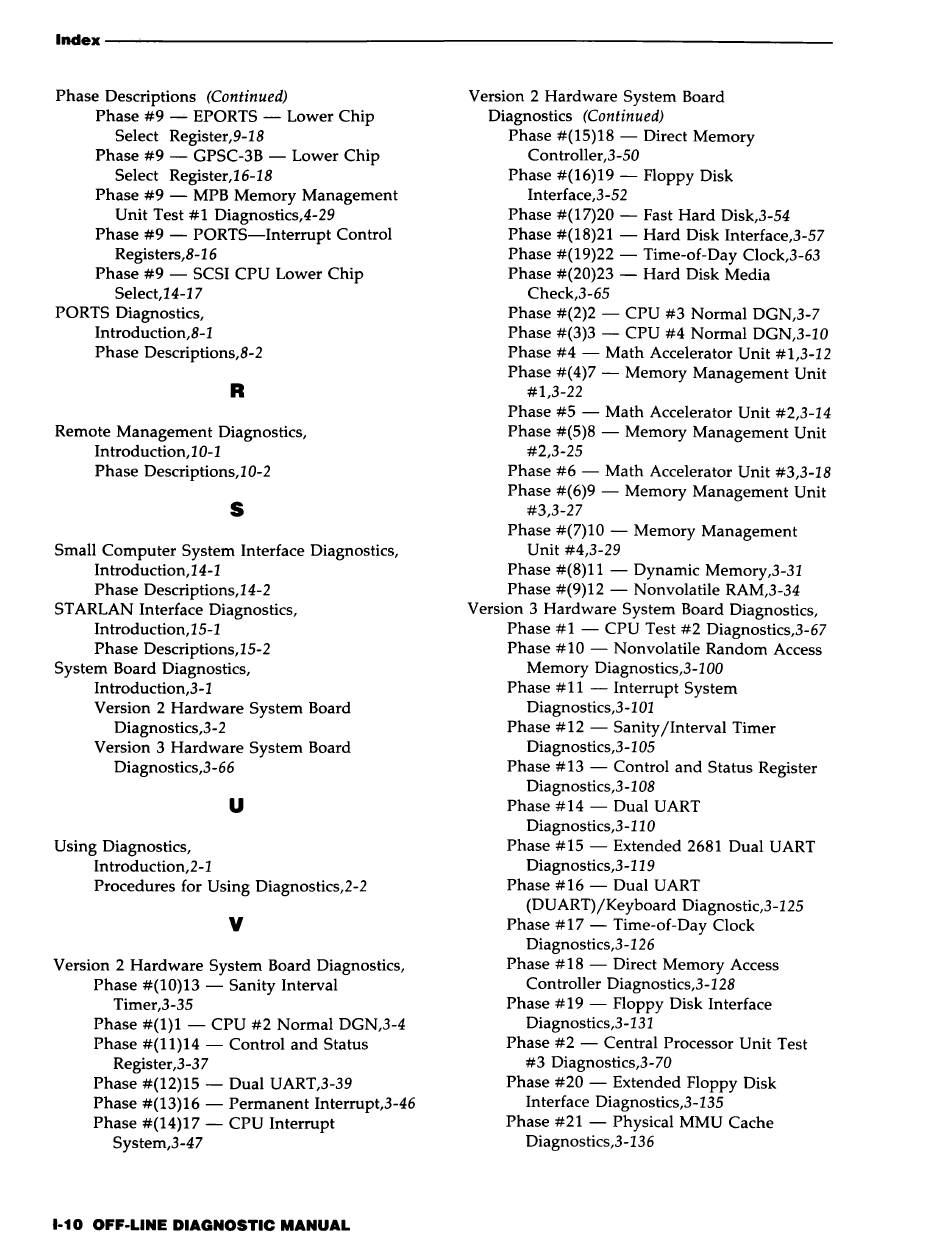

AT&T 3B2 Off-Line Diagnostic Manual page 734

Index--~------------------------------------------------------------------------
Phase Descriptions (Continued)
Phase #9
~
EPORTS - Lower Chip
Select Register,9-18
Phase #9 - GPSC-3B - Lower Chip
Select Register,16-18
Phase #9 - MPB Memory Management
Unit Test #1 Diagnostics,4-29
Phase #9 - PORTS-Interrupt Control
Registers,8-16
Phase #9 - SCSI CPU Lower Chip
Select,14-17
PORTS Diagnostics,
Introduction,8-1
Phase Descriptions,8-2
R
Remote Management Diagnostics,
Introduction, 1 0-1
Phase Descriptions,10-2
5
Small Computer System Interface Diagnostics,
Introduction,14-1
Phase Descriptions,14-2
ST ARLAN Interface Diagnostics,
Introduction, 15-1
Phase Descriptions,15-2
System Board Diagnostics,
Introduction,3-1
Version 2 Hardware System Board
Diagnostics,3-2
Version 3 Hardware System Board
Diagnostics,3-66
Using Diagnostics,
Introduction,2-1
u
Procedures for Using Diagnostics,2-2
v
Version 2 Hardware System Board Diagnostics,
Phase #(10)13 - Sanity Interval
Timer,3-35
Phase #(1)1 - CPU #2 Normal DGN,3-4
Phase #(11)14 - Control and Status
Register,3-37
Phase #(12)15 - Dual UART,3-39
Phase #(13)16 - Permanent Interrupt,3-46
Phase #(14)17 - CPU Interrupt
System,3-47
1-10 OFF-LINE DIAGNOSTIC MANUAL
Version 2 Hardware System Board
Diagnostics
(Continued)
Phase #(15)18 - Direct Memory
Controller,3-50
Phase #( 16) 19 - Floppy Disk
Interface,3-52
Phase #(17)20 - Fast Hard Disk,3-54
Phase #(18)21 - Hard Disk Interface,3-57
Phase #(19)22 - Time-of-Day Clock,3-63
Phase #(20)23 - Hard Disk Media
Check,3-65
Phase #(2)2 - CPU #3 Normal DGN,3-7
Phase #(3)3 - CPU #4 Normal DGN,3-10
Phase #4 - Math Accelerator Unit #1,3-12
Phase #(4)7 - Memory Management Unit
#1,3-22
Phase #5 - Math Accelerator Unit #2,3-14
Phase #(5)8 - Memory Management Unit
#2,3-25
Phase #6 - Math Accelerator Unit #3,3-18
Phase #(6)9 - Memory Management Unit
#3,3-27
Phase #(7)10 - Memory Management
Unit #4,3-29
Phase #(8)11 - Dynamic Memory,3-31
Phase #(9)12 - Nonvolatile RAM,3-34
Version 3 Hardware System Board Diagnostics,
Phase #1 - CPU Test #2 Diagnostics,3-67
Phase #10 - Nonvolatile Random Access
Memory Diagnostics,3-100
Phase #11 - Interrupt System
Diagnostics,3-101
Phase #12 - Sanity jInterval Timer
Diagnostics,3-105
Phase #13 - Control and Status Register
Diagnostics,3-108
Phase #14 - Dual UART
Diagnostics,3-110
Phase #15 - Extended 2681 Dual UART
Diagnostics,3-119
Phase #16 - Dual UART
(DUART)jKeyboard Diagnostic,3-125
Phase #17 - Time-of-Day Clock
Diagnostics,3-126
Phase # 18 - Direct Memory Access
Controller Diagnostics,3-128
Phase #19 - Floppy Disk Interface
Diagnostics,3-131
Phase #2 - Central Processor Unit Test
#3 Diagnostics,3-70
Phase #20 - Extended Floppy Disk
Interface Diagnostics,3-135
Phase #21 - Physical MMU Cache
Diagnostics,3-136
