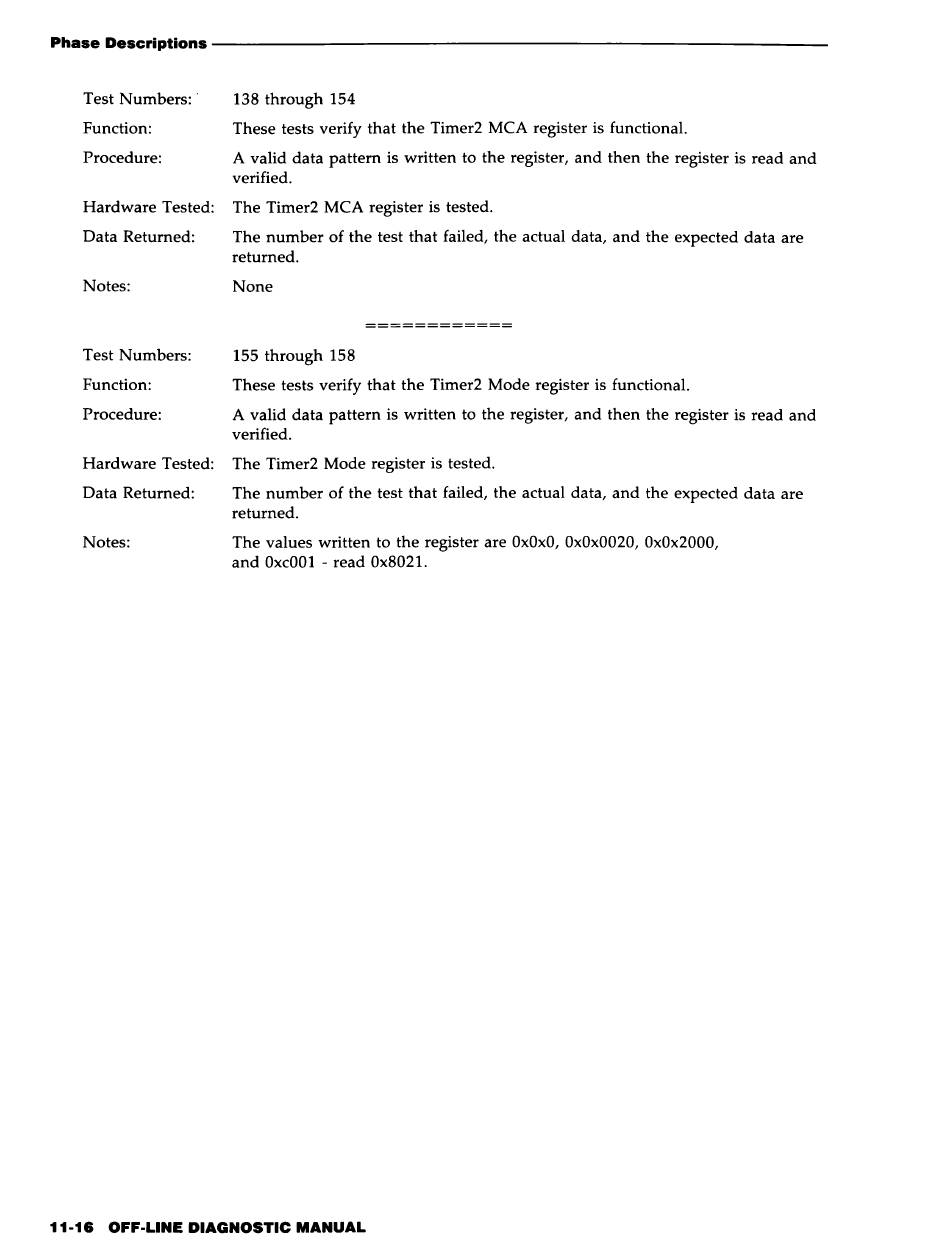

Phase Descriptions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Test Numbers: '
138 through 154
Function:
These tests verify that the Timer2 MCA register is functional.
Procedure:
A valid data pattern is written to the register, and then the register is read and
verified.
Hardware Tested:
The Timer2 MCA register is tested.
Data Returned:
The number of the test that failed, the actual data, and the expected data are
returned.
Notes:
None
Test Numbers:
155 through 158
Function:
These tests verify that the Timer2 Mode register is functional.
Procedure:
A valid data pattern is written to the register, and then the register is read and
verified.
Hardware Tested:
The Timer2 Mode register is tested.
Data Returned:
The number of the test that failed, the actual data, and the expected data are
returned.
Notes:
The values written to the register are OxOxO, OxOx0020, OxOx2000,
and OxcOOl - read Ox8021.
11-16 OFF-LINE DIAGNOSTIC MANUAL
