Summary of Contents for AT&T Unix PC
- Page 2 '·...

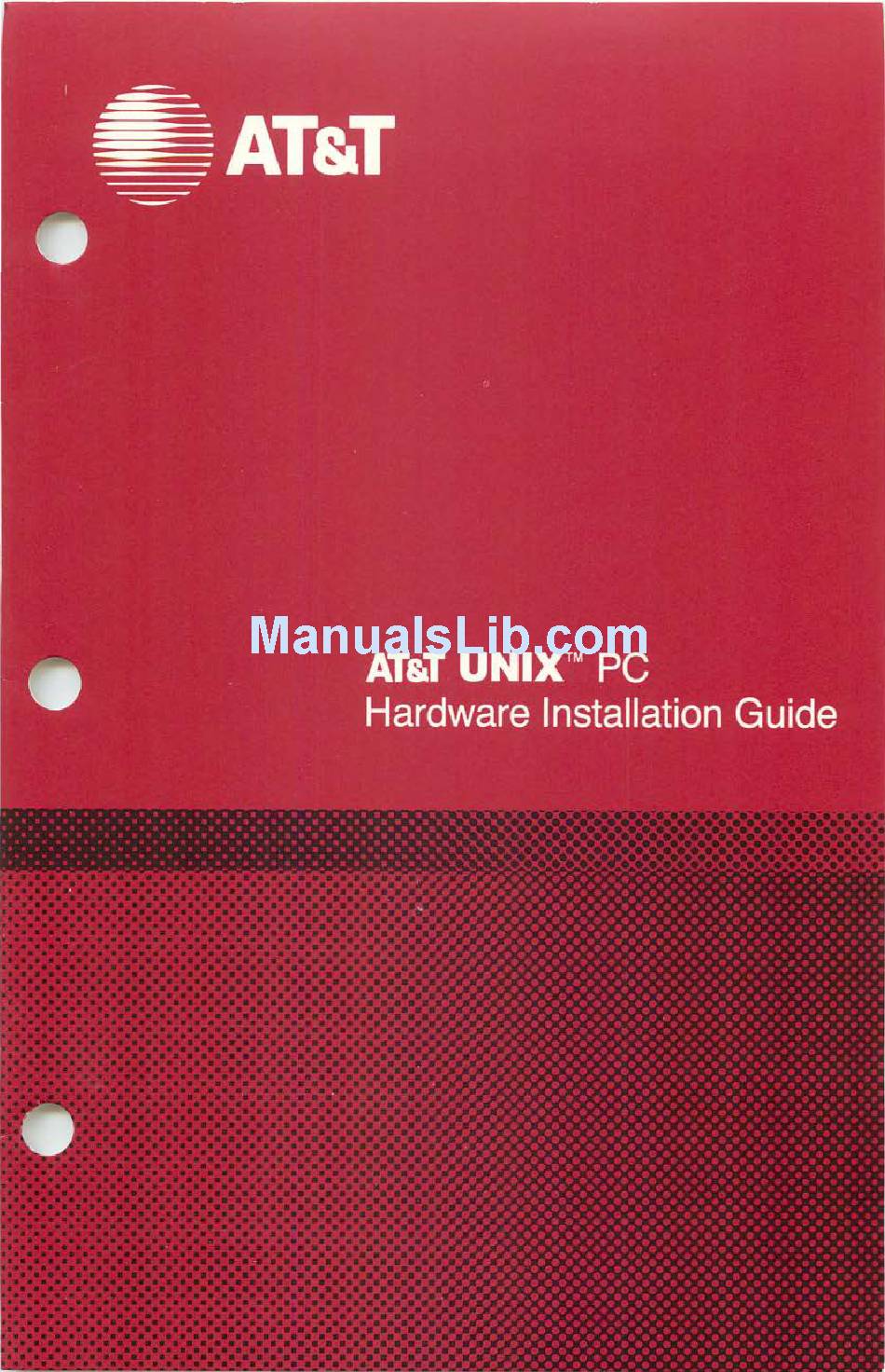

- Page 3 999-750-40015 ATs.T ATs.T UNIX™ PC Hardware Installation Guide : : : .: . : . : . : . : . : . : . : . :: : : : · � � - � · � · · : · : · : · : · : · : · : · : · : · : · ·.
- Page 4 ©1985 AT&T All Rights Reserved Printed in USA NOTICE The information in this document is subject to change without notice. AT&T assumes no responsibility for any errors that may appear in this document. Printed in September, 1985...
-
Page 5: Table Of Contents
Unpacking the UNIX PC Before You Begin Unpacking the Shipping Carton Unpacking the Keyboard Box Checking Your Equipment Installing the UNIX PC Hardware Installing the Mouse Installing the Keyboard Attaching the Power Cord Attaching Your Telephone Removing the Floppy Shipping Card... - Page 6 ·. "-..)
-
Page 7: Introduction
This section shows you how to unpack the UNIX shipping carton and prepare the UNIX PC for installation. Installing the UNIX PC Hardware This section shows you how to connect the parts of your UNIX PC together and prepare the UNIX for software installation. - Page 8 Introduction...
-
Page 9: Unpacking The Unix Pc
Unpacking the UN IX PC This section of the Hardware Installation Guide shows you how to unpack the UN IX PC shipping carton. You may find it easier if you have someone help you move the shipping carton and unpack the UN IX Before You Begin Before you begin to unpack the shipping carton, you... -
Page 10: Unpacking The Shipping Carton
Unpacking To unpack the UNIX PC shipping carton: Place the shipping carton as shown in the following illustration: Pull out the cardboard box that contains the keyboard and accessories, and set it aside. - Page 11 Unpacking Slide the UNIX PC main unit out of the shipping carton by placing a hand on both sides of the terminal and pulling it straight out. You may find it easier if one person holds the box while the other pulls the UNIX PC main unit out of the shipping carton.
-
Page 12: Unpacking The Keyboard Box
Unpacking Unpacking the Keyboard Box To unpack the keyboard box: Open the cardboard box by placing your fingers into the finger tabs and lifting up. Ke y board (with ke y board cable attached) Mouse Box Modular Telephone Cords Lift the keyboard out of the cardboard box. Remove the packing from the sides of the keyboard and remove the plastic cover. -
Page 13: Checking Your Equipment
Unpacking Checking Your Equipment After replacing all of your shipping foam and packing back into the shipping carton, gather all your equipment and accessories in one location. Use the following checklist to make sure you have all the required equipment: UN IX PC Main Unit UN IX PC Keyboard and Attached Cord Styrofoam Mouse Box... - Page 14 Unpacking...
-
Page 15: Installing The Unix Pc Hardware
Installing UNIX PC Hardware This section of the you how to set up your UNIX PC hardware. Installing the Mouse Take the mouse out of the styrofoam box. Turn the mouse over and remove the ball cover latch as shown below:... -
Page 16: Installing The Keyboard
Installing Hardware Installing the Keyboard Locate your keyboard. Look at the keyboard cord on the back of the keyboard. Notice that one end of the cord is attached to the keyboard. Turn your keyboard upside-down and attach the mouse cord as shown in the following illustration: Mouse Connector NOTE:... - Page 17 Installing Hardware Turn the keyboard over. Plug the loose end of the keyboard cord into the socket located in the upper right-hand corner of the keyboard storage pad, as shown in the following illustration: CAUTION: Do not unplug the keyboard or mouse cord when POWER IS ON.
-
Page 18: Attaching The Power Cord
Installing Hardware Attaching the Power Cord Turn the UNIX PC around enough so you can easily see the rear of the main unit. Check to make sure the Power Switch is in the "O" (OFF) position. Power Switch Power Cord Receptacle Plug the black power cord firmly into its receptacle located in the back of the workstation. -
Page 19: Attaching Your Telephone
Installing Hardware hing Your Telephone Locate the two modular telephone cords supplied with your UNIX PC, and remove their plastic covers. Locate your modular telephone jack. Disconnect your telephone line from the modular jack. Plug the loose end of the disconnected modular cord into the EBQNE connector on the back of UNIX PC, as shown in the following... - Page 20 NOTE: You can still use your telephone normally as you did before attaching it to the UNIX PC. If you want to use your telephone with the UNIX PC Telephone Manager software, you must follow the instructions in the �...
-
Page 21: Removing The Floppy Shipping Card Ls
Hardware Installing Removing the Eloppy Shipping Card When your UNIX PC is shipped, it contains a shipping card in the floppy disk drive. This shipping card protects the floppy disk drive during shipment. Before you can proceed with the software installation you must remove the shipping card from the floppy disk drive. -
Page 22: Adjusting The Screen Brightness
Install�ng Hardware Adjust�ng the Screen Br�ghtness To adjust the screen brightness, turn the br�ghtness dial toward the front or rear of the UNIX To adjust the screen brightness: Locate the brightness dial under the left-hand side of the console screen, as shown in the following illustration: the brightness, turn the dial increase... -
Page 23: Positioning The Console Screen
Installing Hardware Positioning the Console Screen Your console screen tilts forward or back and swivels to the left or right. The following illustration shows you how to position the console screen. - Page 24 Insta11ing Hardware...
