Version 2 Hardware System Board Diagnostics - - - - - - - - - - - - - - - - - - - - -

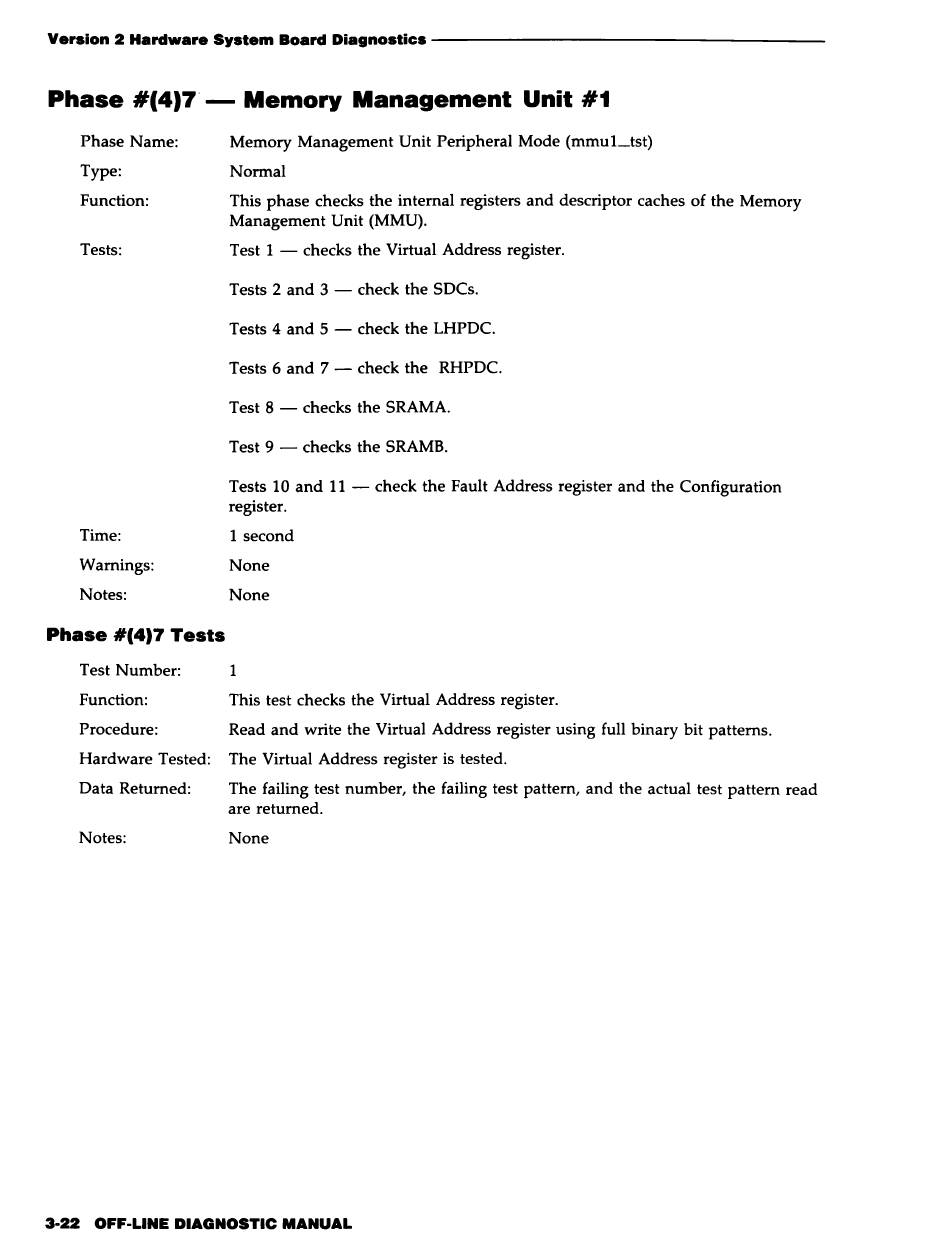

Phase #(4)7' - Memory Management Unit #1
Phase Name:
Type:
Function:
Tests:
Time:
Warnings:
Notes:
Phase #(4)7 Tests
Memory Management Unit Peripheral Mode (mmu l_tst)
Normal
This phase checks the internal registers and descriptor caches of the Memory
Management Unit (MMU).
Test 1 - checks the Virtual Address register.
Tests 2 and 3 - check the SDCs.
Tests 4 and 5 - check the LHPDC.
Tests 6 and 7 - check the RHPDC.
Test 8 - checks the SRAMA.
Test 9 - checks the SRAMB.
Tests 10 and 11 - check the Fault Address register and the Configuration
register.
1 second
None
None
Test Number: 1
Function: This test checks the Virtual Address register.
Procedure: Read and write the Virtual Address register using full binary bit patterns.
Hardware Tested: The Virtual Address register is tested.
Data Returned: The failing test number, the failing test pattern, and the actual test pattern read
are returned.
Notes: None
3-22 OFF-LINE DIAGNOSTIC MANUAL
