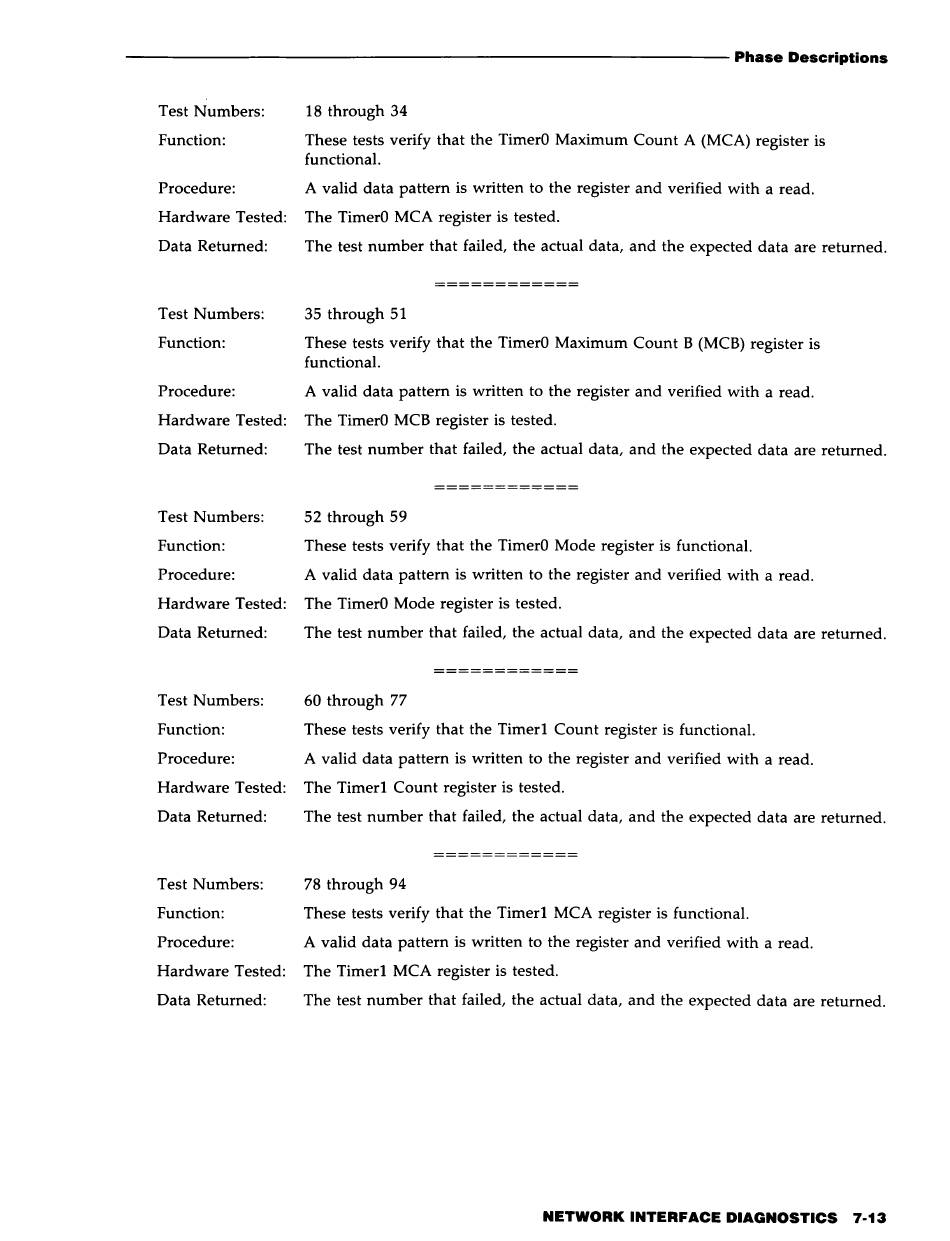

AT&T 3B2 Off-Line Diagnostic Manual page 341

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Phase Descriptions
Test Numbers: 18 through 34
Function: These tests verify that the TimerO Maximum Count A (MCA) register is
functional.
Procedure: A valid data pattern is written to the register and verified with a read.
Hardware Tested: The TimerO MCA register is tested.
Data Returned: The test number that failed, the actual data, and the expected data are returned.
Test Numbers: 35 through 51
Function: These tests verify that the TimerO Maximum Count B (MCB) register is
functional.
Procedure: A valid data pattern is written to the register and verified with a read.
Hardware Tested: The TimerO MCB register is tested.
Data Returned: The test number that failed, the actual data, and the expected data are returned.
Test Numbers: 52 through 59
Function: These tests verify that the TimerO Mode register is functional.
Procedure: A valid data pattern is written to the register and verified with a read.
Hardware Tested: The TimerO Mode register is tested.
Data Returned: The test number that failed, the actual data, and the expected data are returned.
Test Numbers: 60 through 77
Function: These tests verify that the Timerl Count register is functional.
Procedure: A valid data pattern is written to the register and verified with a read.
Hardware Tested: The Timerl Count register is tested.
Data Returned: The test number that failed, the actual data, and the expected data are returned.
Test Numbers: 78 through 94
Function: These tests verify that the Timerl MCA register is functional.
Procedure: A valid data pattern is written to the register and verified with a read.
Hardware Tested: The Timerl MCA register is tested.
Data Returned: The test number that failed, the actual data, and the expected data are returned.
NETWORK INTERFACE DIAGNOSTICS 7-13
