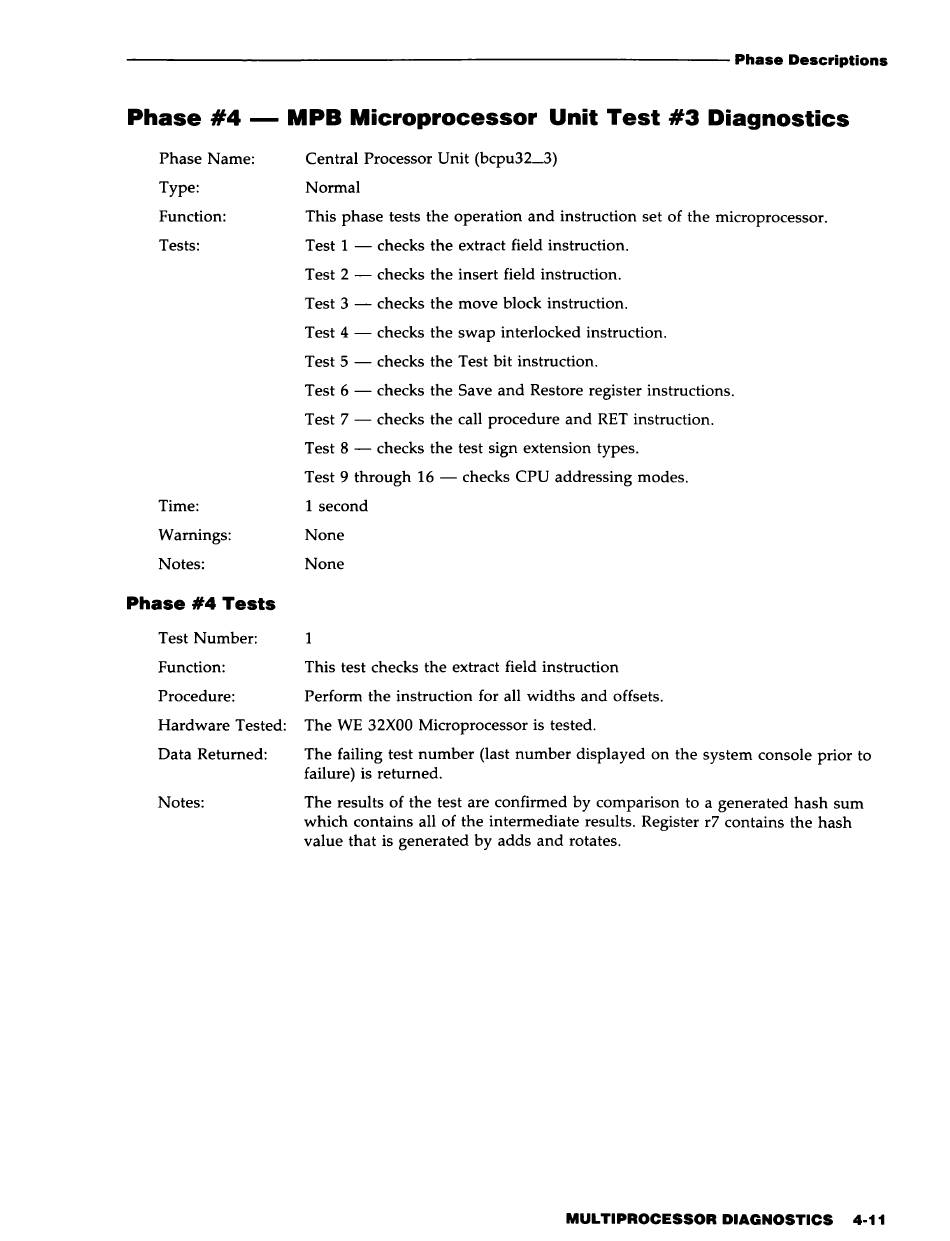

AT&T 3B2 Off-Line Diagnostic Manual page 193

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Phase Descriptions
Phase #4 - MPB Microprocessor Unit Test #3 Diagnostics
Phase Name:
Type:
Function:
Tests:
Time:
Warnings:
Notes:
Phase #4 Tests
Central Processor Unit (bcpu32_3)
Normal
This phase tests the operation and instruction set of the microprocessor.
Test 1 - checks the extract field instruction.
Test 2 - checks the insert field instruction.
Test 3 - checks the move block instruction.
Test 4 - checks the swap interlocked instruction.
Test 5 - checks the Test bit instruction.
Test 6 - checks the Save and Restore register instructions.
Test 7 - checks the call procedure and RET instruction.
Test 8 - checks the test sign extension types.
Test 9 through 16 - checks CPU addressing modes.
1 second
None
None
Test Number: 1
Function: This test checks the extract field instruction
Procedure: Perform the instruction for all widths and offsets.
Hardware Tested: The WE 32XOO Microprocessor is tested.
Data Returned: The failing test number (last number displayed on the system console prior to
failure) is returned.
Notes: The results of the test are confirmed by comparison to a generated hash sum
which contains all of the intermediate results. Register r7 contains the hash
value that is generated by adds and rotates.
MULTIPROCESSOR DIAGNOSTICS 4-11
