- - - - - - - - - - - - - - - - - - - - - Version 2 Hardware System Board Diagnostics

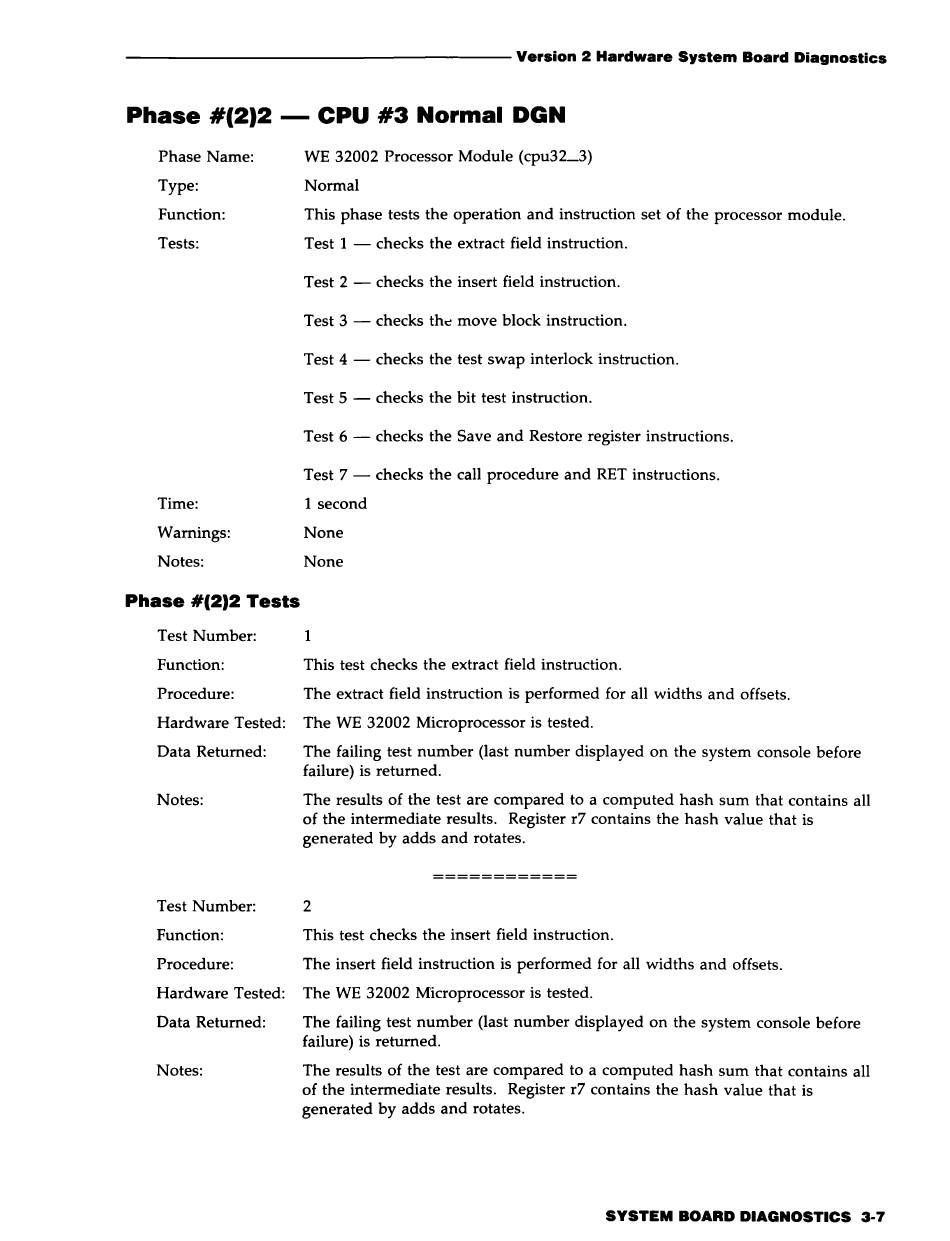

Phase #(2)2 - CPU #3 Normal DGN
Phase Name:
Type:
Function:
Tests:
Time:
Warnings:
Notes:
Phase #(2)2 Tests
WE 32002 Processor Module (cpu32_3)
Normal
This phase tests the operation and instruction set of the processor module.
Test 1 - checks the extract field instruction.
Test 2 - checks the insert field instruction.
Test 3 - checks the move block instruction.
Test 4 - checks the test swap interlock instruction.
Test 5 - checks the bit test instruction.
Test 6 - checks the Save and Restore register instructions.
Test 7 - checks the call procedure and RET instructions.
1 second
None
None
Test Number: 1
Function: This test checks the extract field instruction.
Procedure: The extract field instruction is performed for all widths and offsets.
Hardware Tested: The WE 32002 Microprocessor is tested.
Data Returned: The failing test number (last number displayed on the system console before
failure) is returned.
Notes: The results of the test are compared to a computed hash sum that contains all
of the intermediate results. Register r7 contains the hash value that is
generated by adds and rotates.
Test Number: 2
Function: This test checks the insert field instruction.
Procedure: The insert field instruction is performed for all widths and offsets.
Hardware Tested: The WE 32002 Microprocessor is tested.
Data Returned: The failing test number (last number displayed on the system console before
failure) is returned.
Notes: The results of the test are compared to a computed hash sum that contains all
of the intermediate results. Register r7 contains the hash value that is
generated by adds and rotates.
SYSTEM BOARD DIAGNOSTICS 3-7
