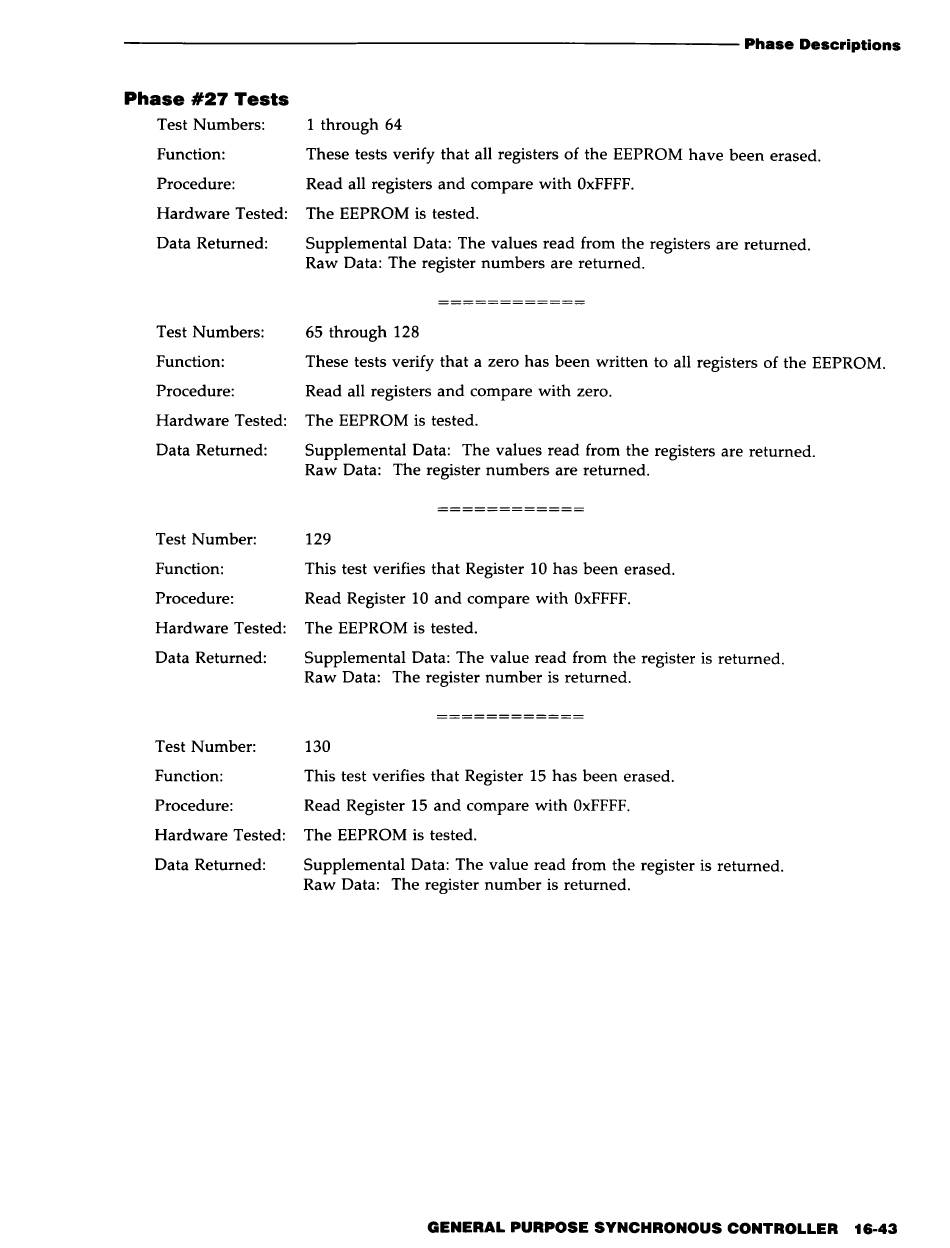

Phase #27 Tests
Test Numbers:
1 through 64
Function:
These tests verify that all registers of the EEPROM have been erased.
Procedure:
Read all registers and compare with OxFFFF.
Hardware Tested:
The EEPROM is tested.
Data Returned:
Supplemental Data: The values read from the registers are returned.
Raw Data: The register numbers are returned.
Test Numbers:
65 through 128
Function:
These tests verify that a zero has been written to all registers of the EEPROM.
Procedure:
Read all registers and compare with zero.
Hardware Tested:
The EEPROM is tested.
Data Returned:
Supplemental Data: The values read from the registers are returned.
Raw Data: The register numbers are returned.
Test Number:
129
Function:
This test verifies that Register 10 has been erased.
Procedure:
Read Register 10 and compare with OxFFFF.
Hardware Tested:
The EEPROM is tested.
Data Returned:
Supplemental Data: The value read from the register is returned.
Raw Data: The register number is returned.
Test Number:
130
Function:
This test verifies that Register 15 has been erased.
Procedure:
Read Register 15 and compare with OxFFFF.
Hardware Tested:
The EEPROM is tested.
Data Returned:
Supplemental Data: The value read from the register is returned.
Raw Data: The register number is returned.
