Lower part

5.7.1

Removing of castor wheel

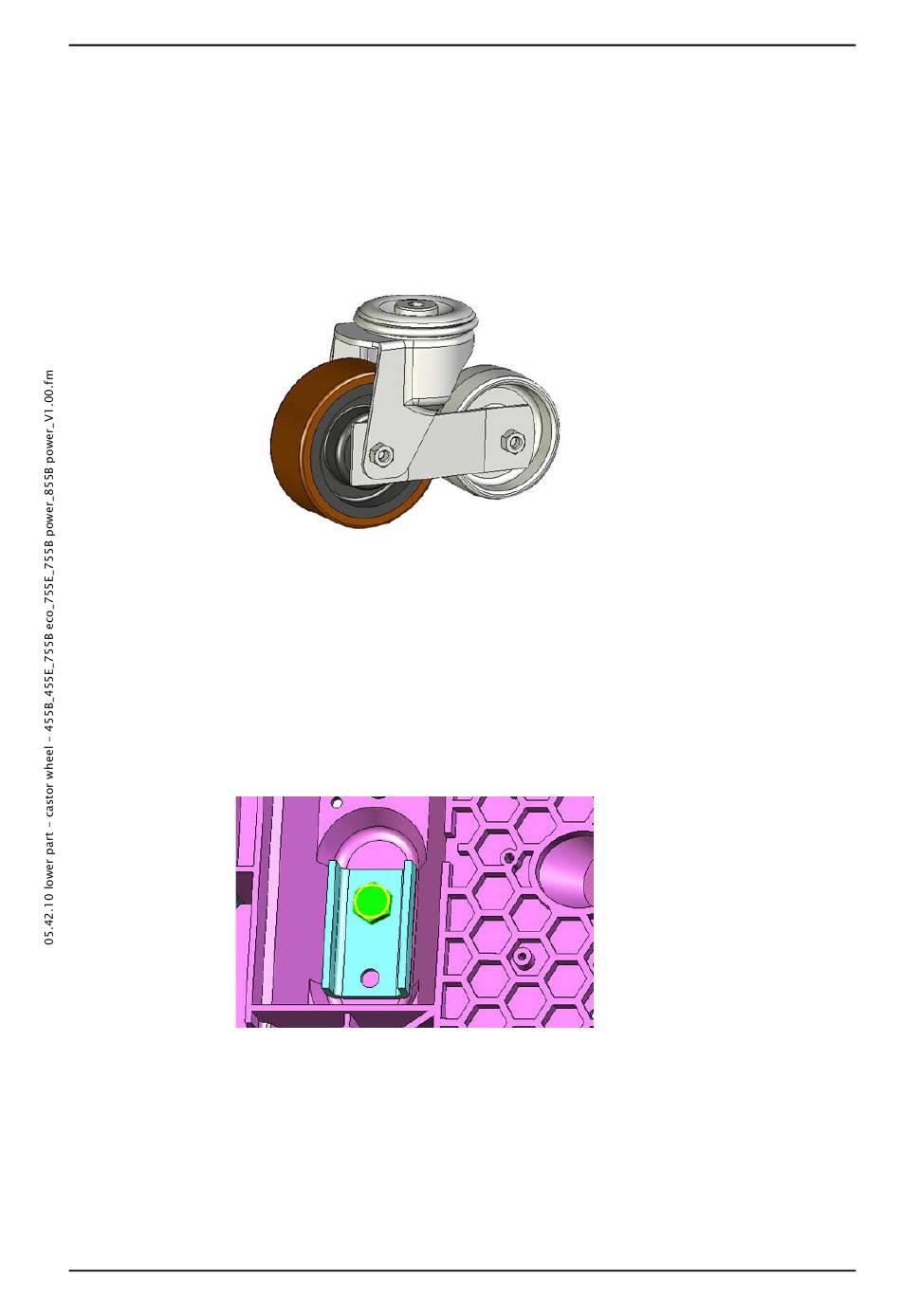

Picture 61: Castor wheel
•
•
•
•
•
Picture 62: Castor wheel screw
•
5. March 2013
Copyright © 2013, Diversey Inc.
Unlock battery compartment on the LH side by removing the
screw (455:02/122, 755B:09/114, 755E:09/110) from the
locking system.
Lay the machine on the LH side.
Unlock battery compartment on the RH side by removing the
screw from the locking system.
Open the battery compartment.
Untighten the fixation screw (455:07/103, 755B:05/104,
755E:06/117) with a 19 mm fork spanner.
Remove the complete castor wheel (455:07/124, 755B:05/115,
755E:06/125) and squeegee support.
