5.7 Lower part
5.7.2

Mounting of castor wheel

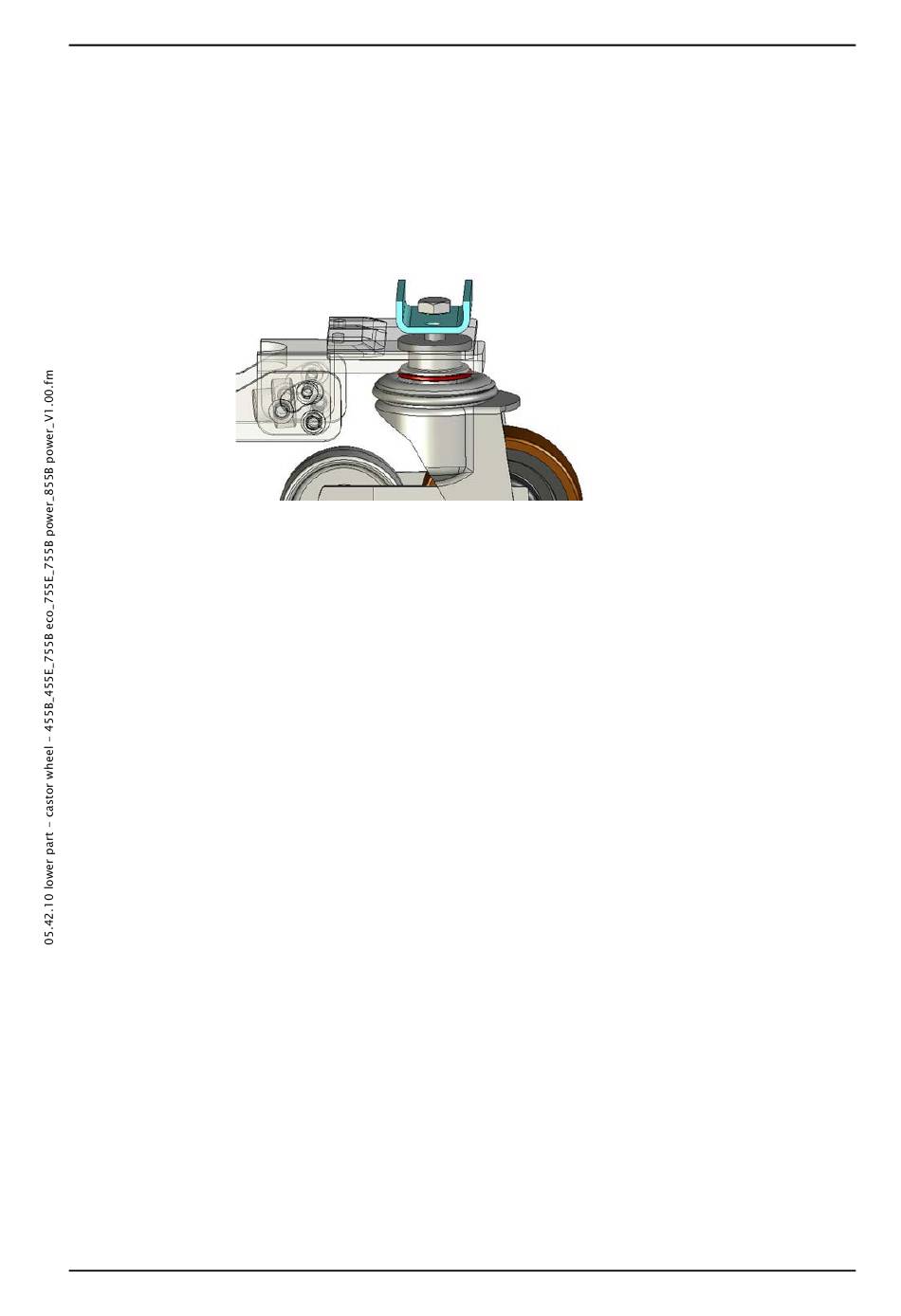

Picture 63: Castor wheel detail
•
•
•
•
•
Adjustment
Tighten the screw with 70 Nm.
Service
Apply gear/bearing lubricant (455:07/131, 755B:05/134, 755E:06/
127) on the bush (455:07/123, 755B:05/114, 755E:06/124).
Apply adhesive locking (455:07/130, 755B:05/133, 755E:06/118) on
screw (455:07/103, 755B:05/104, 755E:06/117).
5. March 2013
Copyright © 2013, Diversey Inc.
Assemble castor wheel and squeegee support according to e-
spares.
Tighten the fixation screw with a 19 mm fork spanner.
Lock battery compartment on the RH side with the screw of the
locking system.
Lift up the machine.
Lock battery compartment on the LH side with the screw of the
locking system.
Edition: V1.10/2013
Technical Manual
5-41
