GTS
5.6
Squeegee
5.6.2
Mounting of fixation spring

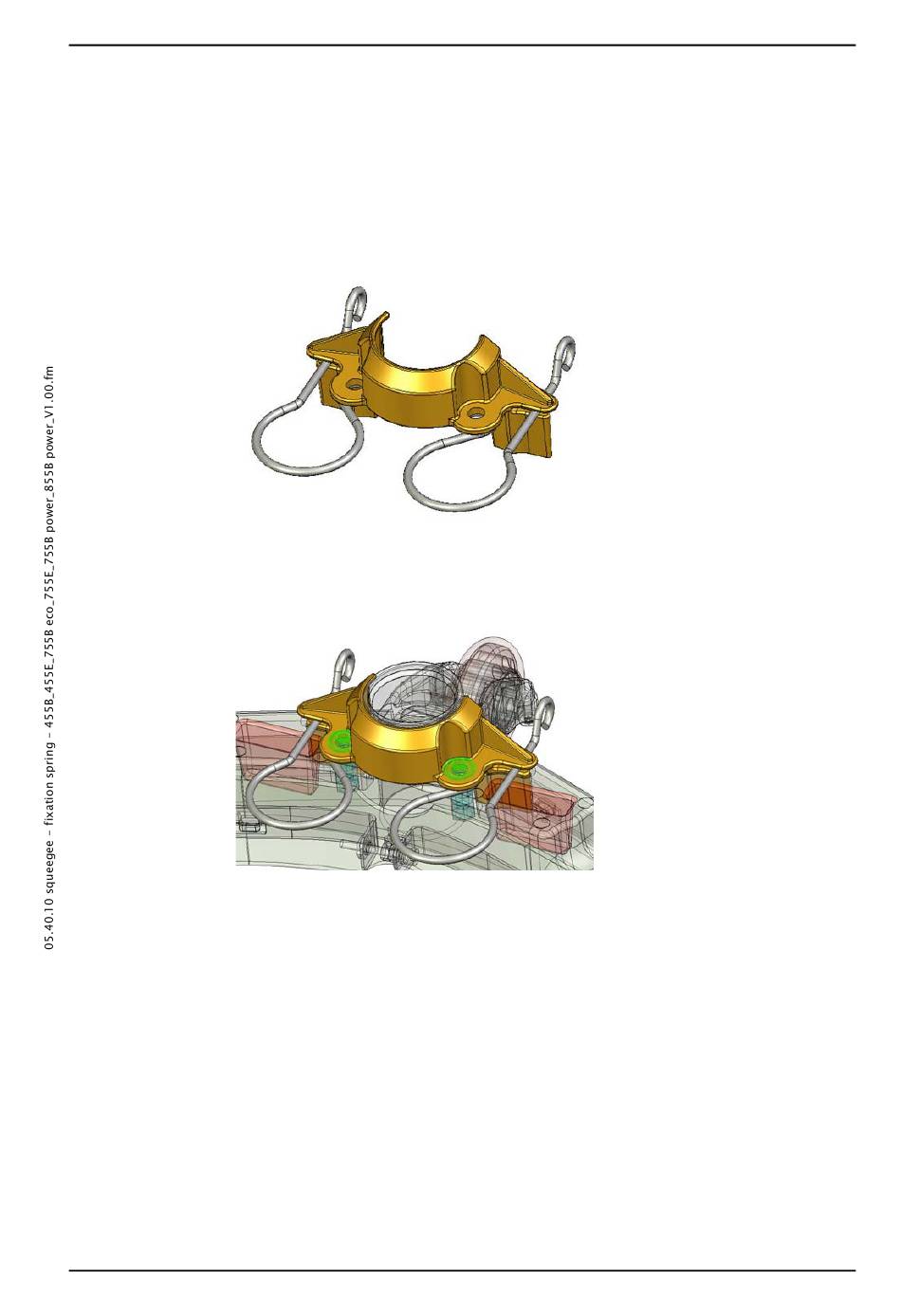

Picture 39: Offset fixation detail 1
•
•
•
Picture 40: Offset fixation detail
5. March 2013
Copyright © 2013, Diversey Inc.
Assemble the new spring on the offset.
Assemble the offset and the spring on the squeegee.
Mount the screws of the offset.
Edition: V1.10/2013
Technical Manual
5-31
