5.9 Brush drive
5.9.3

Removing of brush belt - New setup

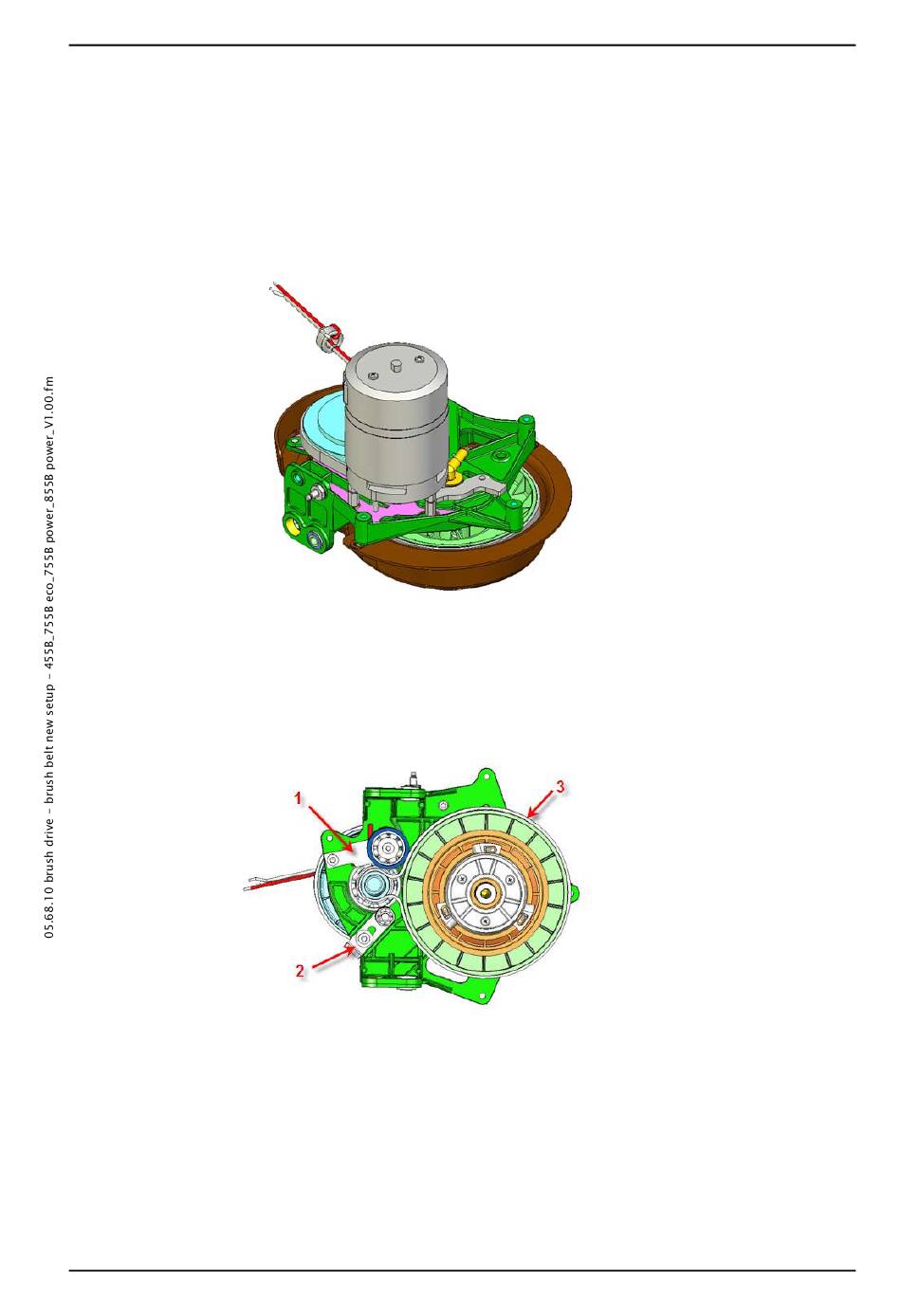

Picture 73: Brush drive
•
•
•
•
Picture 74: Remove belt - New setup
1
2
3
5. March 2013
Copyright © 2013, Diversey Inc.
Remove brush drive unit according to chapter REMOVING OF
BRUSH DRIVE UNIT.
Position brush drive unit upside down.
Remove the three screws (08/137) of cover.
Remove the cover (08/129).
Untighten belt tensioning roller (08/118) and remove it.
Remove the small tensioning roller (08/150).
Remove the belt (08/123).
