5.9 Brush drive
5.9.5

Removing of pulley - New setup

e

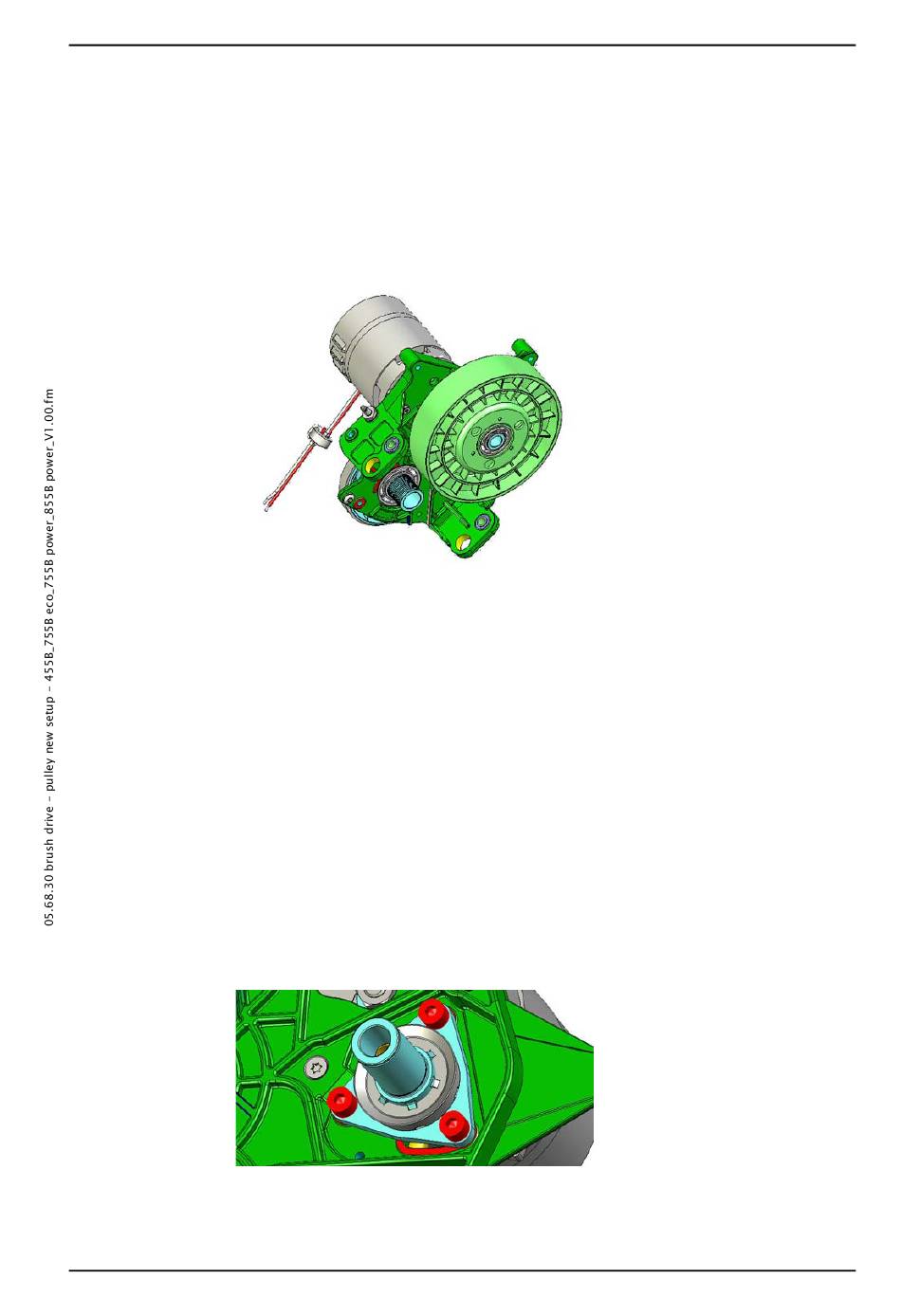

Picture 76: Brush drive pulley
•
•
•
•
•
•
•
•
Remarks
If you have to remove the complete pulley and axle together then you
can remove the three screws (08/125) with an Allan key by positioning
the slot of the brush drive pulley (08/127) right over the screws.
Picture 77: Brush drive pulley detail screw
5. March 2013
Copyright © 2013, Diversey Inc.
Remove brush drive unit according to chapter REMOVING OF
BRUSH DRIVE UNIT.
Remove brush belt according to chapter REMOVING OF BRUSH
BELT - NEW SETUP.
Remove the three screws (08/136) of the coupling (08/135).
Remove the coupling from brush drive pulley (08/127).
Remove the catch (08/131).
Remove the centre plug (08/134) and the sealing ring (08/130).
Remove the retaining ring (08/141).
Remove the pulley (08/127).
