5.8 Tool lowering unit
5.8.2

Mounting of foot lever

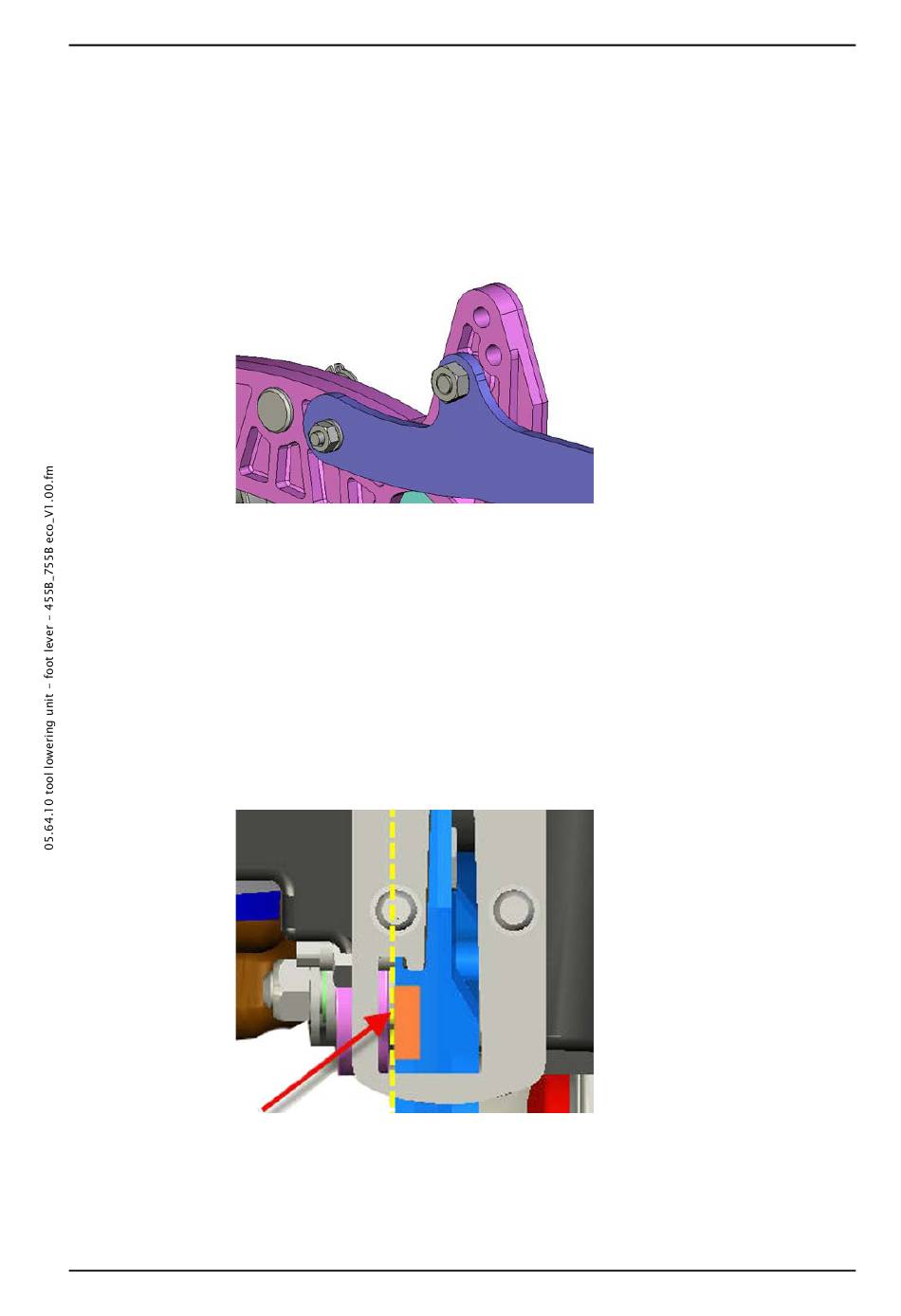

Picture 66: Tool lowering screws detail
•
•
•
•
•
Adjustment
The foot lever switch has to apply when the foot lever passes the
centre of the LH side of the stop plate squeegee (455B:06/102,
755B:07/102).
Picture 67: Tool lowering switching point
•
•
•
•
5. March 2013
Copyright © 2013, Diversey Inc.
Build in new foot lever.
Position washer and nuts, then tighten them.
Position cradle and foot lever in the correct position.
Assemble axle.
Assemble microswitch and adjust accordingly.
Mount the wheel.
Connect microswitch.
Position pressure spring.
Lift up machine.
