5.9 Brush drive
5.9.4

Mounting of brush belt - New setup

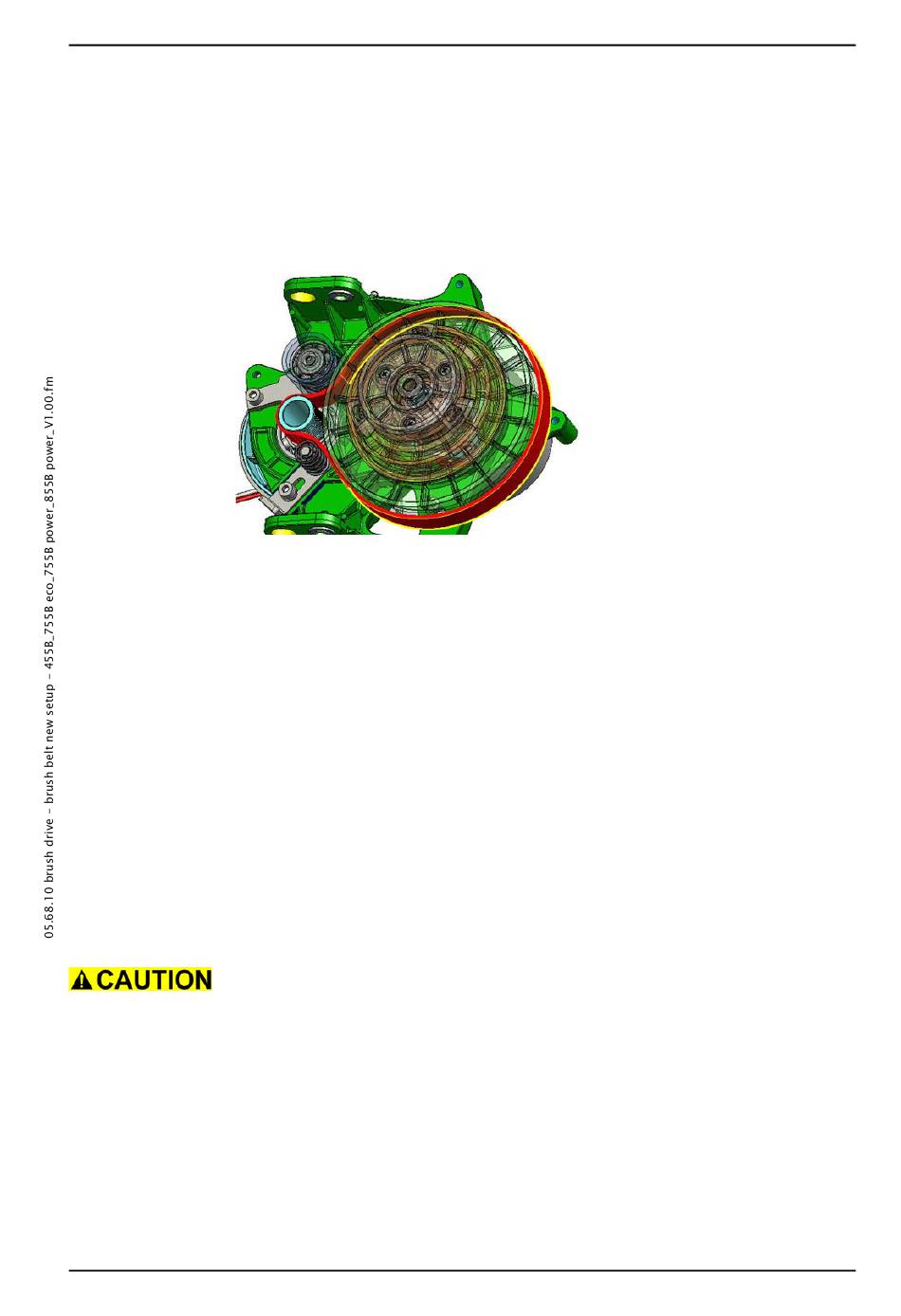

Picture 75: Mount belt - new setup
•
•
•
•
•
•
Remarks
If you can not get over the nozzle you can adjust the small tensioning
roller slightly.
•
•
•
Ensure that the belt does not touch the cover.
•
5. March 2013
Copyright © 2013, Diversey Inc.
Position new belt carefully.
Mount the small tensioning roller and push it to the limit.
Tighten the fixation screw of the small tensioning roller.
Position the tensioning roller on the brush base plate.
Position the fixation screw and tighten it only as much as
required to move over the brush base plate nozzle.
Move the tensioning roller with a 17 mm fork spanner over the
nozzle on the brush base plate.
Tighten the fixation screw of the tensioning roller completely.
Position the cover on the brush drive unit.
Position and tighten the fixation screws of cover.
Complete assembling according to the chapter MOUNTING OF
BRUSH DRIVE UNIT.
