Tool lowering unit

5.8.1

Removing of foot lever

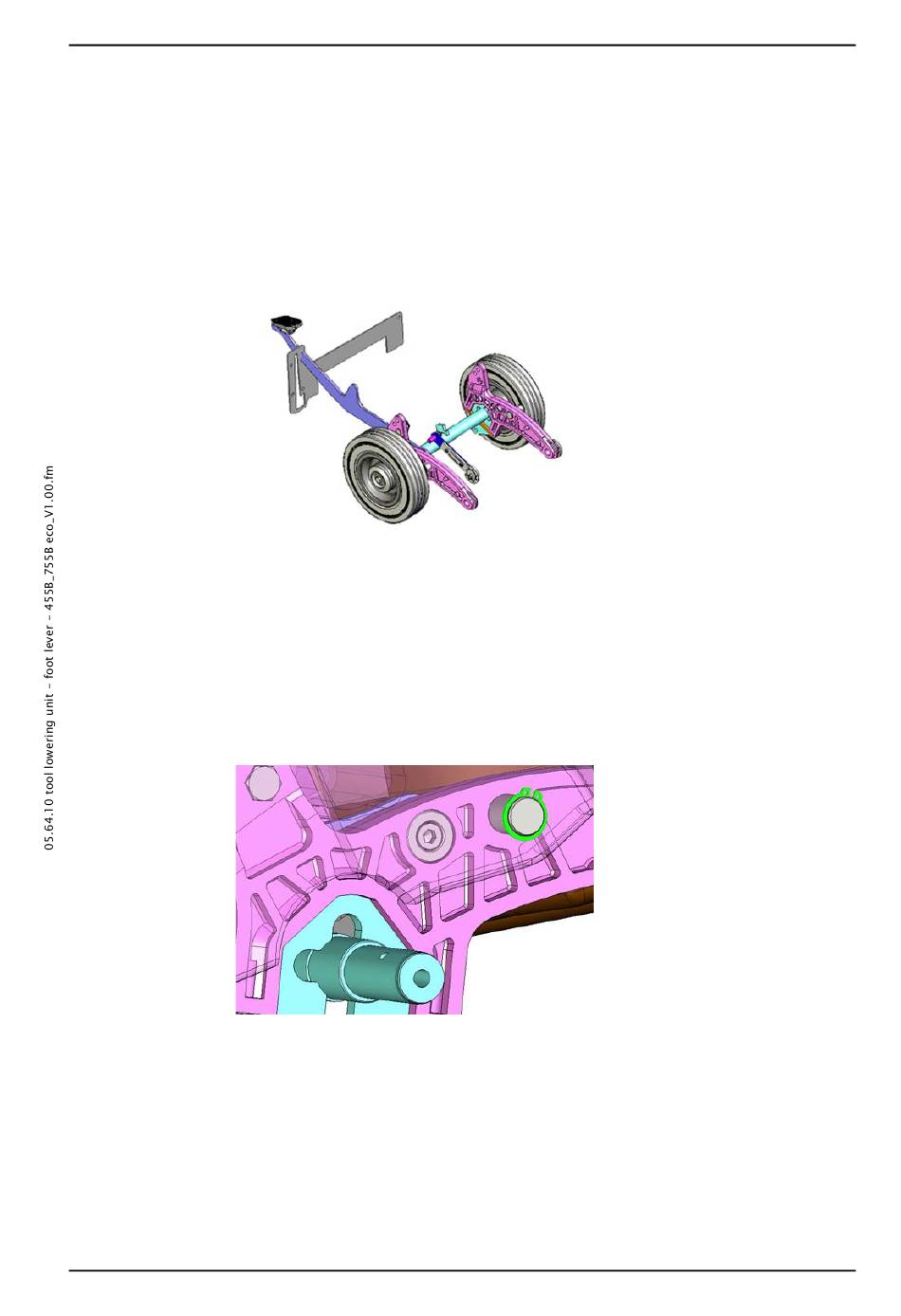

Picture 64: Tool lowering unit
•
•
•
•
•
•
•
Picture 65: Tool lowering pin detail
•
•
•
•
5. March 2013
Copyright © 2013, Diversey Inc.
Lay the machine to the LH side.
Remove the pressure spring (455B:07/143, 755B:06/112)
Unplug microswitch.
Unscrew microswitch fixation screw (455B:06/117, 755B:07/
117).
Remove microswitch (455B:06/123, 755B:07/123).
Remove wheel (455B:07/142, 755B:06/109) on RH side.
Remove retaining ring (455B:06/107, 755B:07/107).
Remove axle (455B:06/112, 755B:07/112) on RH side.
Pull the cradle out so you can reach the counter screw (455B:06/
127, 755B:07/127).
Remove two nuts (455B:06/113, 755B:07/113) and (455B:06/
126, 755B:07/126) and washer (455B:06/105, 755B:07/105).
Remove the foot lever (455B:06/104, 755B:07/104).
