GTS
5.9
Brush drive
5.9.7
Removing of motor & motor belt

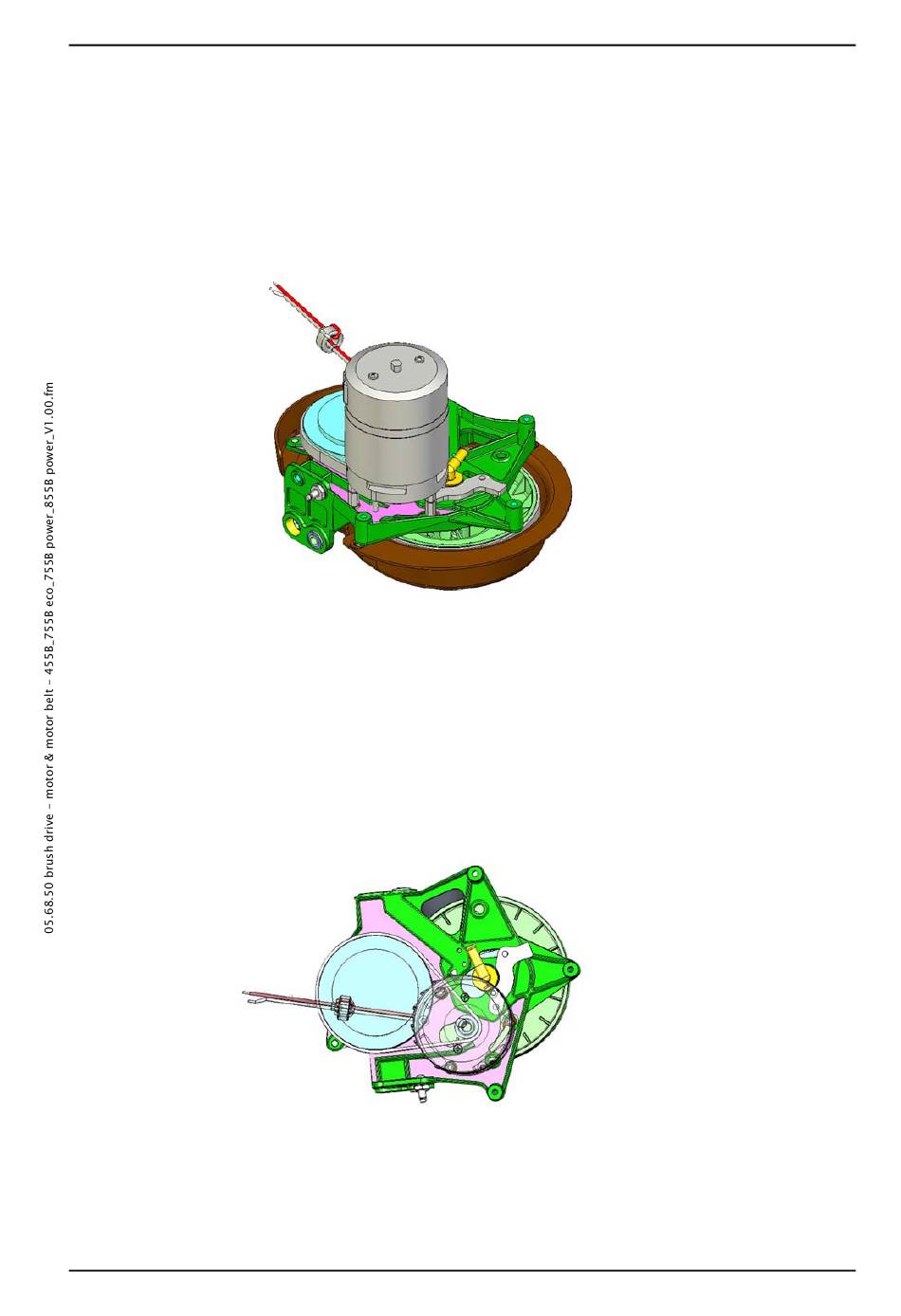

Picture 80: Brush drive
•
•
•
•
•
Picture 81: Brush motor belt
5. March 2013
Copyright © 2013, Diversey Inc.
Remove brush drive unit according to chapter REMOVING OF
BRUSH DRIVE UNIT.
Remove brush belt according to chapter REMOVING OF BRUSH
BELT - NEW SETUP/OLD SETUP.
Remove brush pulley according to chapter REMOVING OF PULLEY
- NEW SETUP/OLD SETUP.
Remove the two screws (09/134) and the one counter head
screw (09/135).
Remove the motor (09/131) and the motor belt (08/111).
Edition: V1.10/2013
Technical Manual
5-52
