Mounting of handle cover and electronics

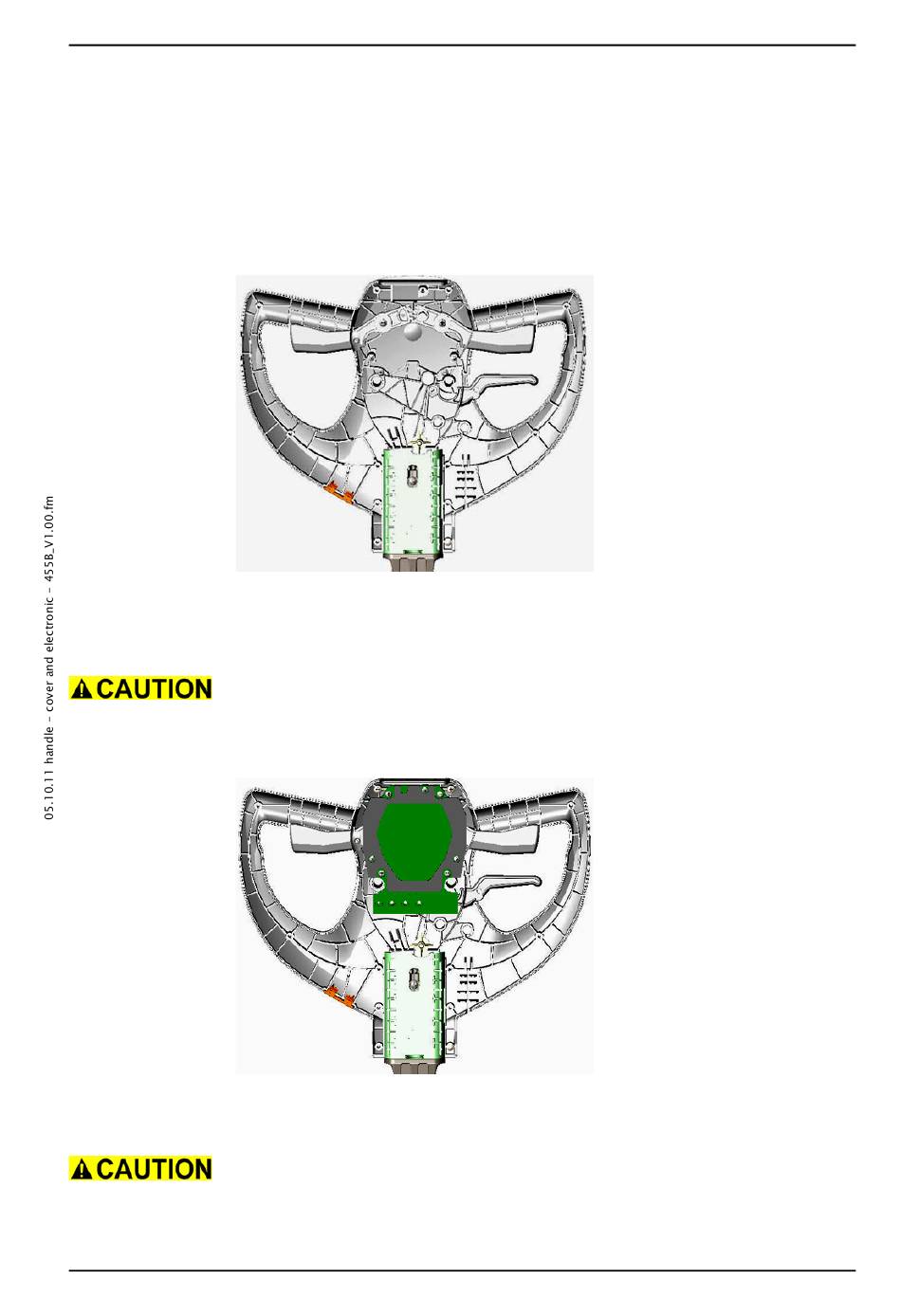

Picture 3: Handle without cover and electronics
•
•
Ensure that the loop of the ribbon cable is positioned correctly and
does not touch the switcher levers.
•
Picture 4: Handle without cover
•
Ensure that the levers, bowden cables and hose (01/121) are in the
correct position.
5. March 2013
Copyright © 2013, Diversey Inc.
Connect the ribbon cable to the electronics.
Position the electronics.
Mount the 3 fixation screws for the electronics.
Assemble the cover.
