5.1 Handle

5.1.11 Bowden cable adjustment

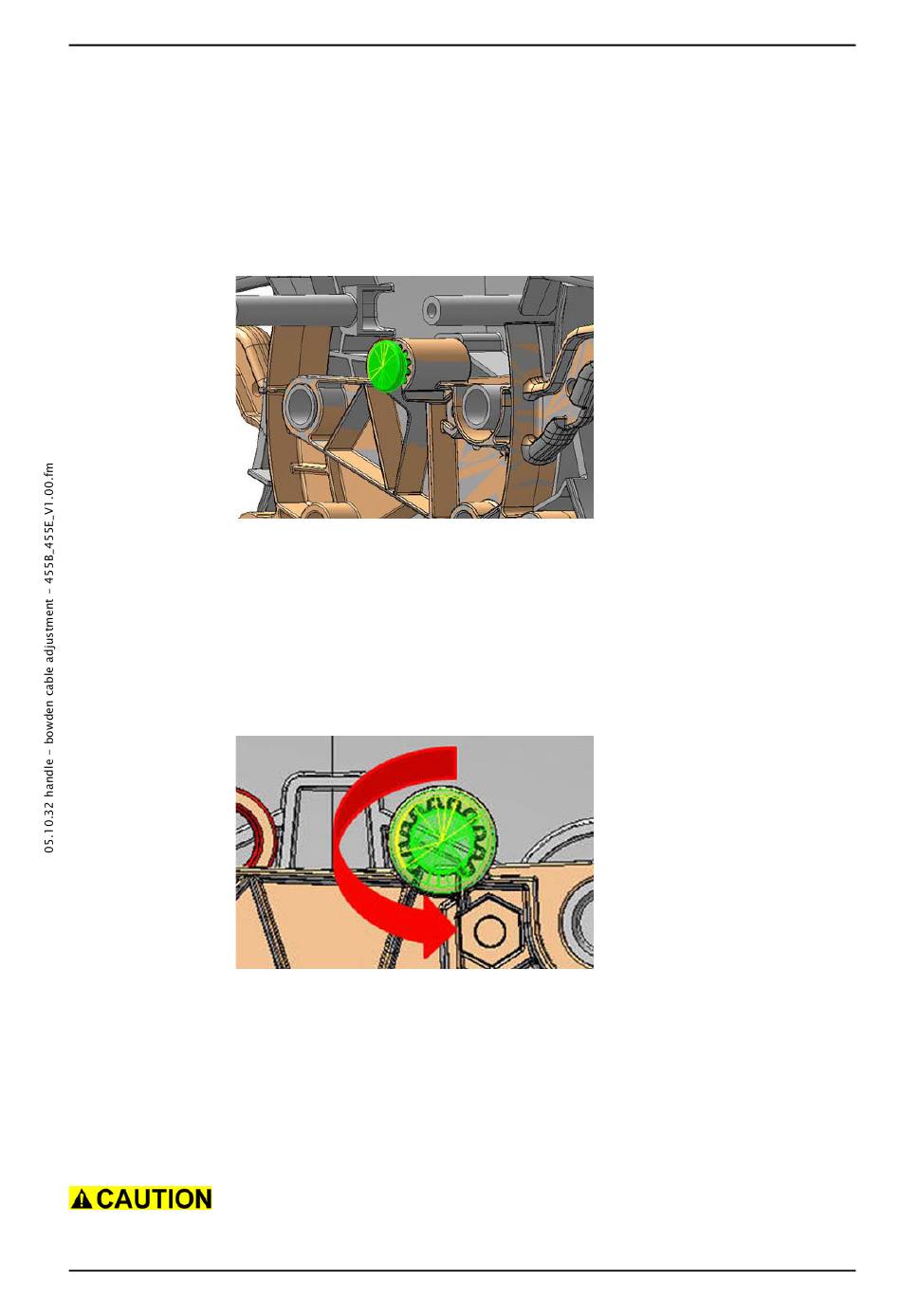

Picture 19: Eccentric shaft
•
Remarks
By turning the eccentric shaft counter clockwise you tension the
bowden cable.
Picture 20: Eccentric shaft detail
Adjustment
Make sure that the bowden cable is not tensioned too tight. Let the
handle adjustment lever have enough play (+/- 1mm).
•
Make sure that the articulation moves smoothly and that the
toothrockers engage firmly into the tooth head wheel.
5. March 2013
Copyright © 2013, Diversey Inc.
Position the eccentric shaft (01/136) together with the end bolt
of the bowden cable (01/119) on the lever (01/116).
When the needed tension position is reached, press in the
eccentric shaft into the lever to lock it.
