GTS
5.1
Handle

5.1.12 Removing of articulation

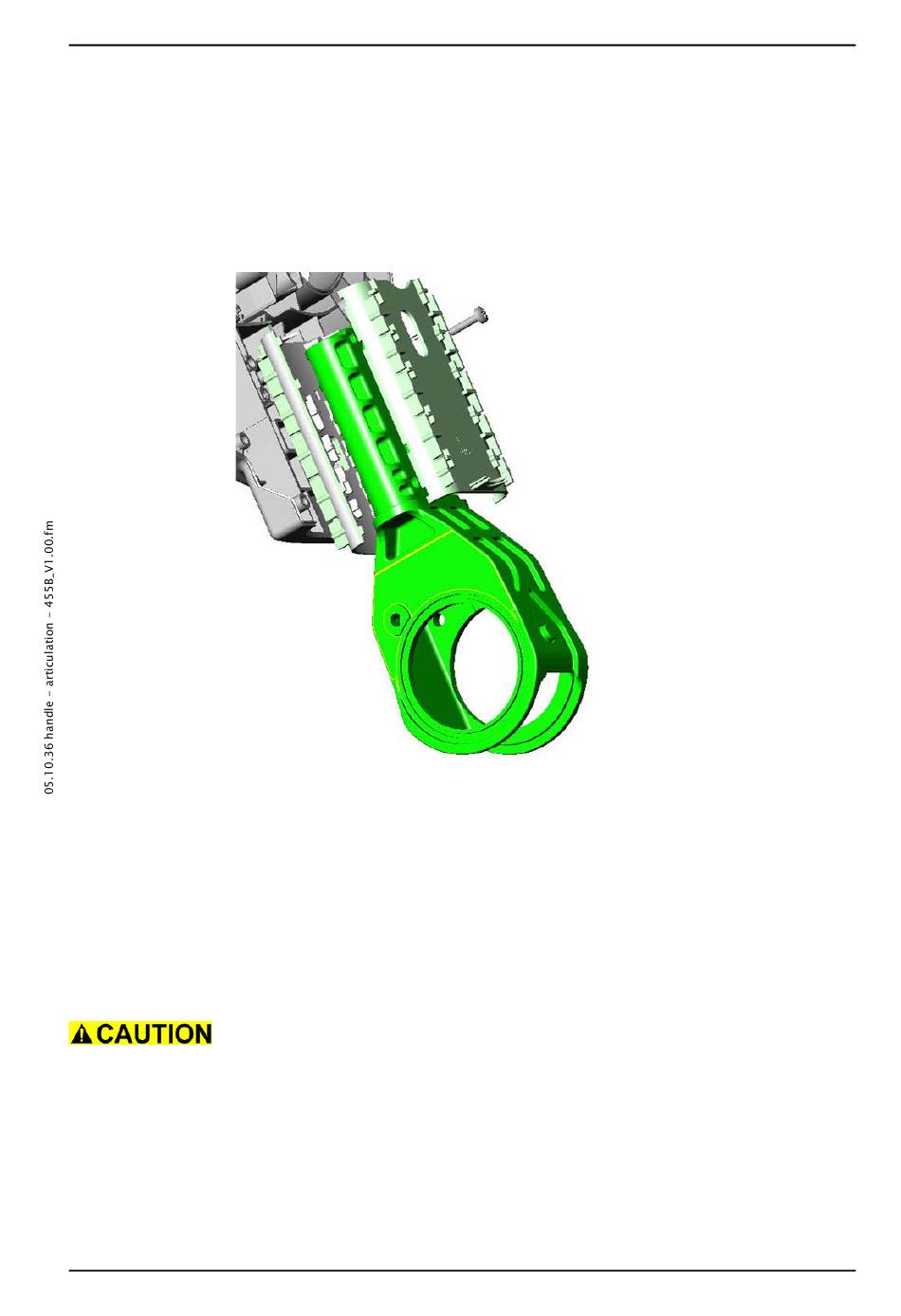

Picture 21: Articulation
Removing of the guide bar might damage it. Make sure you have a
spare one.
5. March 2013
Copyright © 2013, Diversey Inc.
Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
Remove the toothrockers according to chapter REMOVING OF
TOOTHROCKER.
Remove the bowden cable according to chapter REMOVING OF
BOWDEN CABLE.
Remove the screw (01/107) from the handle housing.
Remove the articulation (01/144).
Remove the guide bar (01/143).
Edition: V1.10/2013
Technical Manual
5-18
