GTS
5.6
Squeegee
5.6.7
Removing of front blade new setup

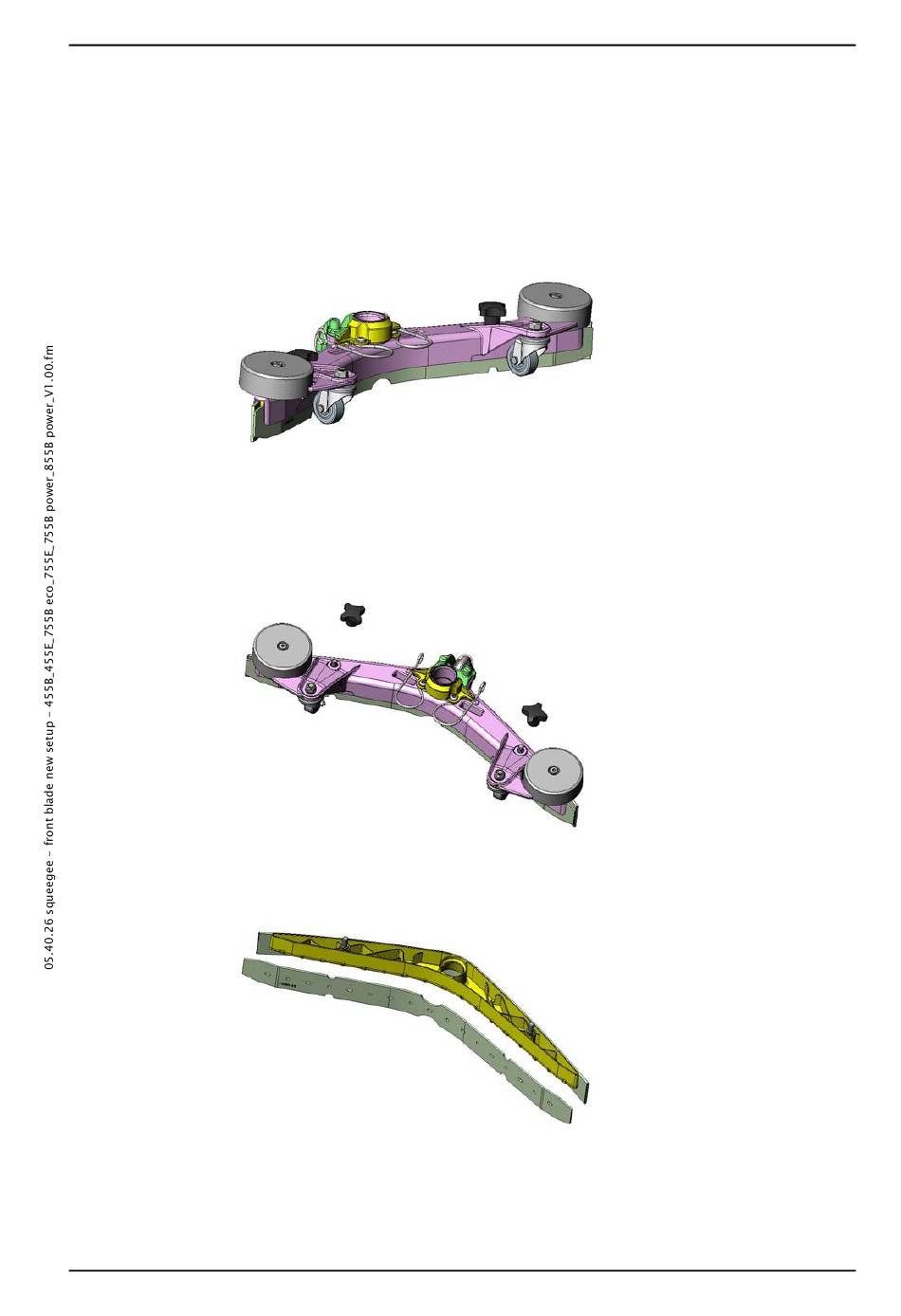

Picture 51: Squeegee new setup
•
•
Picture 52: Star knob
•
Picture 53: Front blade
5. March 2013
Copyright © 2013, Diversey Inc.
Remove the two star knobs (455 & 755E: 05/108, 755B & 855:
04/108).
Press out the squeegee inlet (455 & 755E: 05/124, 755B & 855:
04/124).
Remove front blade (455 & 755E: 05/123, 755B & 855: 04/123)
by tearing it off from the squeegee inlet.
Edition: V1.10/2013
Technical Manual
5-36
