Squeegee lowering mechanism

5.5.1

Removing of squeegee bracket spring

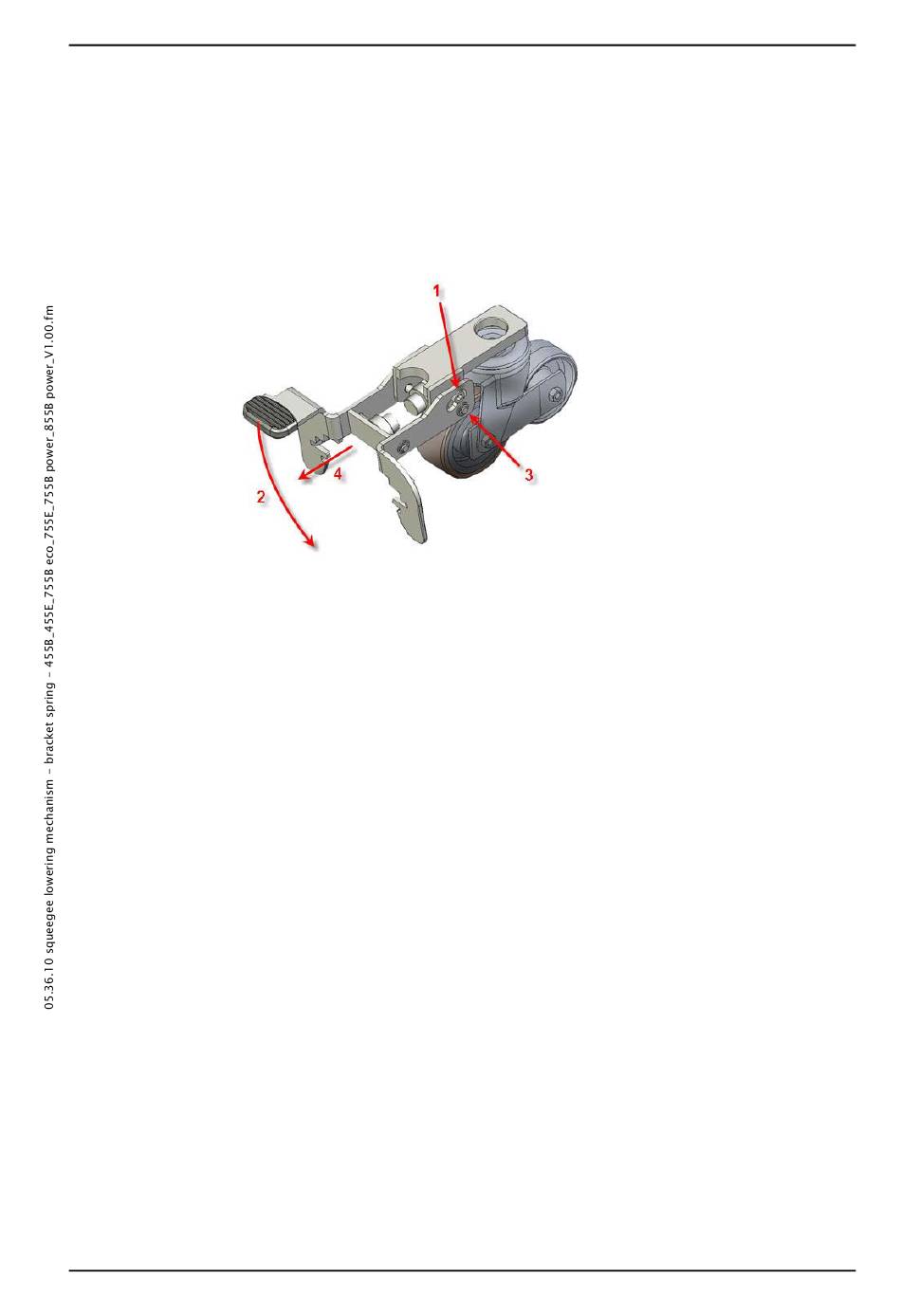

Picture 34: Squeegee lowering
•
•
1
2
Remarks
Lift up the rear of machine and incline it to the front to loosen the
tension of the spring.
3
•
4
5. March 2013
Copyright © 2013, Diversey Inc.
Remove the squeegee from the fixation.
Remove the tool from the brush drive unit.
Remove screws (455 & 755E:04/103, 755B:03/103) from sup-
port (455 & 755E:04/101, 755B:03/101).
Put the bracket in working position (down).
Remove one retaining ring (455 & 755E:04/111, 755B:03/111)
of rear axle (455 & 755E:04/110, 755B:03/110).
Remove the rear axle.
Remove pressure spring (455 & 755E:04/106, 755B:03/106).
