5.5 Squeegee lowering mechanism
5.5.2

Mounting of squeegee bracket spring

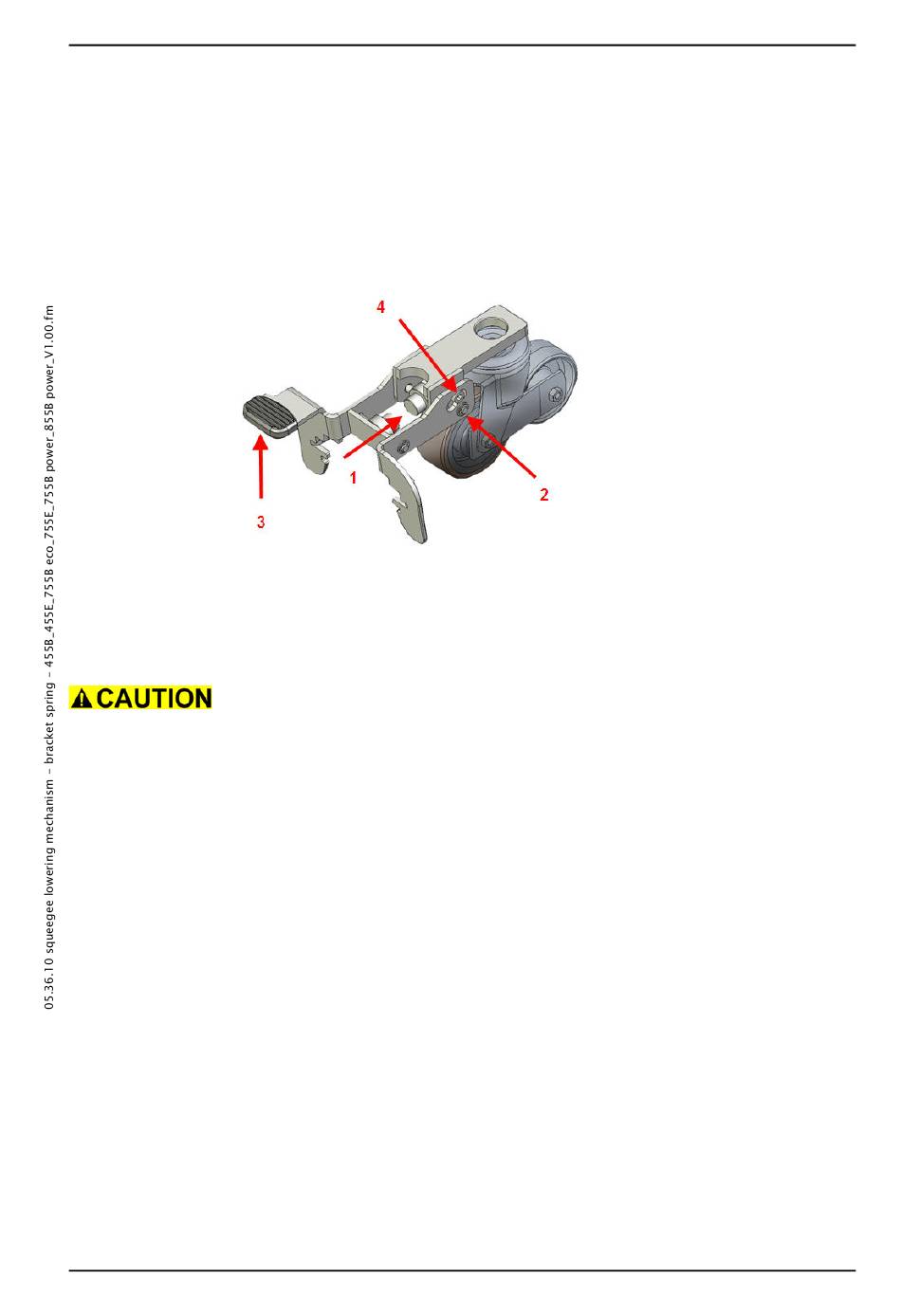

Picture 35: Squeegee lowering back
•
•
•
Ensure that the slide bearings are properly positioned.
•
•
Service
Apply lubricant locking on the screws (455 & 755E:04/103, 755B:03/
103).
5. March 2013
Copyright © 2013, Diversey Inc.
Assemble new pressure spring.
Assemble the rear axle.
Position the retaining ring on the rear axle.
Move the squeegee bracket to semi transport position.
Assemble the screws.
