6.2 Dashboard
6.2.2

Mounting of dashboard

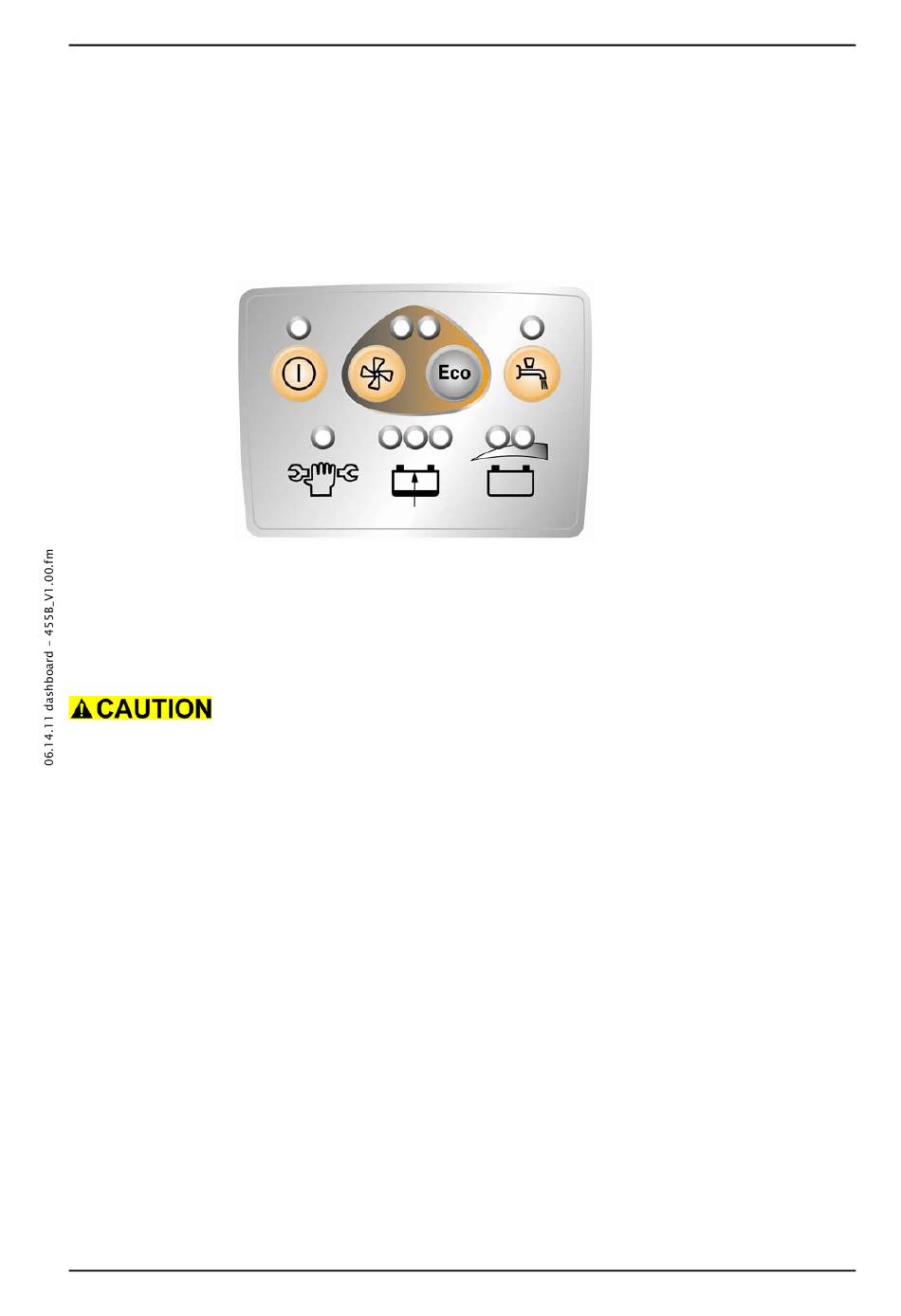

Picture 2: Dashboard
•
•
•
Ensure that the loop of the ribbon cable is positioned correctly and
does not touch the switch levers.
5. March 2013
Copyright © 2013, Diversey Inc.
Clean the surface where the dashboard will be placed.
Position the new dashboard foil.
Complete assembling according to the chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
Edition: V1.10/2013
Technical Manual
6-4
