5.1

Handle

5.1.1

Removing of handle cover and electronics

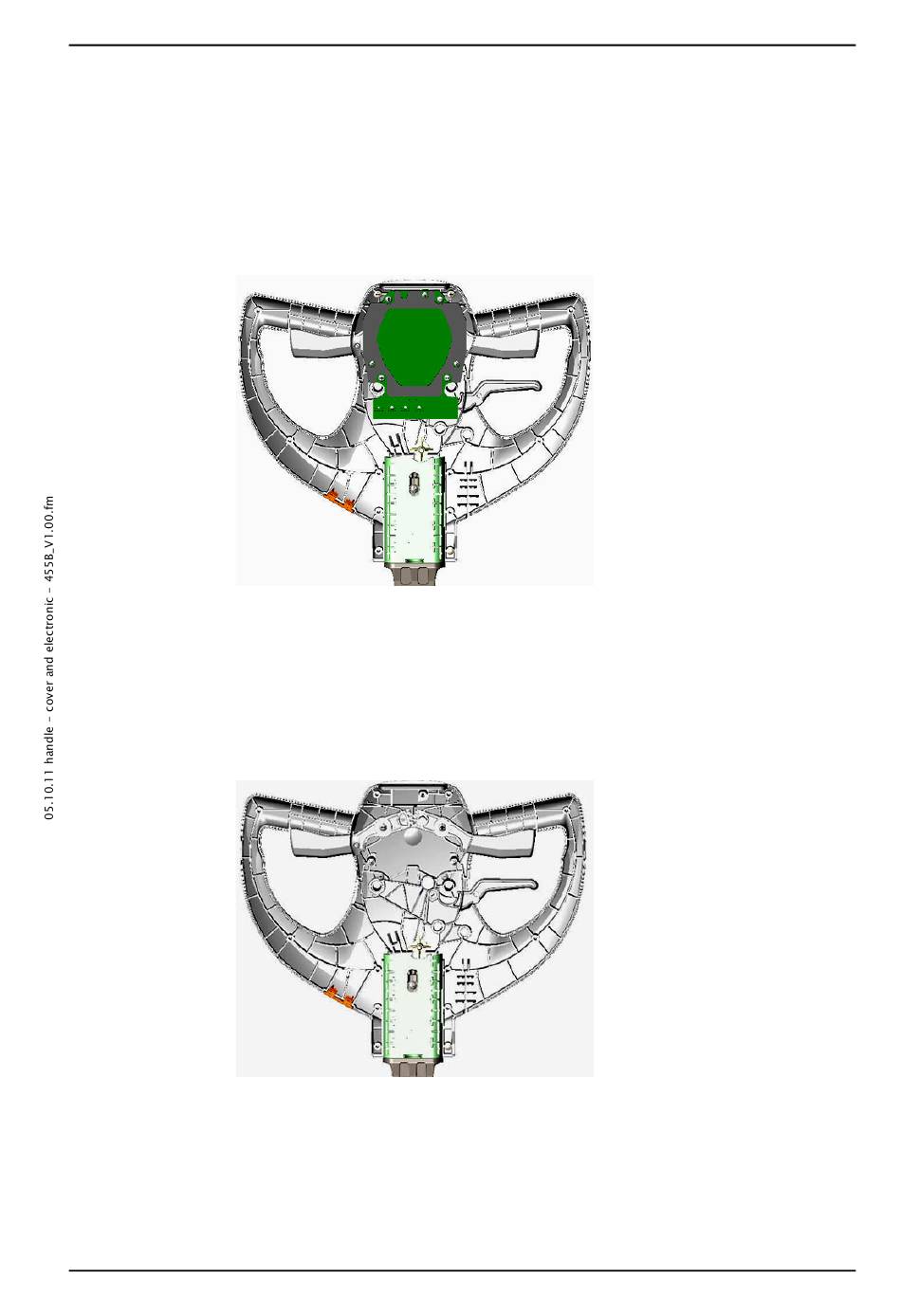

Picture 1: Handle without cover
•
•
•
•
•
Picture 2: Handle without cover and electronics
•
•
5. March 2013
Copyright © 2013, Diversey Inc.
Move handle to the front side so you can access the screws.
Remove the screw (01/106) for the cover (01/105) for USB
access.
Remove the cover for USB access.
Remove the 12 screws (01/107) and the 4 screws (01/117) into
electronics of the handle cover.
Remove the handle cover (01/108).
Remove the 3 fixation screws (01/104) for the electronics (01/
109).
Position the electronics down onto the articulation (01/144).
