GTS
5.1
Handle
5.1.5
Removing of handle adjustment lever

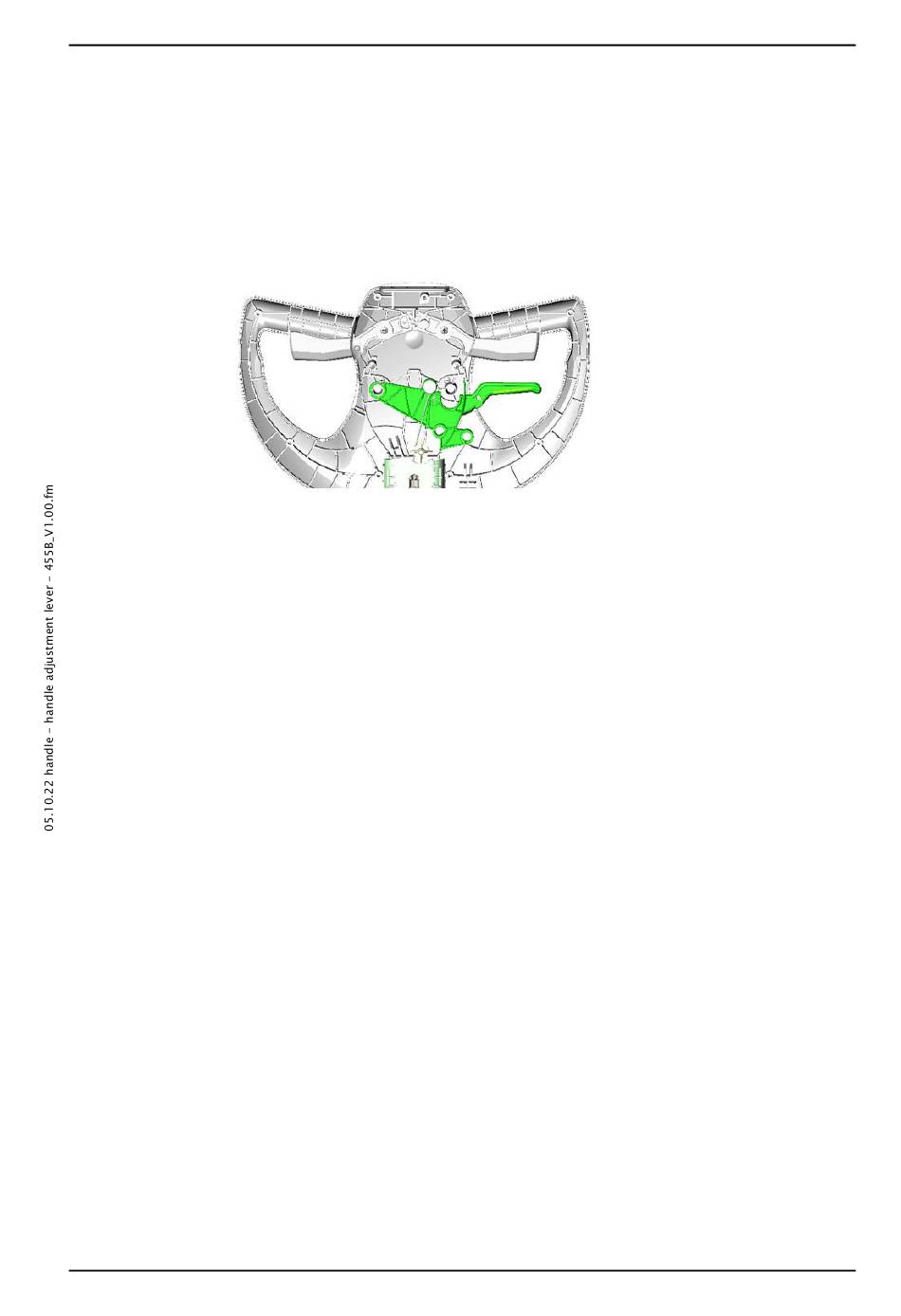

Picture 7: Handle adjustment lever
•
•
•
5. March 2013
Copyright © 2013, Diversey Inc.
Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
Remove the eccentric shaft (01/136) together with the end bolt
of the bowden cable (01/119).
Remove the handle adjustment lever (01/116).
Edition: V1.10/2013
Technical Manual
5-7
