5.1 Handle
5.1.4

Mounting of switch lever

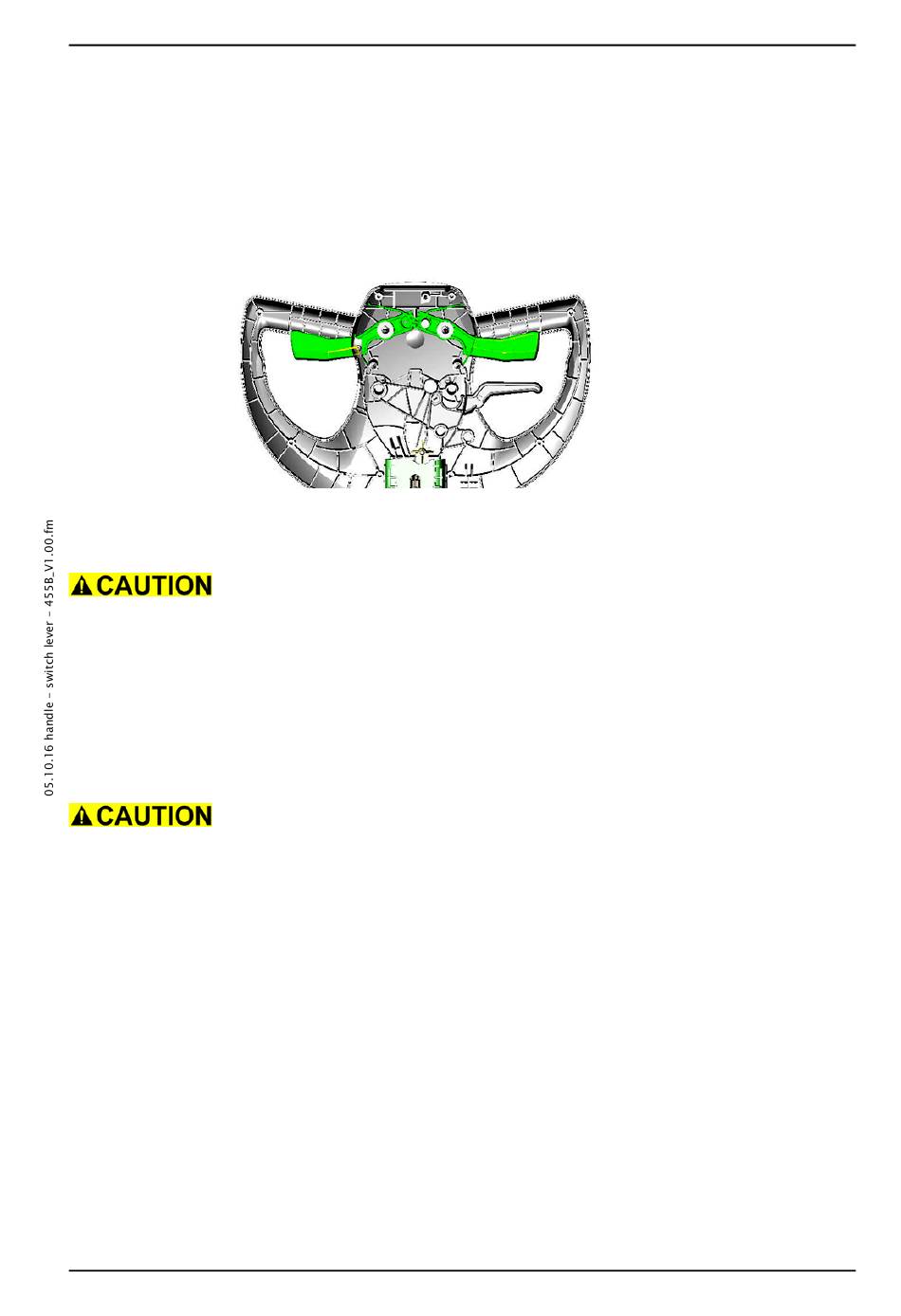

Picture 6: Switch lever
•
Ensure that the RH switch lever has the bolt with magnet (01/118)
mounted.
Adjustment
Ensure that the gear teeth of the switch levers are correctly
positioned. The switch levers have to be horizontally in one line.
•
Ensure that the switch levers move easily. Do not tighten the fixation
screws to hard.
•
5. March 2013
Copyright © 2013, Diversey Inc.
Mount switch levers onto the handle.
Mount the screws for the left and right switch lever.
Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
