5.2 Tank group
5.2.2

Mounting of clear water tank

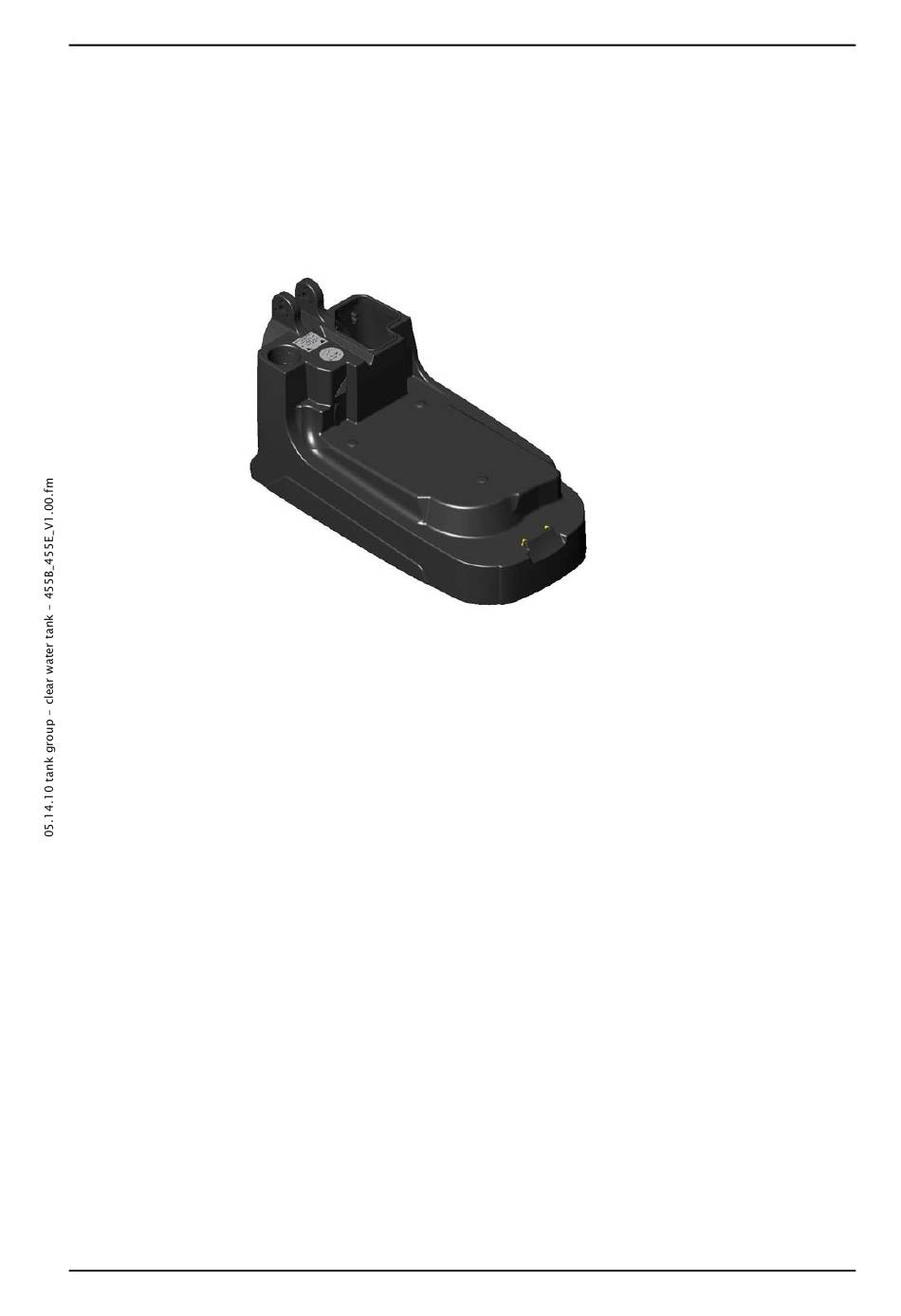

Picture 25: Clear water tank
•
•
•
•
•
•
•
•
•
•
•
•
5. March 2013
Copyright © 2013, Diversey Inc.
Position the recovery tank on to the tank axle.
Mount the two screws from the tank axle.
Mount the screw from the metal rope on the side of the clear
water tank.
Close the clear water tank.
Mount the screws from the tank brackets.
Click in the cable cover.
Mount the cover, vacuum unit together with the vacuum motor.
Mount the 5 screws from the cover, vacuum unit.
Mount the hose onto the water regulation set.
Tighten the hose clamp.
Position the recovery tank and tank cover.
Connect the two flexible hoses onto the tank cover.
