Magnetic valve, electrical parts
5.4.1
Removing of filter 24V

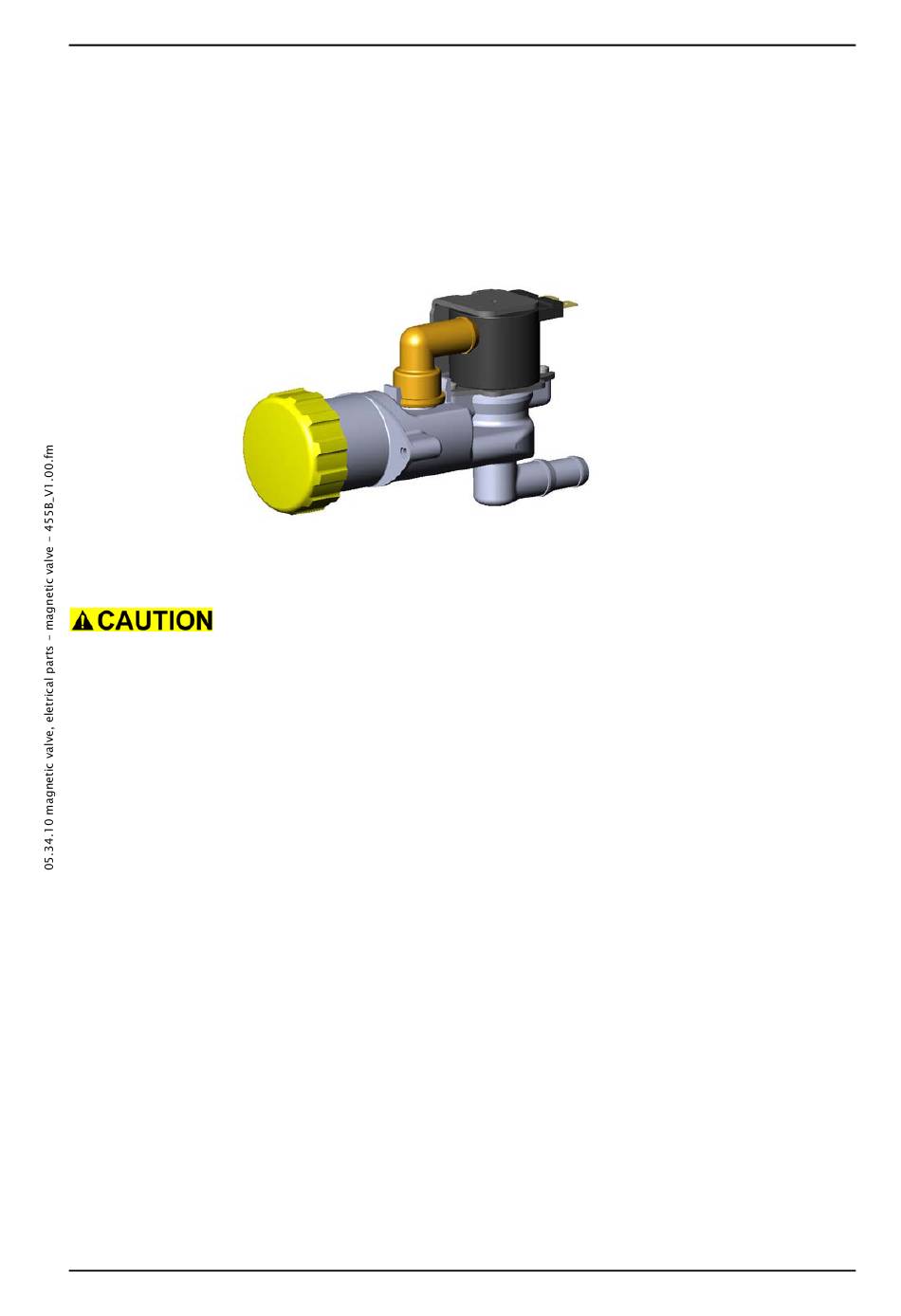

Picture 32: Filter 24V
•
Ensure that no water is in the fresh water system before you
disconnect the hoses.
•
•
•
•
•
•
5. March 2013
Copyright © 2013, Diversey Inc.
Remove filter set (09/102) of filter 24V.
Remove the two fixation screws (09/103) from chassis (07/105).
Thread out filter 24V (09/101) from the chassis.
Loosen the two hose clamps (03/118) from the filter 24V.
Disconnect the fresh water hose (03/119,120).
Disconnect the wires from coil.
Remove complete filter 24V.
Edition: V1.10/2013
Technical Manual
5-27
