5.1 Handle
5.1.8

Mounting of toothrocker

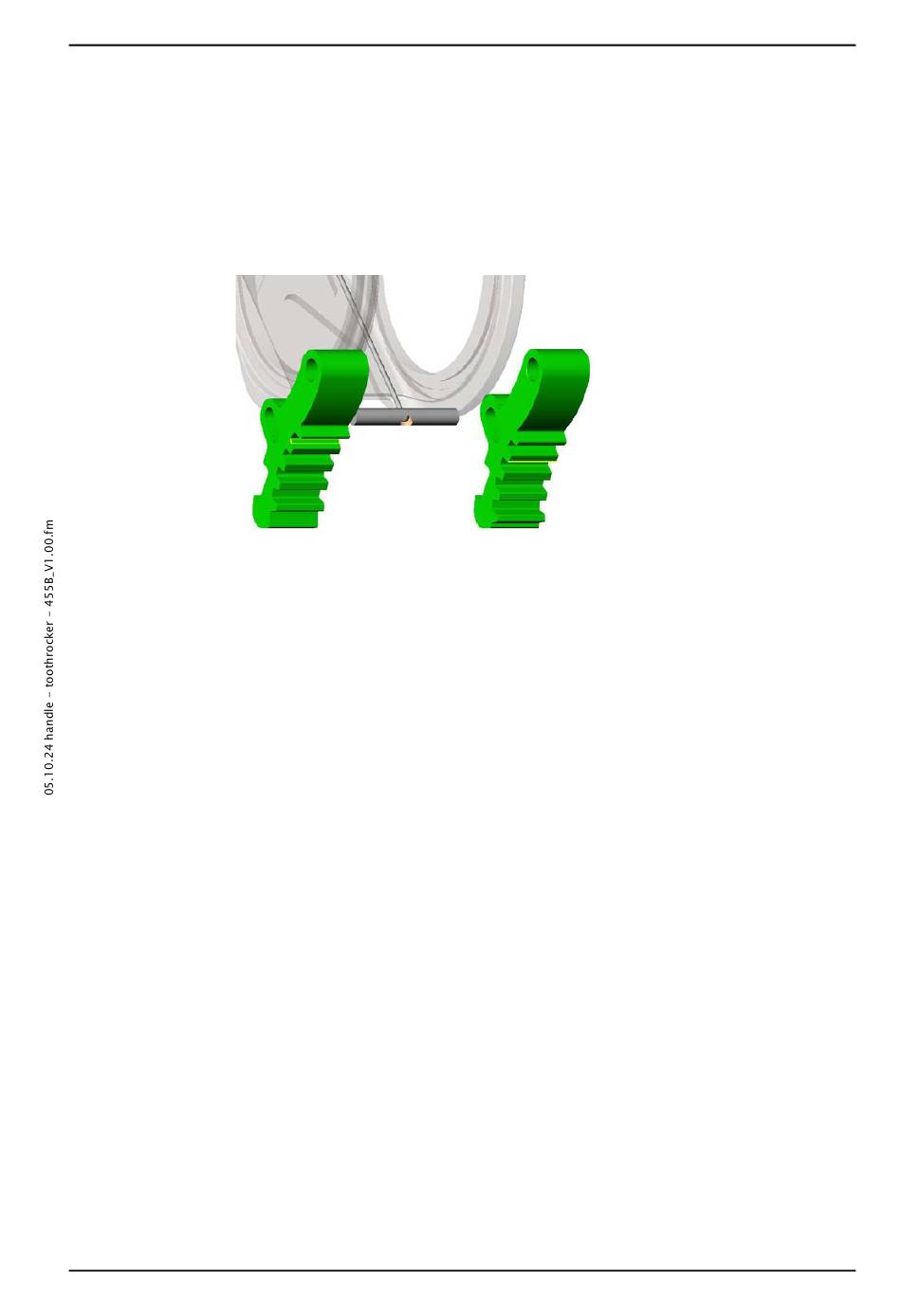

Picture 13: Toothrocker detail
•
Remarks
The two toothrockers are different in shape. The mounting position
doesn't matter.
•
•
Remarks
Make sure that the toothrockers and springs are correct in place.
5. March 2013
Copyright © 2013, Diversey Inc.
Mount the two toothrockers onto the axle of the bowden cable.
Position the two springs on the toothrockers.
Mount the axle.
