5.9 Brush drive
5.9.6

Mounting of pulley - New setup

e

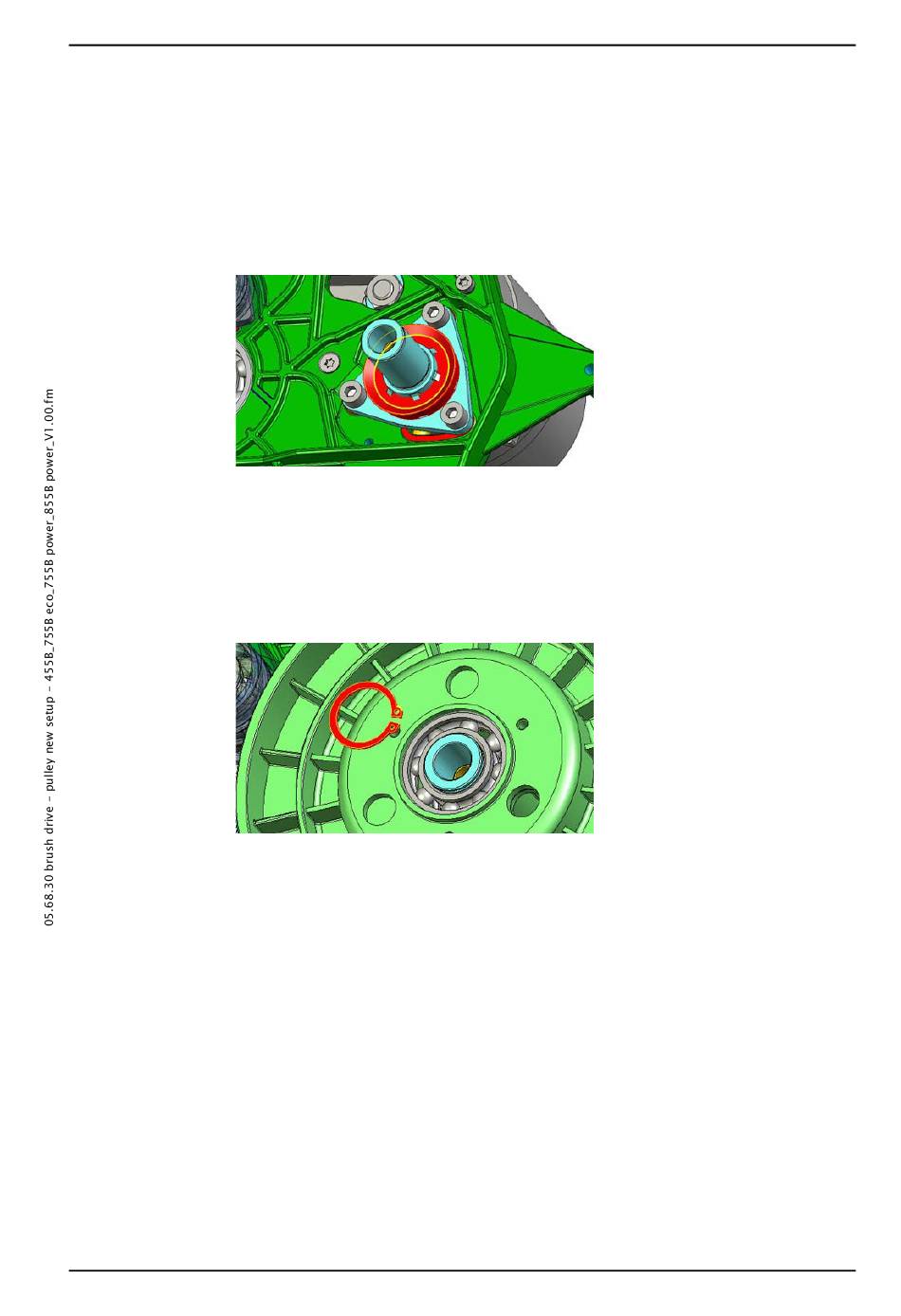

Picture 78: Brush pulley detail seal
Service
Apply lubricant (08/149) on the sealing ring (08/147).
•
•
Picture 79: Brush drive pulley detail retaining ring
Service
Apply lubricant (08/149) on the sealing ring (08/130).
•
•
•
•
Service
Tighten the screws (8/136) with 2.3 Nm.
•
•
5. March 2013
Copyright © 2013, Diversey Inc.
Mount the new pulley.
Position the retaining ring.
Position the sealing ring and the centre plug.
Position the catch.
Position the coupling.
Fix the coupling with the three screws.
Complete assembling according to the chapter MOUNTING OF
BRUSH BELT - NEW SETUP.
Complete assembling according to the chapter MOUNTING OF
BRUSH DRIVE UNIT.
