5.6 Squeegee
5.6.6

Mounting of back blade old setup

•

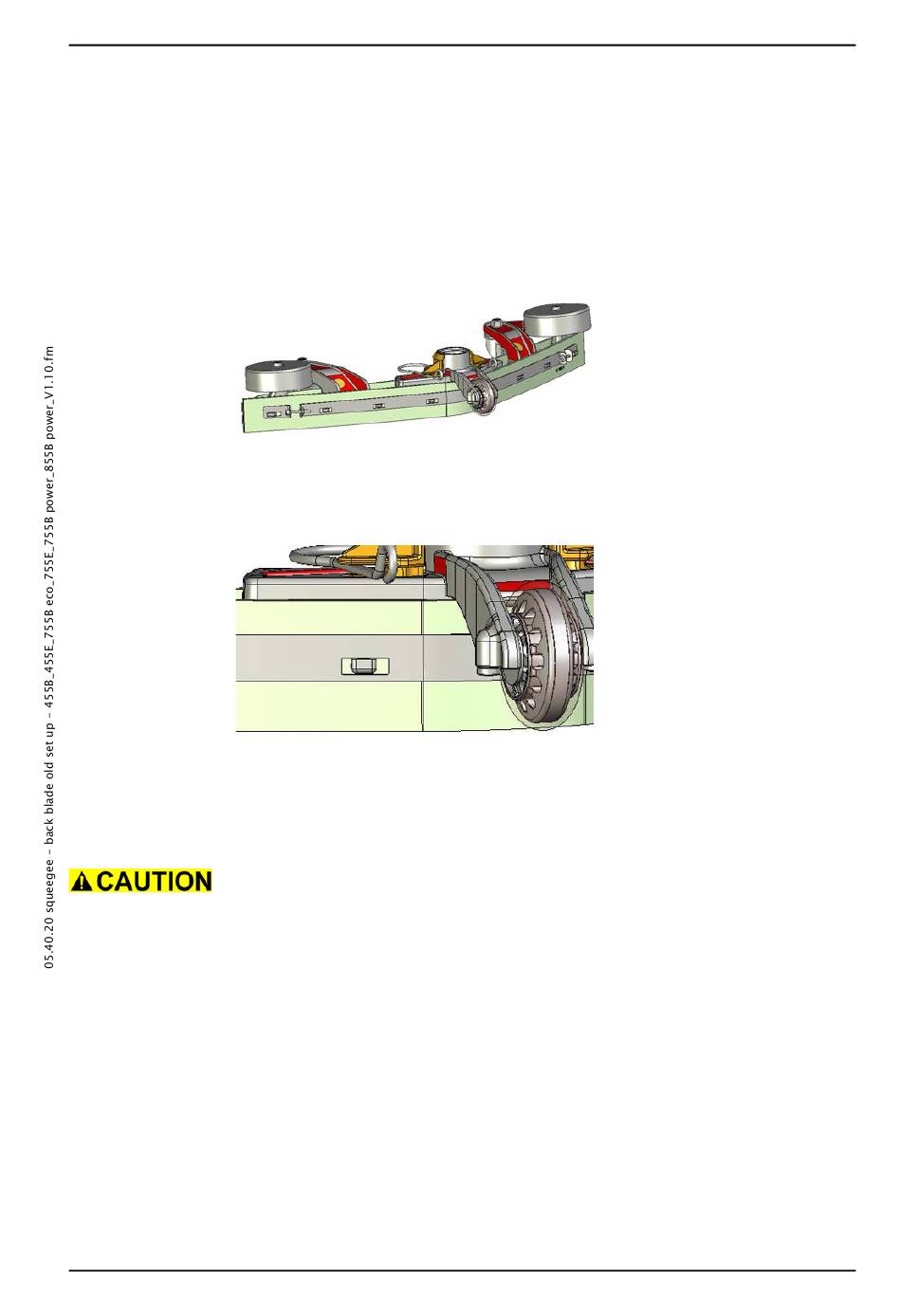

Picture 49: Back blade position
•
•
Picture 50: Tightening strap position back
Remarks
Pay attention that the tightening strap is positioned in the centre.
Ensure that the tightening strap is positioned correct (thin part to the
bottom).
If you over tighten the tightening strap it can damage the squeegee
body.
5. March 2013
Copyright © 2013, Diversey Inc.
Position new back blade.
Position tightening strap.
Tighten fixation screws until the blade is properly fixed on the
squeegee body.
