GTS
5.9

Brush drive

5.9.1

Removing of brush drive unit

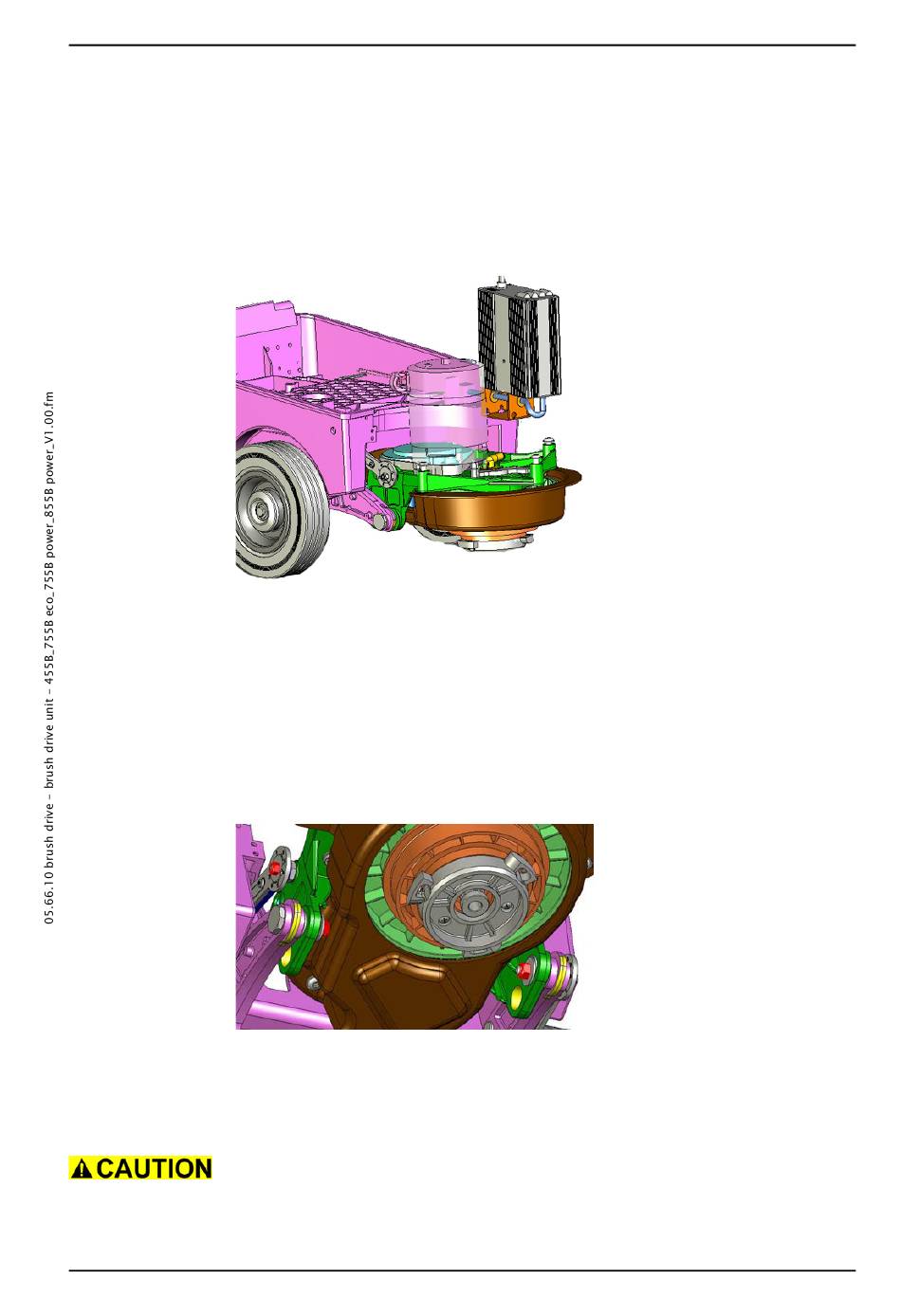

Picture 68: Brush drive removing
Picture 69: Brush drive removing detail
Make sure that you hold the brush drive unit firmly.
5. March 2013
Copyright © 2013, Diversey Inc.
Unscrew brush housing fixation screws (455B:08/137, 755B:08/
137).
Remove the brush housing from the brush drive unit.
Disconnect the fresh water hose from the brush drive unit.
Disconnect the brush motor wires from the connection block.
Remove self locking nuts (455B:06/124, 755B:07/124) on the
LH and RH side from the cradles.
Remove self locking nut (455B:06/119, 755B:07/119) at
eccentric disc (455B:06/120, 755B:07/120).
Remove the eccentric disc.
Remove the bolt (455B:06/111, 755B:07/111) and eccentric
shaft (455B:06/110, 755B:07/110).
Pivot the complete brush drive unit out.
Edition: V1.10/2013
Technical Manual
5-45
