5.3 Vacuum unit, water outlet
5.3.2

Mounting of vacuum motor

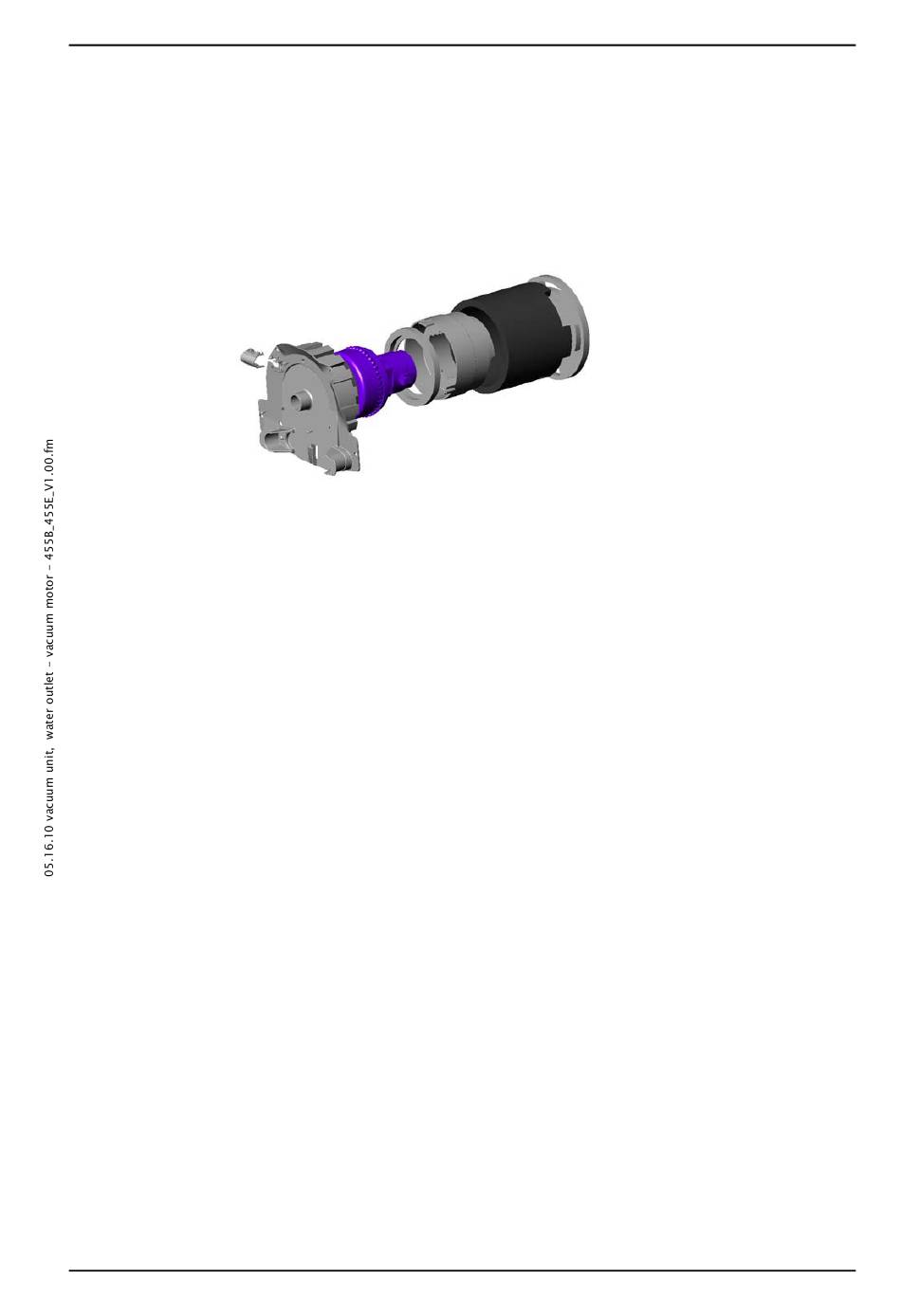

Picture 28: Vacuum unit detail
•
•
•
•
•
•
•
Remarks
Thread in the cable through the sound damping insulation (03/108).
5. March 2013
Copyright © 2013, Diversey Inc.
Mount the insulation and sealing parts of the vacuum motor.
Position the vacuum unit onto the cover and mount the 3 screws.
Connect the cable on the connection bloc.
Click in the cable cover.
Position the complete vacuum unit back in to the clear water
tank.
Mount the 5 screws from the cover, vacuum unit.
Connect the two flexible hoses onto the tank cover.
