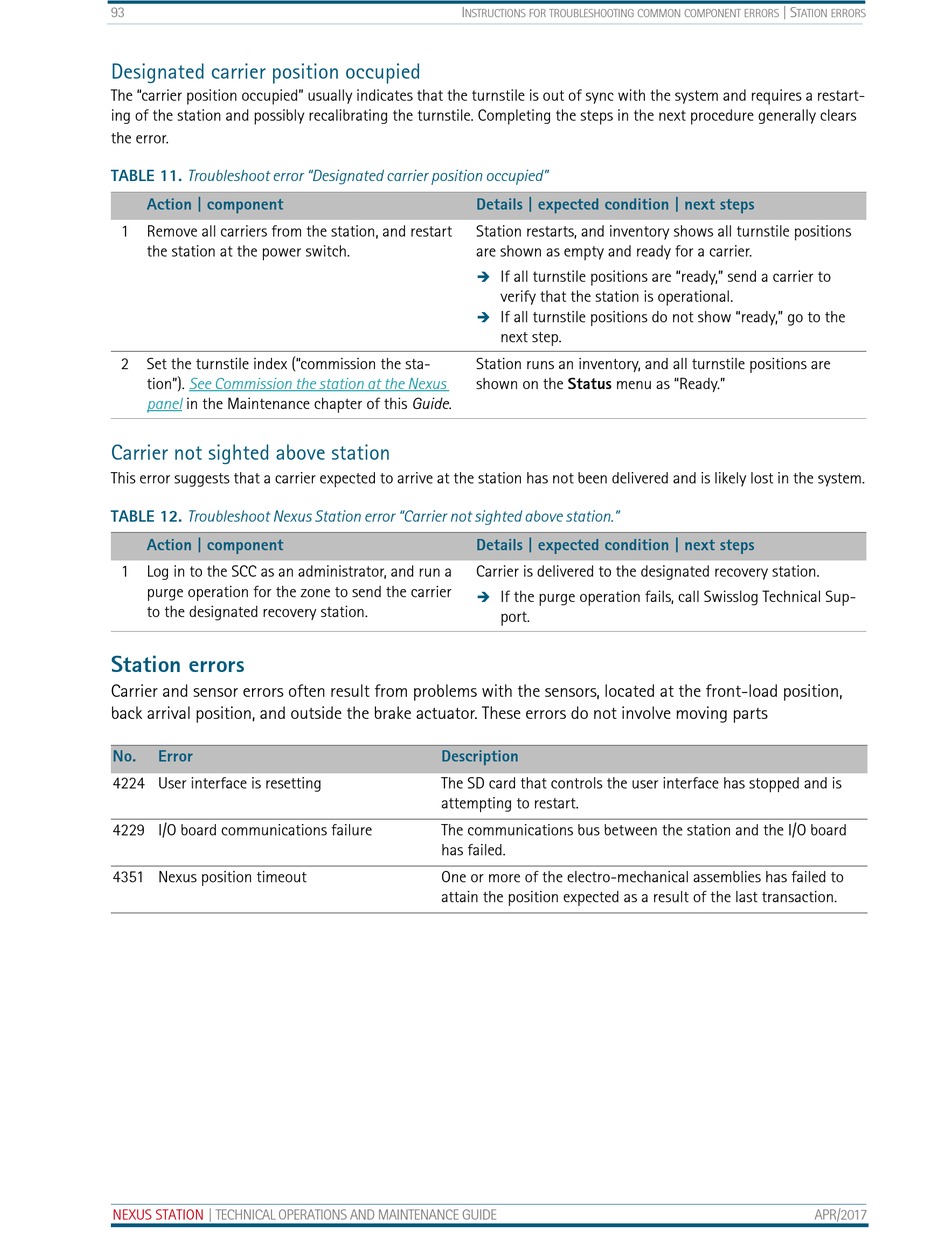

93
Designated carrier position occupied
The "carrier position occupied" usually indicates that the turnstile is out of sync with the system and requires a restart-
ing of the station and possibly recalibrating the turnstile. Completing the steps in the next procedure generally clears
the error.
TABLE 11. Troubleshoot error "Designated carrier position occupied"
Action | component
1 Remove all carriers from the station, and restart
the station at the power switch.
2 Set the turnstile index ("commission the sta-
tion"). See Commission the station at the Nexus
panel in the Maintenance chapter of this Guide.
Carrier not sighted above station
This error suggests that a carrier expected to arrive at the station has not been delivered and is likely lost in the system.
TABLE 12. Troubleshoot Nexus Station error "Carrier not sighted above station."
Action | component
1 Log in to the SCC as an administrator, and run a
purge operation for the zone to send the carrier
to the designated recovery station.

Station errors

Carrier and sensor errors often result from problems with the sensors, located at the front-load position,
back arrival position, and outside the brake actuator. These errors do not involve moving parts
No. Error
4224 User interface is resetting
4229 I/O board communications failure
4351 Nexus position timeout
NEXUS STATION | TECHNICAL OPERATIONS AND MAINTENANCE GUIDE
I
NSTRUCTIONS FOR TROUBLESHOOTING COMMON COMPONENT ERRORS
Details | expected condition | next steps
Station restarts, and inventory shows all turnstile positions
are shown as empty and ready for a carrier.

If all turnstile positions are "ready," send a carrier to
verify that the station is operational.
 If all turnstile positions do not show "ready," go to the
next step.
Station runs an inventory, and all turnstile positions are
shown on the Status menu as "Ready."
Details | expected condition | next steps
Carrier is delivered to the designated recovery station.
 If the purge operation fails, call Swisslog Technical Sup-
port.
Description
The SD card that controls the user interface has stopped and is
attempting to restart.
The communications bus between the station and the I/O board
has failed.
One or more of the electro-mechanical assemblies has failed to
attain the position expected as a result of the last transaction.
| S
TATION ERRORS
APR/2017
