Push actuator assembly

The push actuator rests beneath the core assembly toward the back of the station. Controlled by a motor
and a rack-and-pinion gear, it moves up to slow down incoming carriers as they enter the station. It also
pushes outgoing carriers toward the station pipe on dispatch.
TABLE 5. Push actuator assembly and parts
Part Number Description
56743201 Push actuator assembly

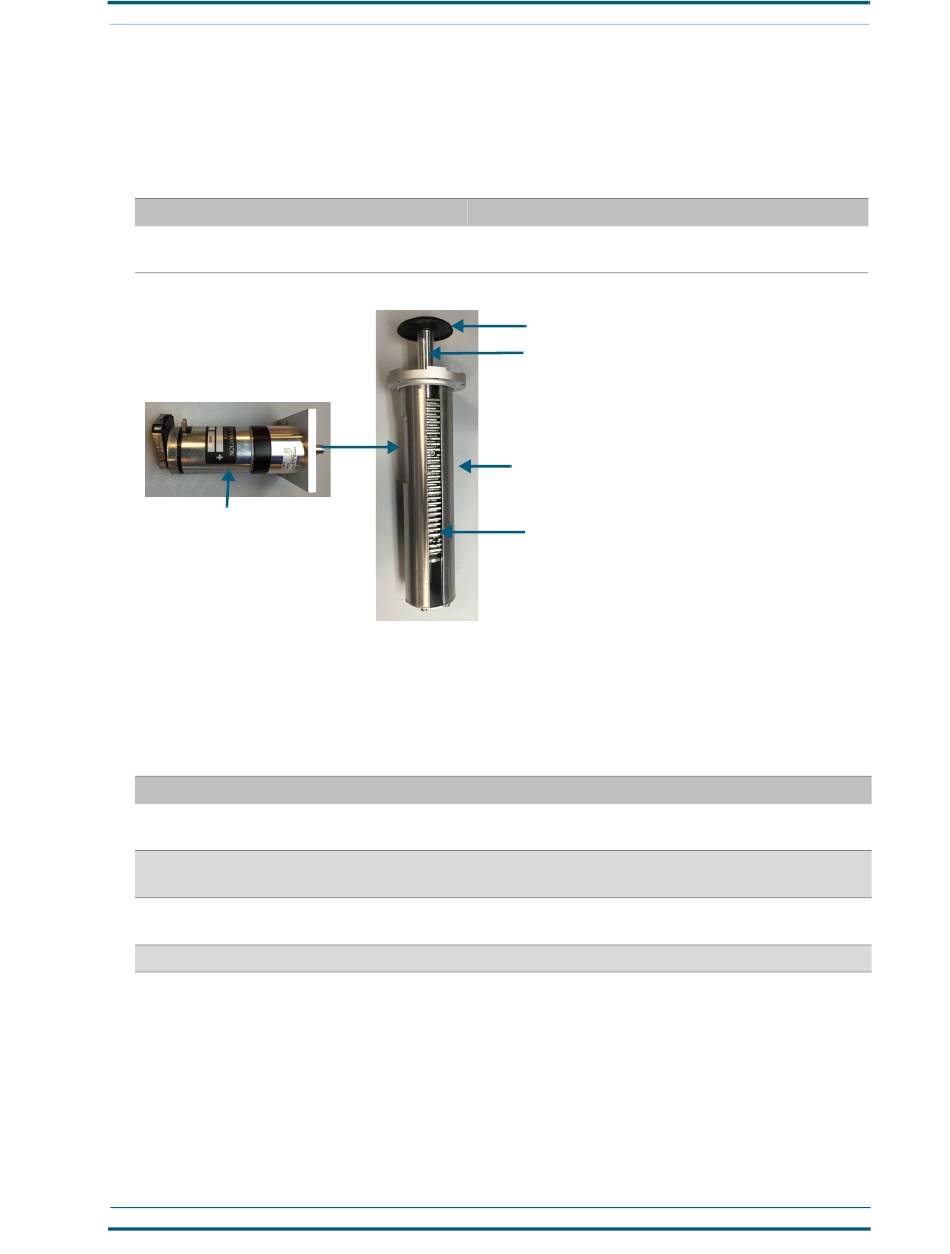

Nexus Station push actuator assembly
Motor; attached to the
side of the pusher

Coupler tube motor assembly (brake actuator)

The coupler tube assembly connects the valve pipe to the incoming pipe from the tube system. It contains a
motor and ribbon wrapped around the pipe that work together to slow the descent of carriers into the sta-
tion from the tube system.
TABLE 6. Coupler tube motor assembly and parts (brake actuator)
Part Number Description
56756201 Actuated coupler tube assembly
56758901 Nylon strap
56757601 Belt-loop sheet
90327701 Brake motor, 12-V (B026)
APR/2017
Recommended maintenance
Replace the full mechanical assembly on failure of a
mechanical part; replace the motor separately upon failure.
Rubber bumper cap
Pusher spring pin
Pusher slide tube
Pusher rack
Recommended maintenance
Replace motor at failure; replace parts of the
assembly when necessary
Check the position of the strap at regular intervals,
and replace when necessary
Check the position and wear at regular intervals,
and replace when necessary
Replace upon failure
