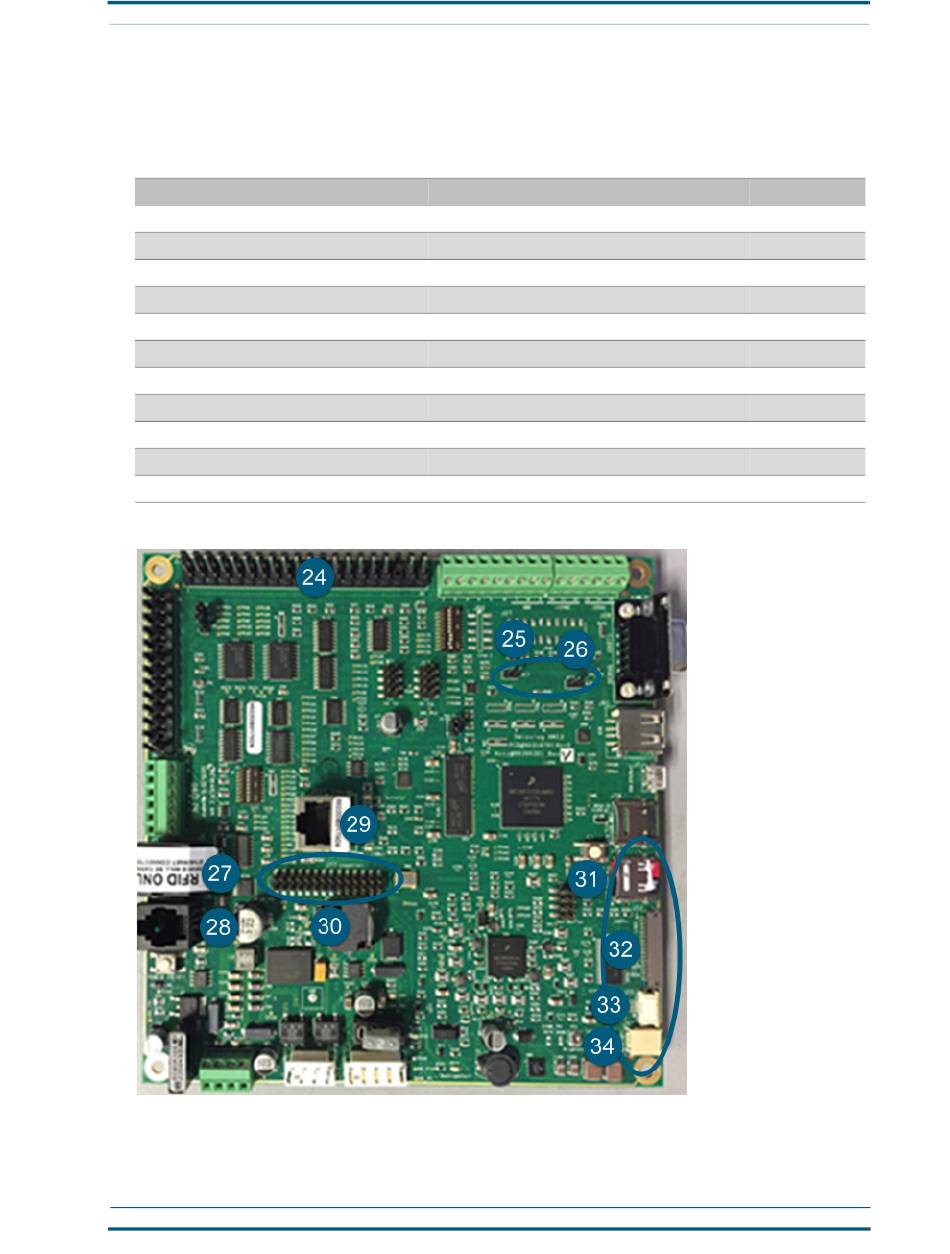

HMI assembly control board

The HMI control board is mounted at the center of the primary circuit board. Many of the pin and cable con-
nections available on the board are not used for the Nexus Station. The ones that are used are listed next.
TABLE 2. HMI assembly control board
Ref. Board # Label
24 J3 (Not labeled)
25 J47 (Not labeled)
26 J48 (Not labeled)
27 J4 UART2-RFID
28 J5 UART3-DI
29 J117 Ethernet
30 J77 (expansion)
31 J79 Micro-SD-MMC3
32 J22 (Not labeled)
33 J25 (Not labeled)
34 J57 (Not labeled)
HMI assembly control board
APR/2017
Controls the .
Power to the badge reader (pin 17 only)
LCD panel connection
Touch screen connection
RFID reader cable
Badge reader cable
Ethernet cable
Connection back to the main control board
SD card boot files
LVDS connection to the display
Touch-screen panel
Display back-light
