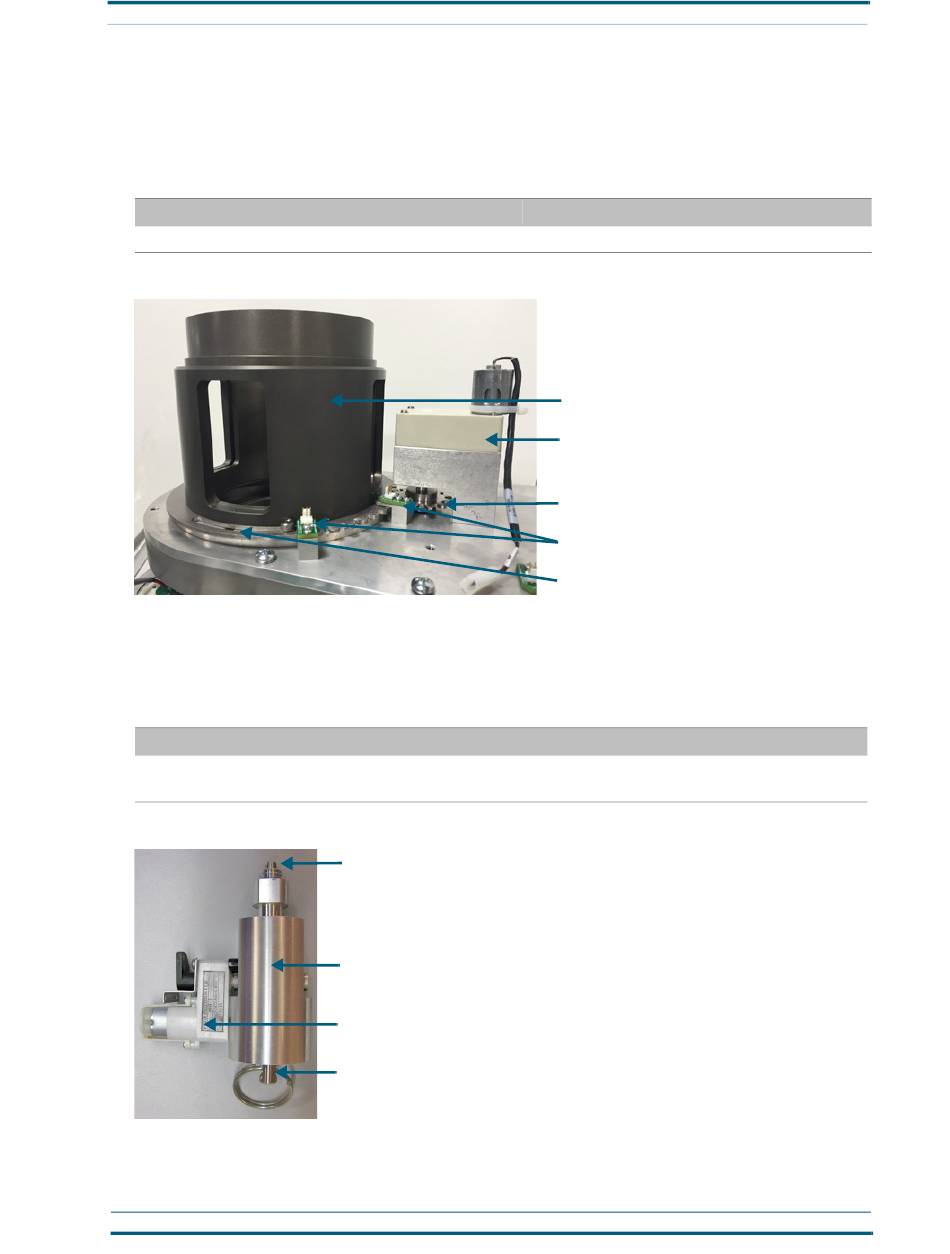

Rotary air valve assembly and motor

The rotary air valve assembly and motor constitute part of the slide-gate assembly and motor arm. The
assembly is housed within a rectangular air manifold that must be removed from above the air-valve and
slide-plate assembly piece at the top of the core assembly for maintenance.
TABLE 3. Air-valve assembly and motor parts
Part No. Description
56741001 Valve actuator assembly (full)
Nexus Station valve assembly and motor

Pin actuator assembly

The pin actuator contains a motor and pin assembly that engages holes in three-degree increments around
the base turnstile plate to stop the turnstile when it is in the correct position.
TABLE 4. Pin actuator assembly and parts
Part Number Description
56751601 Pin actuator full assembly
Nexus Station pin actuator assembly
NEXUS STATION | TECHNICAL OPERATIONS AND MAINTENANCE GUIDE
Recommended maintenance
Replace the full mechanical assembly upon failure of a
mechanical part.
Pin
Cam shaft
Motor
Pin actuator top
M | R
ECHANICAL PARTS OTARY AIR VALVE ASSEMBLY AND MOTOR
Recommended maintenance
Replace upon failure
Valve assembly (includes inner and outer tubes)
Motor
Collar gear
Position sensors
Collar flange
APR/2017
