Signal diodes
Locations of the signal diodes for the primary Nexus Station components are shown in the next illustration.
Use this illustration to locate the diodes that will help you determine whether a communications signal is
traveling between the circuit board and the affected component. The diodes work in pairs, usually to indi-
cate position and/or movement of the component, such as open/closed, up/down, left/right, locked/
unlocked, clockwise/counter-clockwise. The individual component sections provide more detail

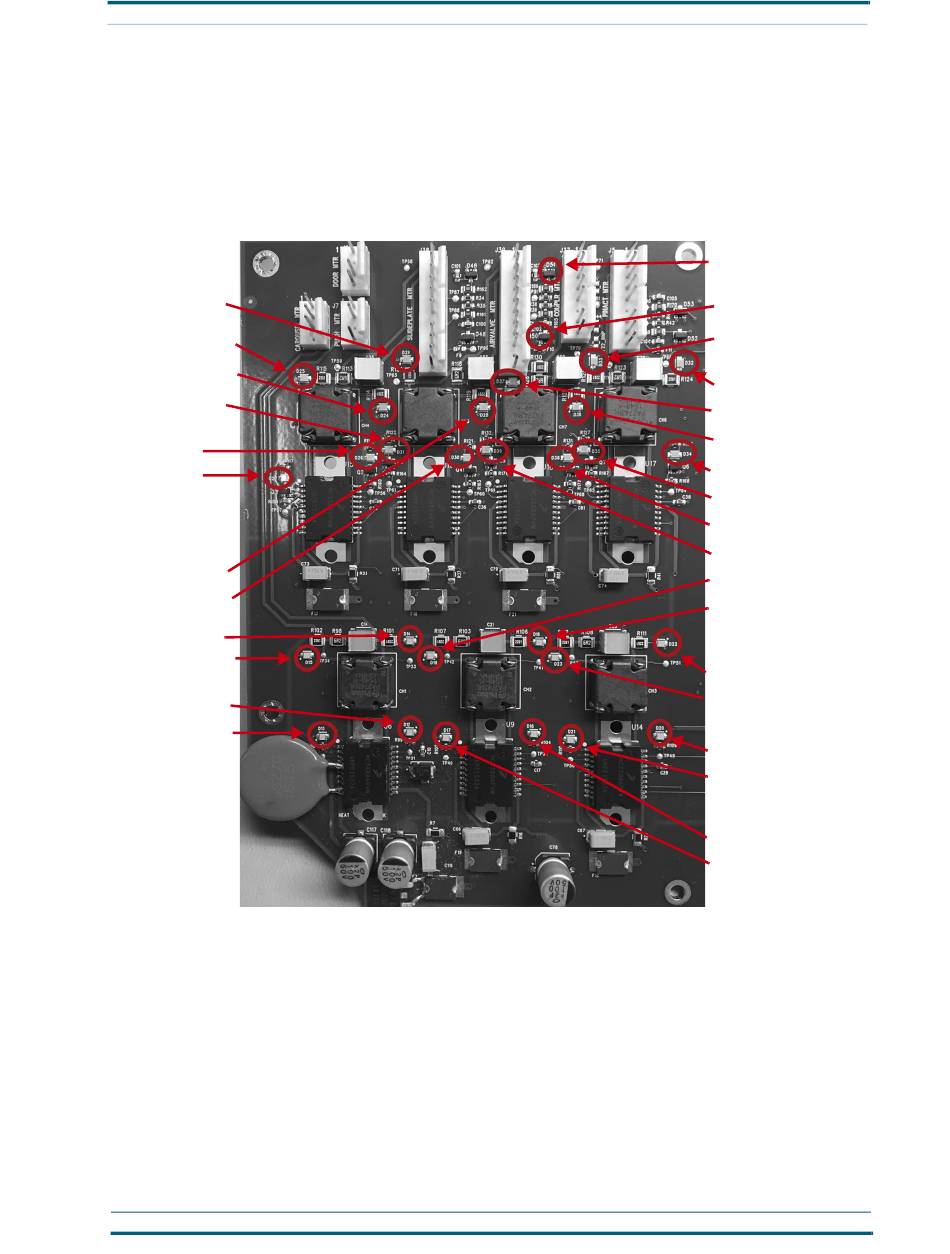

Locations of signal LEDs on the main circuit board for the Nexus Station
D29
Air valve motor
D25
Slide plate motor
D24
Slide plate motor
D31
Air valve signal
D26
Slide plate
D27
Slide plate
D28
Air valve motor
D30
Air valve signal
D14
Pin act. motor
D15
Pin act. motor
D12
Push act. signal
D13
Push act. signal
NEXUS STATION | TECHNICAL OPERATIONS AND MAINTENANCE GUIDE
S N
EQUENCE FOR TROUBLESHOOTING EXUS
S | R
TATION COMPONENT ERRORS EFERENCE DIAGRAMS
D51
Air valve e-o-t closed
D50
Air valve e-o-t, open
D33
Pin actuator motor
D32
Pin actuator motor
D37
Brake actuator
D36
Brake actuator
D34
Pin actuator locked
D35
Pin actuator unlocked
D38
Brake actuator
D39
Brake actuator
D19
Turnstile act. motor
D18
Turnstile act. motor
D22
Security door actuator
D23
Security door actuator
D20
Security door actuator
D21
Security door actuator
D16
Turnstile act. signal
D17
Turnstile act. signal
