Station design

The mechanical and electrical components are the same for a both new installation and a retrofit. Several
mechanical drawings shown next illustrate the components from the front, back, and top of the station.

Nexus Station front view

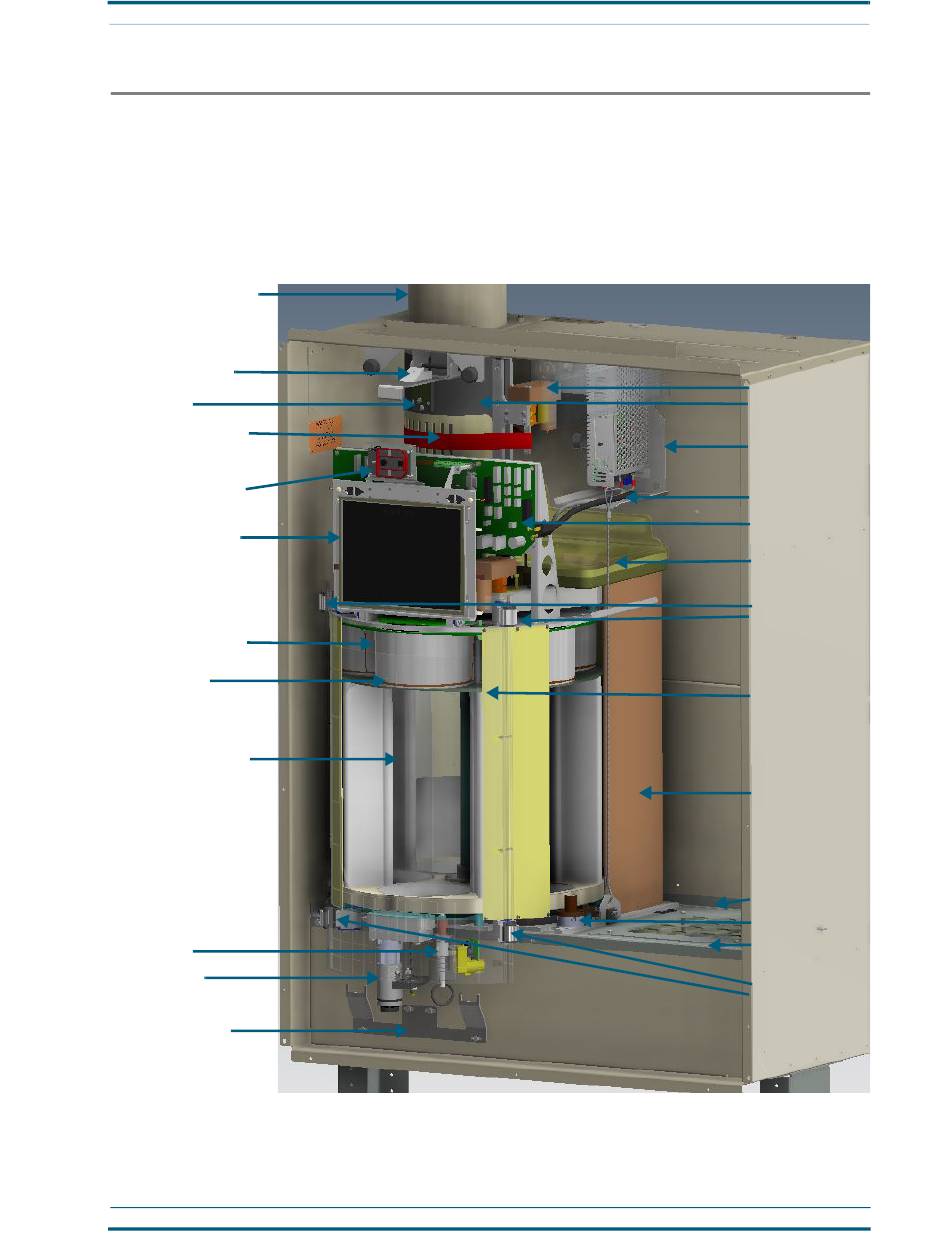

The next mechanical drawing shows the front of the station, without the outer doors. The security door has
been made transparent to show the mechanics and turnstile assembly more clearly.
Primary components and their functions within the station are described following the illustrations.
Incoming/outgoing pipe
Upper door bracket
Tube sensor
Brake actuator strap and
collar
WhoTube security card
reader
Touch-screen display
panel
Compartment tube en-
closures
RFID antennae
Turnstile compartment
Pin actuator
Door actuator
Lower door bracket
FIGURE 3. Nexus Station front view
APR/2017 TECHNICAL OPERATIONS AND MAINTENANCE GUIDE |
8
Brake actuator
Slide plate tube
Power supply
Lift cable
Main circuit
board
Slide plate cover
Security-door bear-
ings
Security door with
outer slide rods
Bypass air tube
Air filter
Turnstile motor
Base frame
Security-door bear-
ings
NEXUS STATION
