E | RFID
LECTRONIC COMPONENTS COMPONENTS
Nexus Station circuit boards

RFID components

Radio Frequency Identification (RFID) is used in the station to track and detect carriers. RFID-equipped car-
riers include RFID antennae for tracking throughout the pneumatic tube system. The Nexus Station is
equipped with an antenna at the top of each of the five carrier positions on the carousel. At the top, front of
the carousel assembly are two primary transformers that connect to the RFID reader board, which connects
to the main control board.

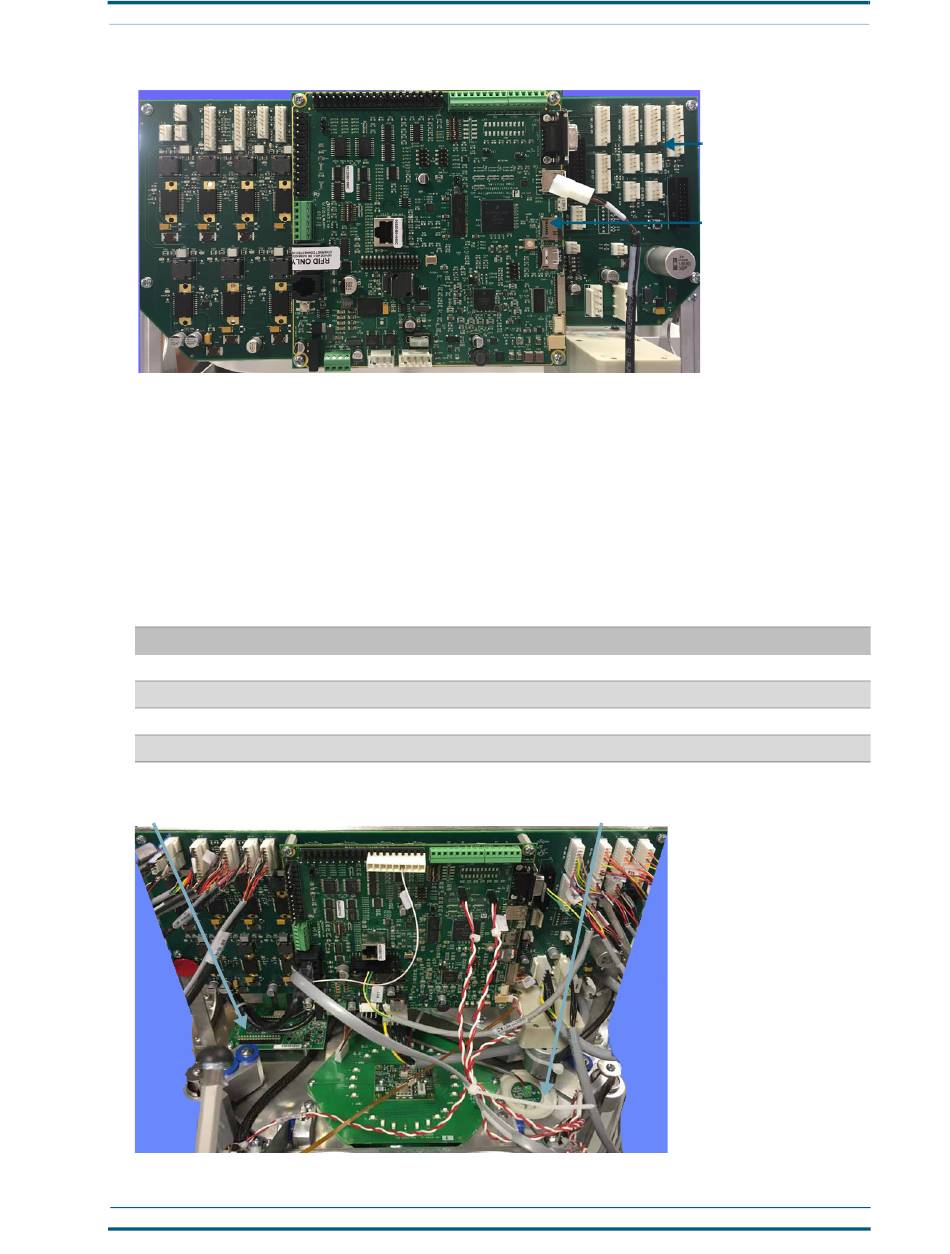

The first photo shows an overhead view of the electronic components at the top, front of the station.
with the RFID components highlighted. The second shows close-up views of the transponders and reader
board.
Part Number Description
86507601 Radio frequency PCB assembly, primary 1
86507602 Radio frequency PCB assembly, primary 2
86507603 Radio frequency assembly, secondary (antenna)
86372601 RFID reader PCB assembly
Nexus Station RFID components position
RFID reader board
APR/2017
Recommended maintenance
Replace when needed
Replace when needed
Replace when needed
Replace when needed
RFID primary transponder
TECHNICAL OPERATIONS AND MAINTENANCE GUIDE |
28
Main circuit board (Interface
PCB assembly)
Display (HMI 3) circuit board
NEXUS STATION
