Swisslog Nexus Technical Operations And Maintenance Manual page 75

69
3

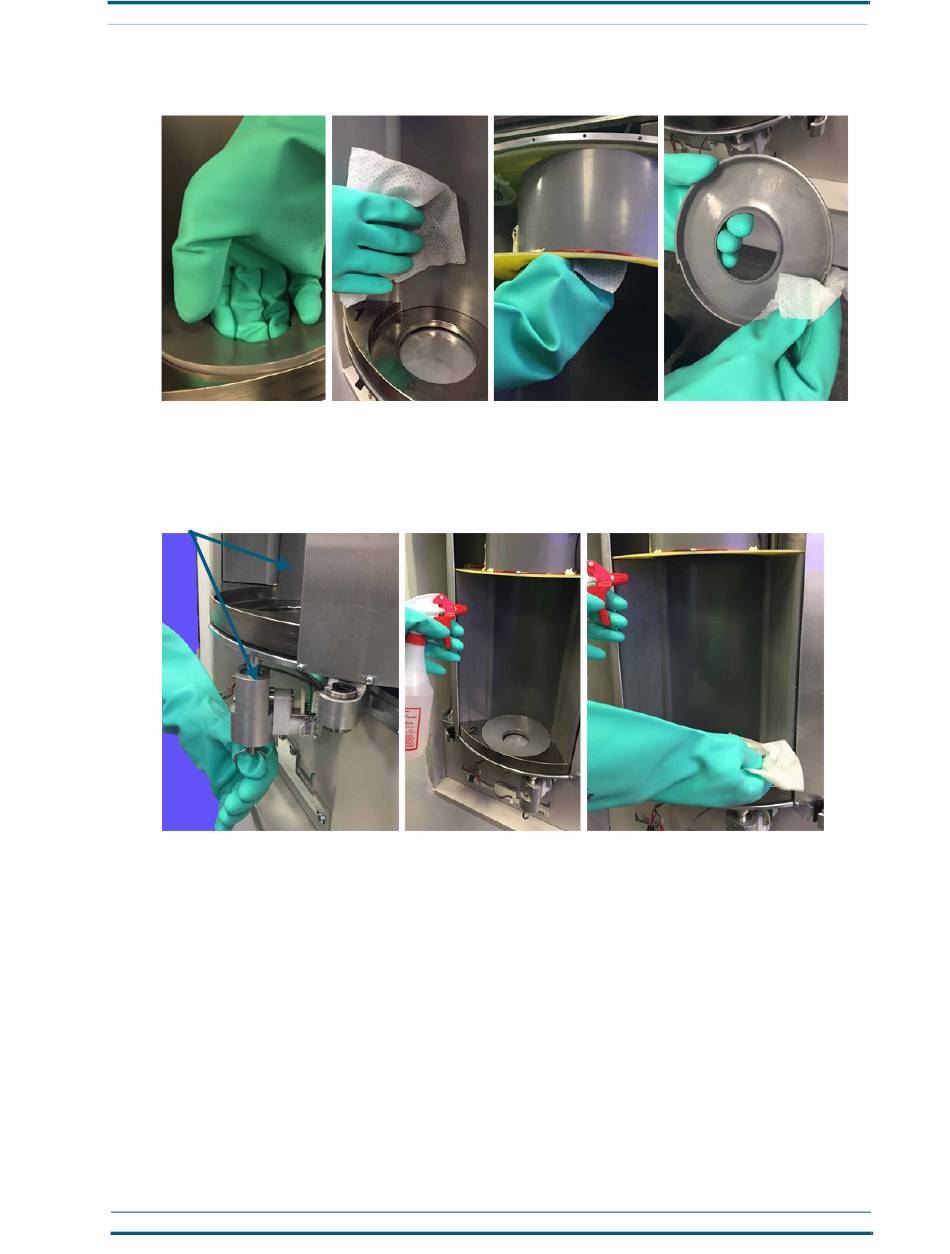

Remove the plastic covering in the lower compartment by grasping it from the center and pulling
upward. If necessary, you can gently lift up on the side panel, as shown, to make removal easier.
4
To manually move the turnstile assembly, pull down on the pin-actuator ring to disengage the pin.
Then, with the pin disengaged, push the compartment panel to the right or left to bring an adjacent
compartment to the front position. Then thoroughly clean the top, sides, and bottom of each of the
five compartments in the same way you cleaned the first compartment.
Pull the pin-ring, and push the compartment to the right to bring the next one forward
Lower station and security door
For a smaller spill or leak, you can reach through the filter opening to wipe down the lower portion of the
station, including the push-rod.
1
Wipe down the inside and outside sides of the security door.
NEXUS STATION | TECHNICAL OPERATIONS AND MAINTENANCE GUIDE
C | C
LEANING PROCEDURES LEAN INSIDE THE STATION
APR/2017
