S
| N
S
TATION DESIGN
EXUS
TATION TOP ASSEMBLY
Nexus Station top assembly

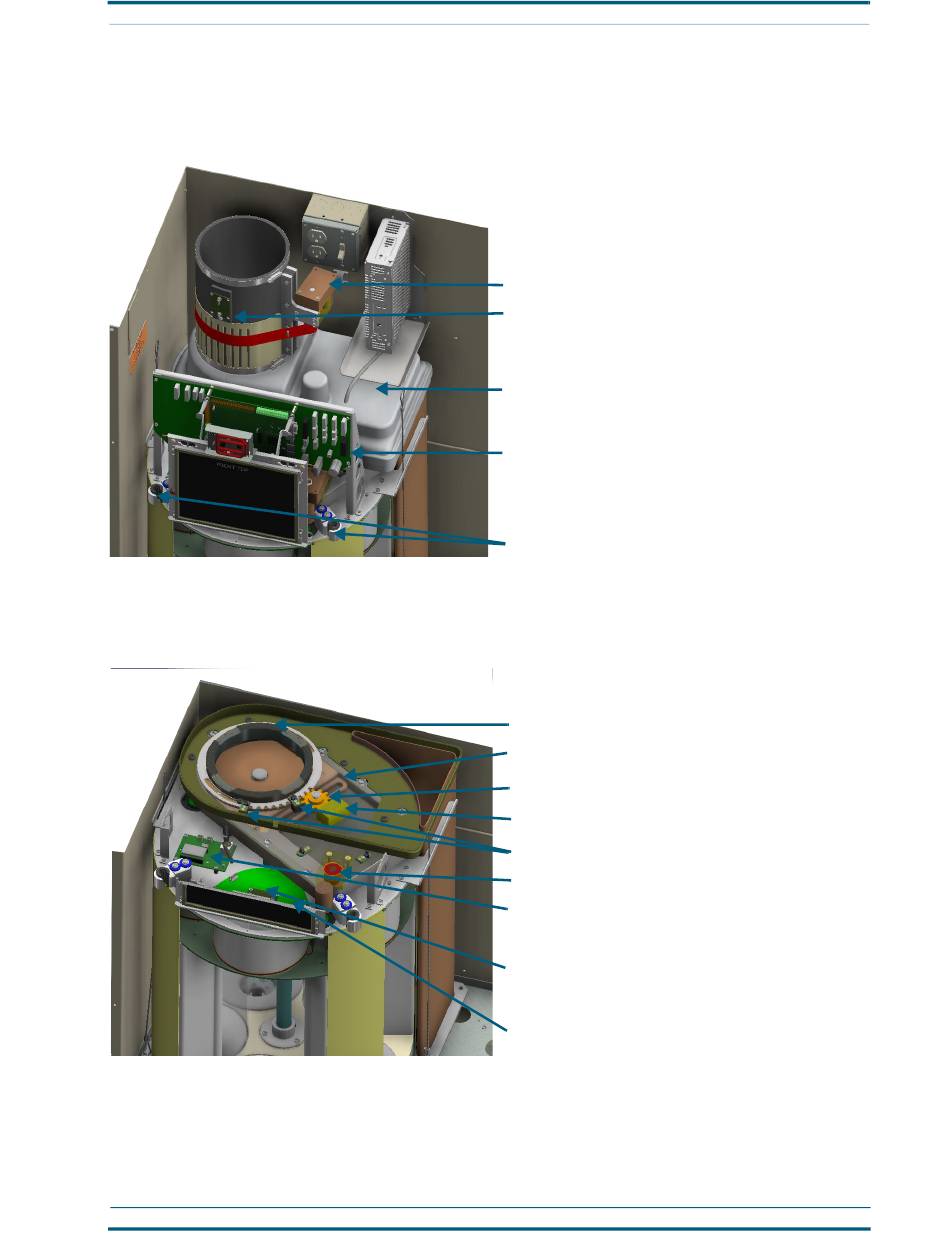

The next illustrations show the upper station, where the turnstile assembly attaches to the slide plate and
the station pipe. Most of the parts shown here have been marked in earlier drawings; this drawing shows a
more detailed view.
FIGURE 5. Nexus Station top assembly
Nexus Station top assembly cross-section
The cross-section view of the top assembly reveals the inner workings of the slide plate.
FIGURE 6. Nexus station top assembly cross-section
APR/2017
Brake actuator motor
Incoming-carrier sensor
Top air manifold
Circuit board (primary)
Security door bearings
Rotary air valve
Slide plate arm
Slide plate gear mechanism
Air-valve motor
Air-valve sensors
Slide plate motor
RFID reader board
Load and unload sensor at the center of the LED
control panel
LED control panel
TECHNICAL OPERATIONS AND MAINTENANCE GUIDE |
10
NEXUS STATION
