NSTRUCTIONS FOR TROUBLESHOOTING COMMON COMPONENT ERRORS

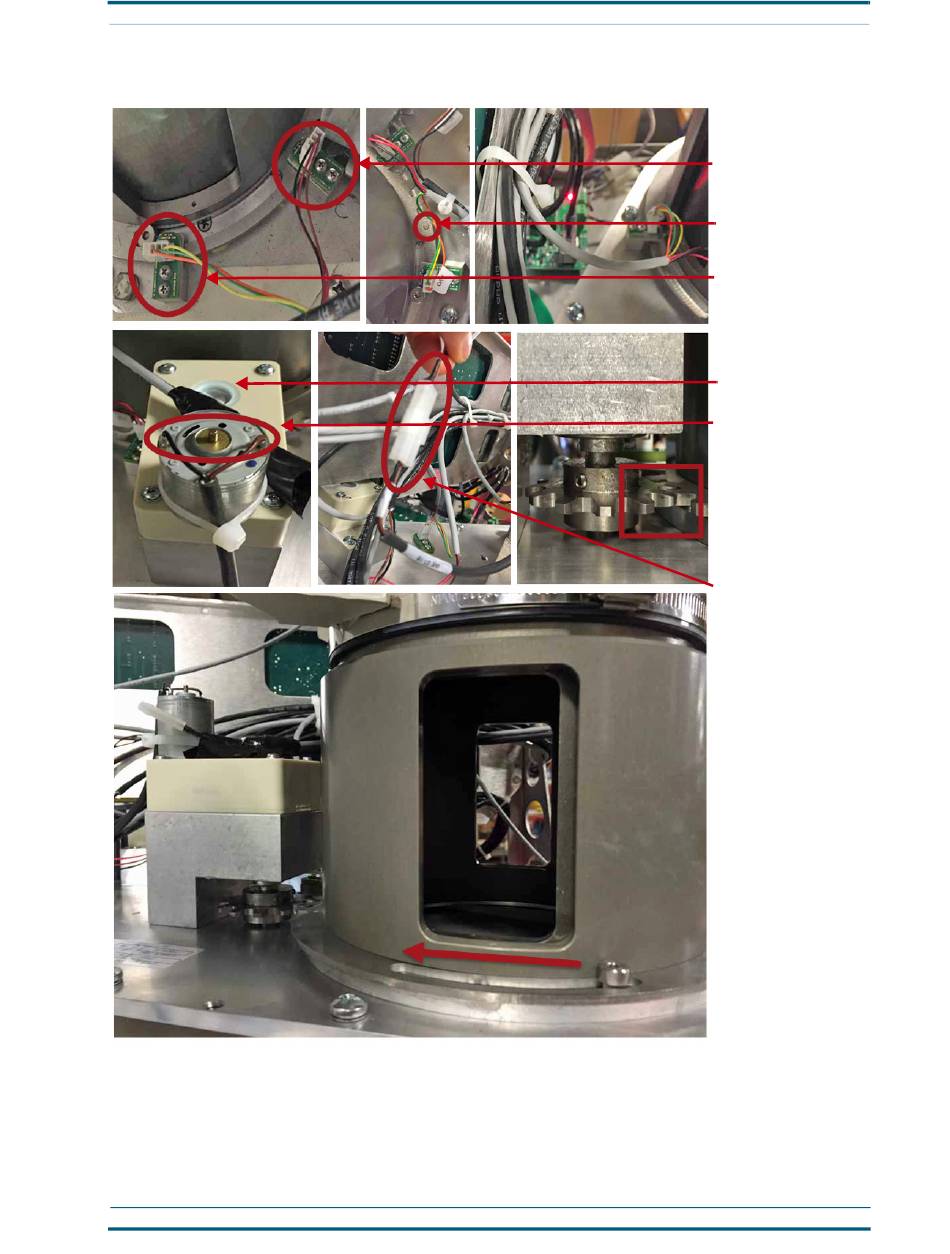

FIGURE 1. Troubleshoot Nexus Station-valve errors
APR/2017
| A
IR VALVE AND SLIDE PLATE ERRORS
TECHNICAL OPERATIONS AND MAINTENANCE GUIDE |
80
Air-valve closed (AVC) sensor
Air-valve sensor magnet;
triggers air-valve status as it
moves.
Air-valve open (AVO) sensor
Motor turning mechanism
Soldered wires at air-valve
motor
Proper gear alignment
Motor-cable connection
Manually rotate the inner
valve cylinder clockwise if it is
open, or counter-clockwise if
it is closed.
NEXUS STATION
