7
Turnstile and carrier compartments.

ments for holding carriers that are being dispatched from and received into the station. The turn-
stile moves either clockwise or counter-clockwise to accept and/or release carriers in the front
position and prepare carriers for dispatch at the back position that aligns with the station pipe.
 Security door.
carriers, the security door is controlled by a motor that moves it up to secure carriers in the front
position and down to allow users to remove secure carriers after presenting proper security cre-
dentials.

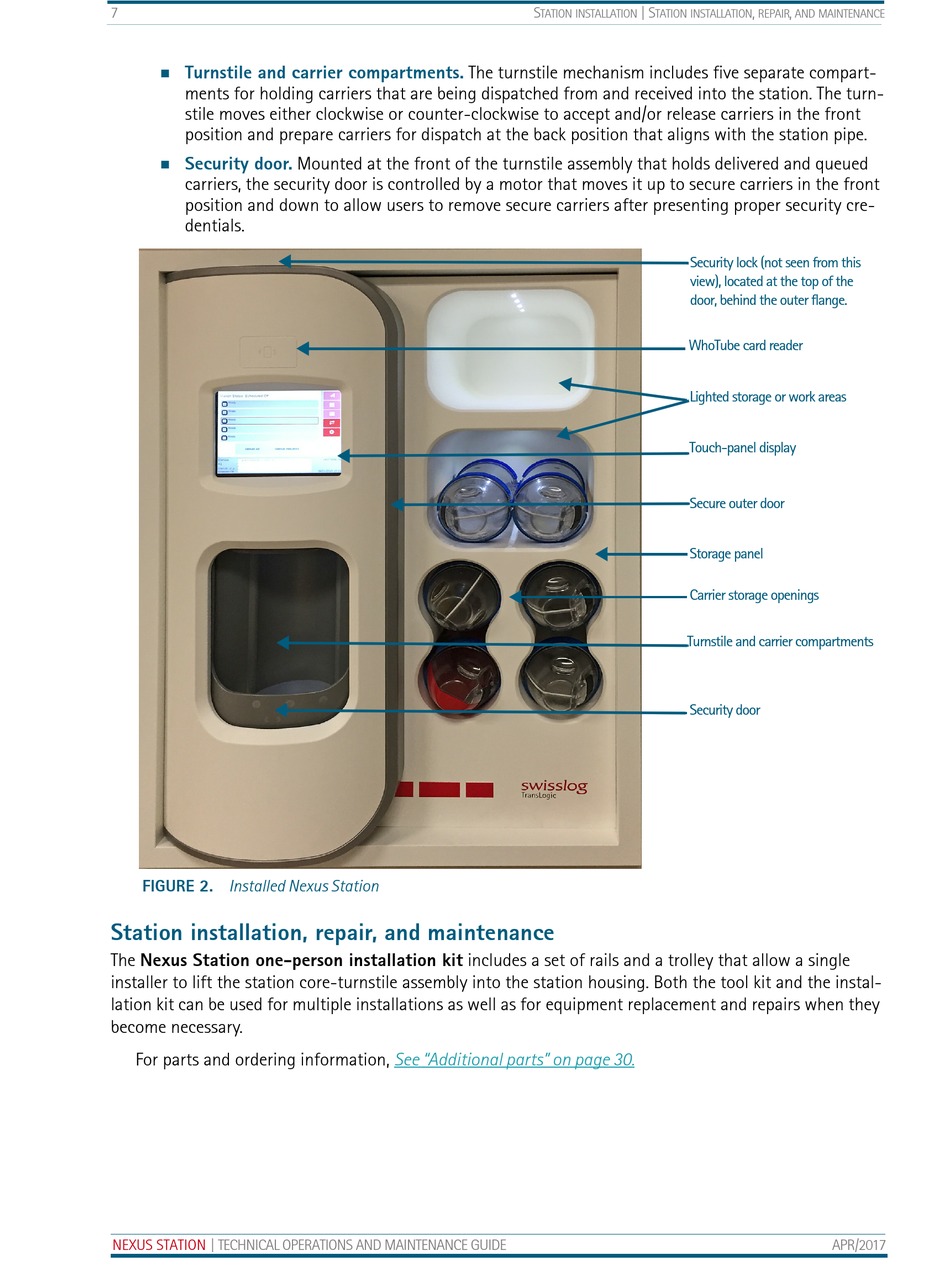

FIGURE 2. Installed Nexus Station

Station installation, repair, and maintenance

The Nexus Station one-person installation kit includes a set of rails and a trolley that allow a single
installer to lift the station core-turnstile assembly into the station housing. Both the tool kit and the instal-
lation kit can be used for multiple installations as well as for equipment replacement and repairs when they
become necessary.
For parts and ordering information,
NEXUS STATION | TECHNICAL OPERATIONS AND MAINTENANCE GUIDE
The turnstile mechanism includes five separate compart-
Mounted at the front of the turnstile assembly that holds delivered and queued
See "Additional parts" on page 30.
S | S
TATION INSTALLATION TATION INSTALLATION
Security lock (not seen from this
view), located at the top of the
door, behind the outer flange.
WhoTube card reader
Lighted storage or work areas
Touch-panel display
Secure outer door
Storage panel
Carrier storage openings
Turnstile and carrier compartments
Security door
, ,
REPAIR AND MAINTENANCE
