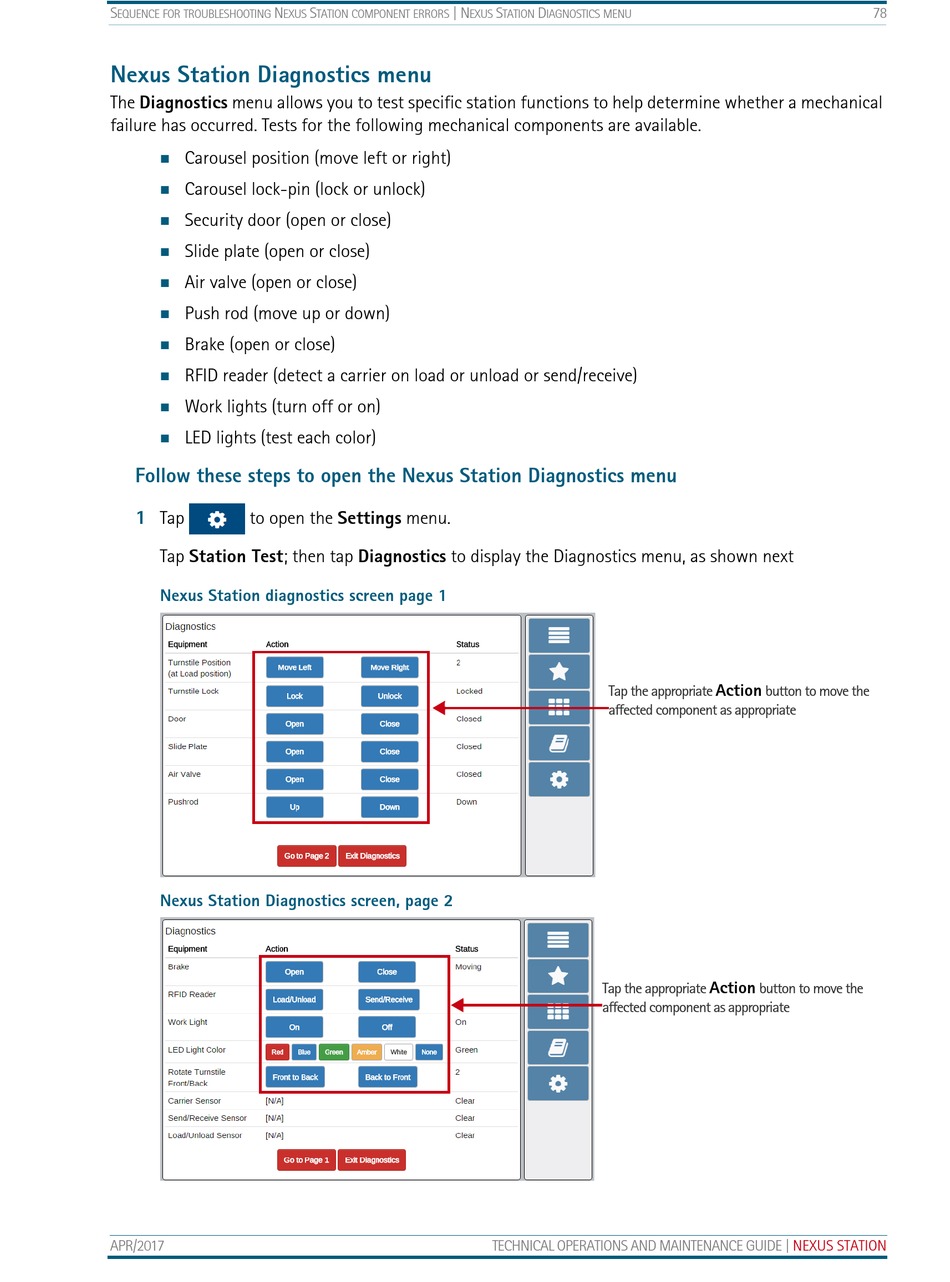

Nexus Station Diagnostics menu

The Diagnostics menu allows you to test specific station functions to help determine whether a mechanical
failure has occurred. Tests for the following mechanical components are available.
Carousel position (move left or right)

Carousel lock-pin (lock or unlock)

Security door (open or close)

Slide plate (open or close)

 Air valve (open or close)
Push rod (move up or down)

Brake (open or close)

 RFID reader (detect a carrier on load or unload or send/receive)
Work lights (turn off or on)

LED lights (test each color)

Follow these steps to open the Nexus Station Diagnostics menu
1
Tap to open the Settings menu.
Tap Station Test; then tap Diagnostics to display the Diagnostics menu, as shown next
Nexus Station diagnostics screen page 1
Nexus Station Diagnostics screen, page 2
APR/2017
S | N
TATION COMPONENT ERRORS EXUS
TECHNICAL OPERATIONS AND MAINTENANCE GUIDE |
S D
TATION IAGNOSTICS MENU
Tap the appropriate
affected component as appropriate
Tap the appropriate
affected component as appropriate
78
Action
button to move the
Action
button to move the
