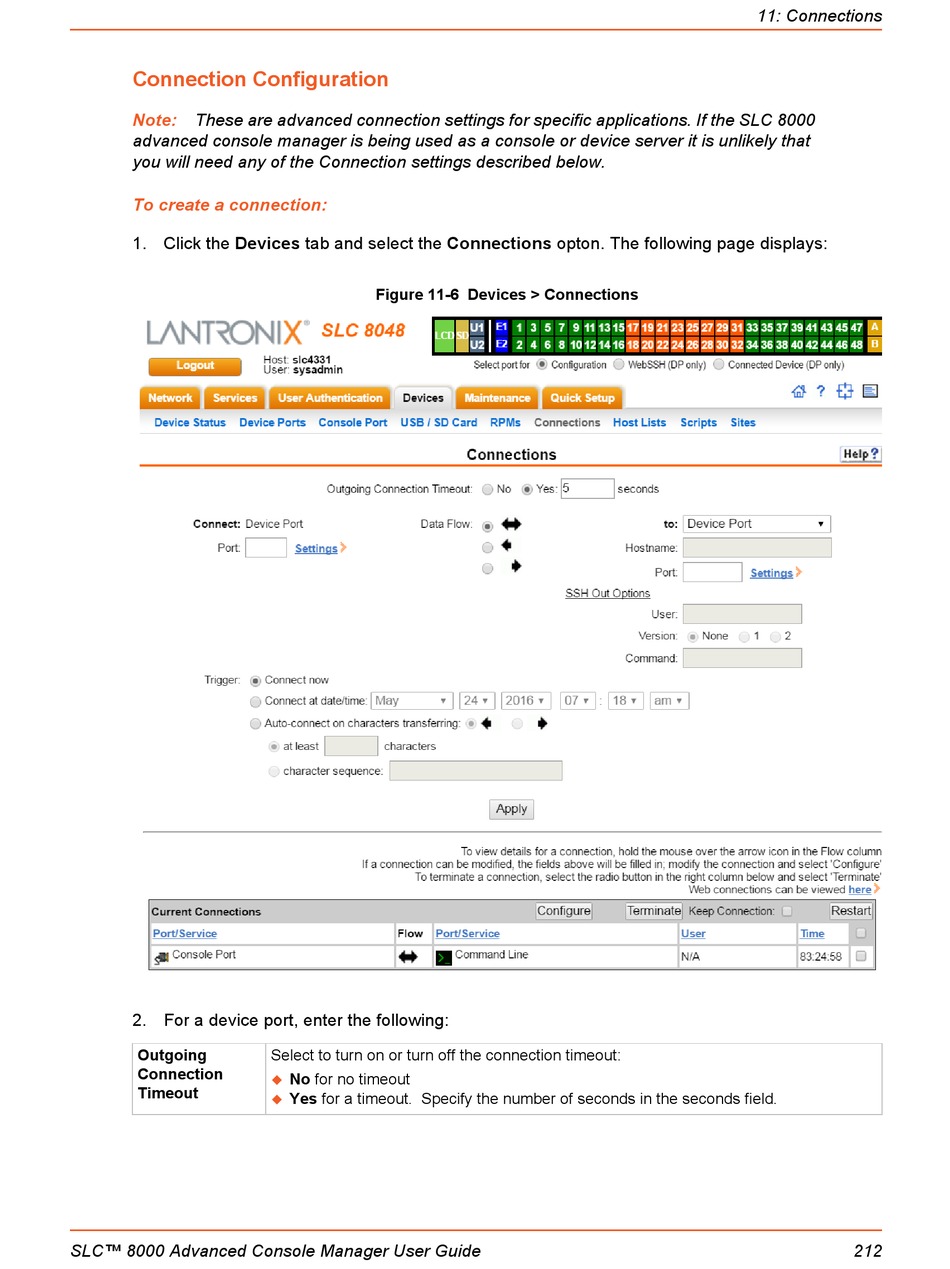

Connection Configuration; Figure 11-6 Devices > Connections - Lantronix SLC 8000 User Manual

Connection Configuration

Note: These are advanced connection settings for specific applications. If the SLC 8000
advanced console manager is being used as a console or device server it is unlikely that
you will need any of the Connection settings described below.
To create a connection:
1. Click the Devices tab and select the Connections opton. The following page displays:
2. For a device port, enter the following:
Outgoing
Connection
Timeout
SLC™ 8000 Advanced Console Manager User Guide
Figure 11-6 Devices > Connections
Select to turn on or turn off the connection timeout:
No for no timeout

Yes for a timeout. Specify the number of seconds in the seconds field.

11: Connections
212
