Connection Configuration

To create a connection:
1. Click the Devices tab and select the Connections opton. The following page displays:
2. For a device port, enter the following:
Outgoing
Connection
Timeout
Port
Data Flow
SLC™ 8000 Advanced Console Manager User Guide

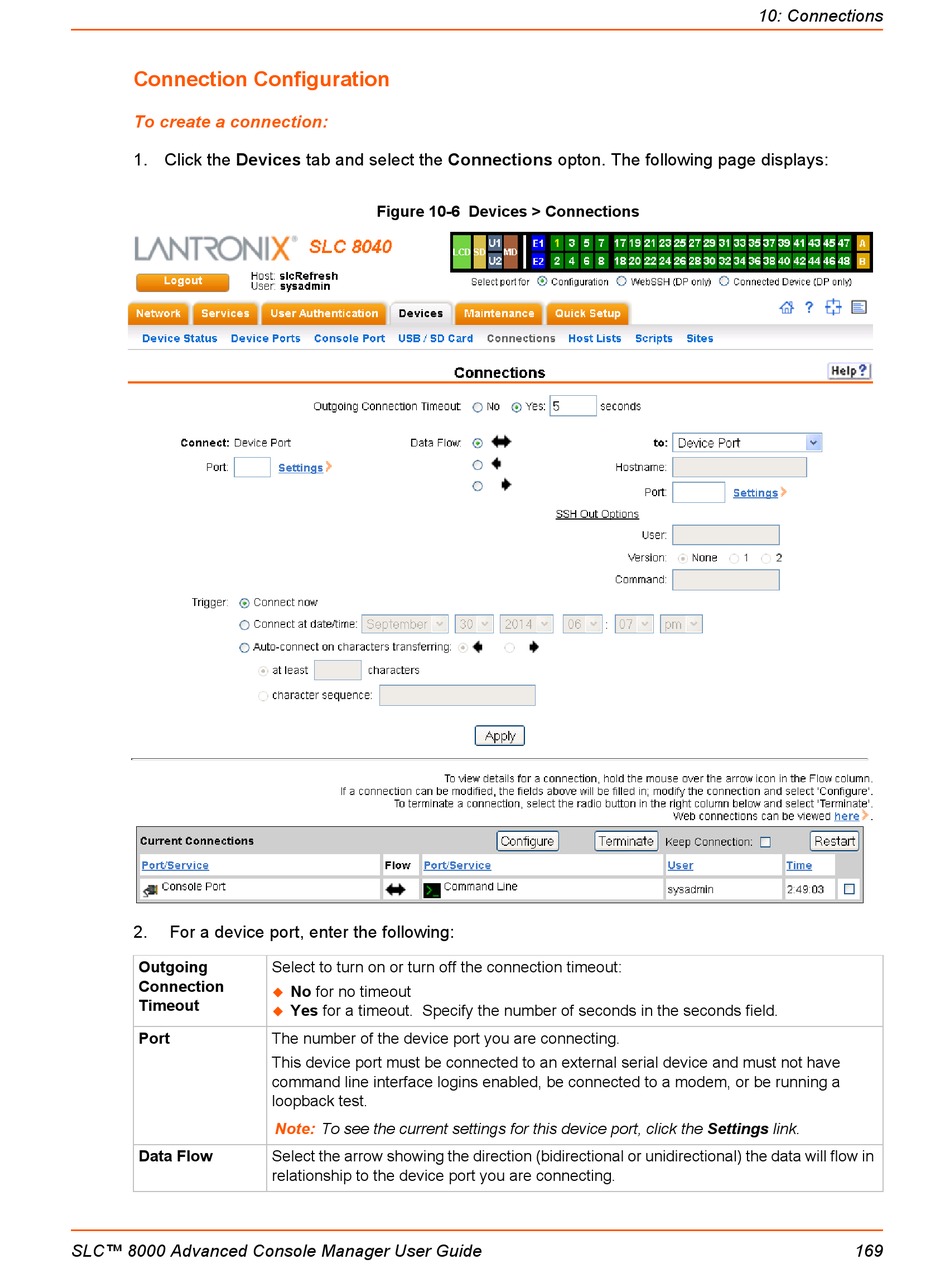

Figure 10-6 Devices > Connections
Select to turn on or turn off the connection timeout:
No for no timeout

Yes for a timeout. Specify the number of seconds in the seconds field.

The number of the device port you are connecting.
This device port must be connected to an external serial device and must not have
command line interface logins enabled, be connected to a modem, or be running a
loopback test.
Note: To see the current settings for this device port, click the Settings link.
Select the arrow showing the direction (bidirectional or unidirectional) the data will flow in
relationship to the device port you are connecting.
